. MONACOR PLL sender - ATS-80T .

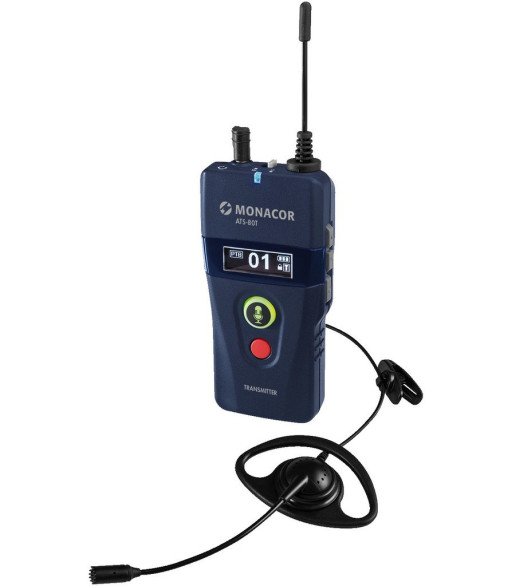

MONACOR PLL sender - ATS-80T
search
  • MONACOR PLL sender - ATS-80T

MONACOR PLL sender - ATS-80T

1.399,00 kr.
Inkl. moms

42-channel digital PLL voice transmission system, 823-832 MHz and 863-865 MHz

  • As a tour guide system also suitable for any other application in which a two-way communication is required, e.g. training sessions, lectures with questions and answers and group tours or factory tours
  • High resistance to interference due to digital transmission
  • High operating range
  • Frequency range optimised for voice transmissions
  • Interference-free parallel operation of up to 42 different channels possible


42-channel PLL transmitter,
for microphone operation and audio line signals.

  • 3 different operating modes: guiding, lecturing and discussions for versatile applications
  • Integrated microphone, adjustable gain
  • Supplied with additional earphone microphone
  • Audio line input via 3.5 mm stereo jack
  • High-contrast OLED display
  • Battery status indication
  • Priority assignment
  • Alarm function
  • Talk/mute button
  • Call button
  • Channel lock
  • Full-duplex communication
  • Attendance monitoring
  • Belt clip
  • Lanyard
  • Adjustable transmitting power (high: _ 20 mW/low: _ 10 mW)
  • Operating range: approx. 100 m
  • Power supply via 2 x 1.2 V NiMH rech. battery AA size (not supplied)
  • Dimensions: 47 x 97 x 35 mm
  • Weight: 53 g


There are restrictions or requirements within the EU!
Please read the notes regarding wireless systems in the section _IMPORTANT INFORMATION_!
Matching chargers ATS-85PS, ATS-850PS or charging case ATS-825C are available at option.

Antal
På fjernlager

Ref: ATS-80T

General information -
Description 42-channel digital PLL transmitter
Carrier frequency range 823-832 MHz, 863-865 MHz
Audio frequency range -
Channels -
THD -
Dynamic range -
RF S/N ratio -
Operating time -
Admiss. ambient temp. 0-40 °C
Power supply -
Dimensions -
Total weight -
Connections -
Specifications transmitter -
Transmitting power ? 20 mW/? 10 mW
Operating range 100 m
Power supply transmitter 2 x 1.2 V NiMH rech. batt. AA size
Width transmitter 47 mm
Height transmitter 97 mm
Depth transmitter 35 mm
Weight transmitter 53 g
Connections transmitter 3.5 mm jack (microphone/headset),

3.5 mm jack (line in)
Specifications receiver -
Audio signal receiver -
Power supply receiver -
Width receiver -
Height receiver -
Depth receiver -
Weight receiver -
Connections receiver -
ATS-80T
