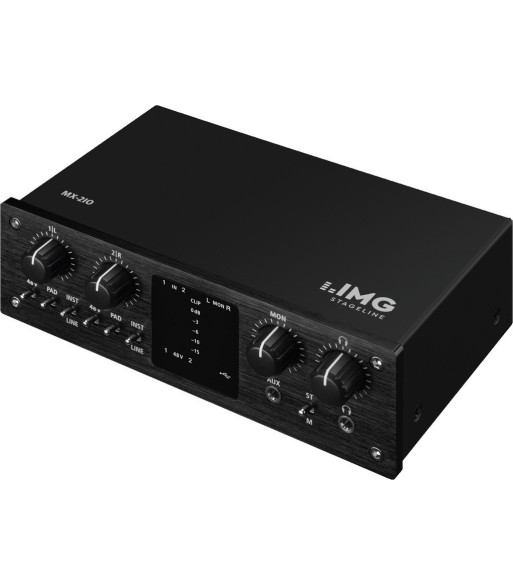

IMG STAGELINE USB audio interface 2 kanaler - MX-2IO

1.349,00 kr.
1.096,00 kr. Spar 253,00 kr.
Inkl. moms

2-channel USB recording interface

  • Integrated USB audio interface (will be identified and addressed as an external sound card)
  • Full-duplex USB port (allows for simultaneous recording and reproduction) for reproduction of digital audio data from a PC and for recording mixings onto a PC
  • 2 mono input channels with XLR input (mic) and 6.3 mm input (switchable mic/line)
  • Selectable 20 dB attenuation and LED level display
  • Input channels switchable mono/stereo
  • 1 additional stereo input
  • 1 x 6.3 mm jack output L/R
  • 1 x 3.5 mm jack stereo output
  • Adjustable headphone output
  • +48 V phantom power, can be activated as required for each channel
  • Stereo LED level display
  • Robust metal housing of compact size


delamar.de
_An easy-to-connect USB audio interface with two inputs and outputs each. Despite its compact size, the MX-2IO from IMG STAGELINE impresses with versatile input and output options. Any kind of microphone, instrument or audio player can be fed in and [...] be recorded. The LED chains for indicating the level of every path are quite unique in this class. Layout, haptics and neat workmanship are impressive. Last but not least, both the sound and output power of the headphone amplifier are absolutely perfect. Despite the missing monitor mixing option of the analogue input and DAW signals, it is a really neat little interface._
SOUNDCHECK 06/2019
_The small and compact box fits into any laptop backpack. In combination with suitable microphones, it thus provides a professional high-quality solution for mobile recording.
The highly flexible inputs and preamplifiers allow for general use, from weak microphone signals, instrument signals to strong line signals. This is particularly interesting for home recording.
Thanks to versatile features, good sound characteristics and a very attractive price, the MX-2IO is surely going to become a permanent companion for musicians and studio operators._

Antal
Sidste elementer på lager

Ref: MX-2IO

No. of channels 2
No. of inputs 5
Mic input 2.5 mV, 2 x 3-pole XLR
Line input 45 mV, 1 x 6.3 mm jack

11 k_ (line)/460 k_ (inst.)
CD input -
Phono input -
Tape (play) -
Aux input 1.25 V, 1 x 3.5 mm jack
Insert input -
Effect return -
Master output 500 mV, 2 x 6.3 mm jack L/R
Record output -
Monitor output -
Booth output -
Aux output 500 mV, 1 x 3.5 mm jack
Insert output -
Effect send -
Control room -
Tape (rec) -
Headphones ? 16 _, 1 x 3.5 mm jack
Gooseneck lamp -
WiFi -
USB yes
Bluetooth -
Frequency range 20-20,000 Hz
THD ? 0.03%
S/N ratio -
Crosstalk 92 dB
Equalizer bass -
Equalizer midrange -
Equalizer treble -
equalizer -
Talkover -
Phantom power +48 V
Crossfader -
Media player -
Amplifier -
Power supply via USB interface

DC 5 V/500 mA
Mains voltage -
Mains frequency -
Power consumption, operation -
Operating voltage (possible alternative) DC 5 V
Power supply (possible alternative) 500 mA
Admiss. ambient temp. 0-40 °C
Width 160 mm
Height 50 mm
Depth 110 mm
Rack spaces, RS -
Weight 634 g
IMG STAGELINE
MX-2IO
