MONACOR Transportabel højtt. - TXA-820

7.969,00 kr.
Inkl. moms

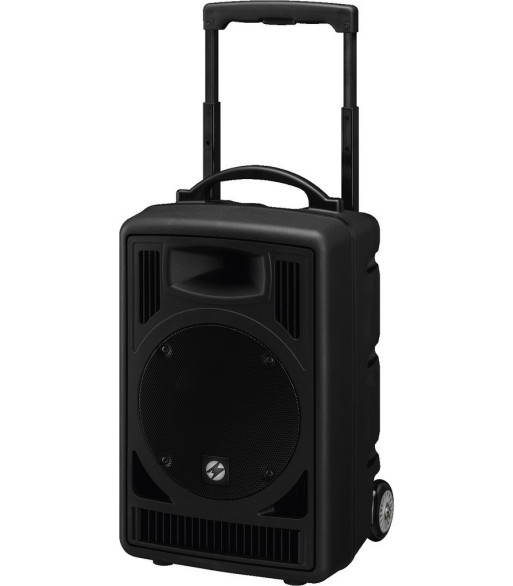

Portable amplifier system,
with integrated 1-channel multifrequency receiver unit with UHF PLL technology and Bluetooth receiver.

  • Operation via mains connection or built-in rechargeable lead gel battery 2 x 12 V/4.5 Ah (operating time: up to 5 hours), integrated automatic battery charging with charging status indication, discharge protection
  • For mobile applications, e.g. sales events, lectures
  • 16 selectable UHF frequencies (863-865 MHz) with diversity system
  • Efficient 2-way speaker system

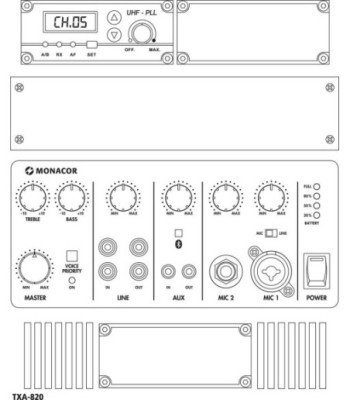

  • 1 microphone input via comb. jack (XLR/6.3 mm), 1 microphone input (6.3 mm jack), 1 stereo line input (RCA), 1 aux input (3.5 mm jack), each input can be adjusted
  • Common master control, 2-way tone control
  • 1 stereo line output (RCA), 1 aux output (3.5 mm jack)
  • Switchable microphone priority circuit
  • Due to an extractable telescopic handle and 2 castors, the amplifier system can easily be pulled like a trolley
  • Stand sleeve



Licence-free in the EU.
Matching microphone transmitters or pocket transmitters are available at option, e.g. TXA-800HSE, TXA-800HT or ATS-12HT.

Antal
På fjernlager

Ref: TXA-820

Rated power (PRMS) 50 W
Peak output power 80 W
Frequency range 70-17,000 Hz
Carrier frequency 863-865 MHz
Operating range ? 30 m
Inputs 6 mV (mic),

300 mV (line)
Link optional (TXA-820MT)
THD -
Max. SPL 114 dB
Equalizer, bass ±10 dB/100 Hz
Equalizer, midrange -
Equalizer, treble ±10 dB/10 kHz
Power supply _ 230 V/50 Hz/130 VA,

rech. battery 2 x 12 V/4.5 Ah
Admiss. ambient temp. 0-40 °C
Dimensions 305 x 510 x 265 mm
Weight 14.5 kg
Connections 1 x XLR/6.3 mm jack (mic/line),

1 x 6.3 mm jack (mic)

1 x RCA L/R (line out),

1 x 3.5 mm jack (line out)
TXA-820
