MONACOR 100V/8 Ohm HiFi-højttaler - EDL-42HQ

559,00 kr.
Inkl. moms

Hi-fi wall and ceiling speaker, 15 W

  • 100 V line technique or 8 _ operation
  • Power taps: 100 V (8/4/2/1 W)
  • 2-way version with coaxial dome tweeter
  • 10 cm (4") bass speaker with waveguide and 20 mm (3/4") silk dome
  • Pivoting tweeter via ball joint
  • Excellent sound characteristics
  • Supplied with 2 stylish protective metal grilles for an individual look
  • Protective grille to be magnetically attached
  • For a wall thickness/ceiling thickness from 8 to 30 mm

Antal
På fjernlager

Ref: EDL-42HQ

Impedance (Z) 8 _
Transmission method 100 V or low-impedance
Frequency range 70-20,000 Hz
Resonant frequency (fs) 70 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating (RMS) 15 W (8 _)

8/4/2/1 W (100 V)
Peak music power output (MAX) 30 W
Sensitivity 85 dB/W/m
Max. rated SPL 96 dB
Max. voltage -
Radiation angle, horizontal -
Radiation angle, vertical -
Suspension compl. (Cms) -
Moving mass (Mms) -
Mech. Q factor (Qms) -
Electr. Q factor (Qes) -
Total Q factor (Qts) -
Equivalent volume (Vas) -
DC resistance (Re) -
Force factor (BxL) -
Voice coil induct. (Le) -
Voice coil diameter -
Voice coil former -
Linear excursion (XMAX) -
Eff. cone area (Sd) -
Magnet weight -
Magnet diameter -

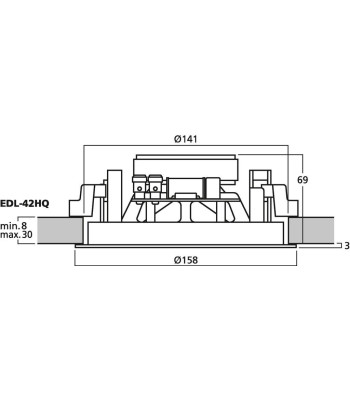

Mounting cutout Ø 141 mm
Mounting depth 69 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions Ø 158 mm x 72 mm
Outside diameter Ø 158 mm
Width Ø 158 mm
Height -
Depth 72 mm
Protective class -
Admiss. ambient temp. 0-40 °C
Weight 0.930 kg
Packing unit 1
Type of speaker 100
EDL-42HQ
