MONACOR 100V forstærker 1x120W - PA-812DAP

3.659,00 kr.
Inkl. moms

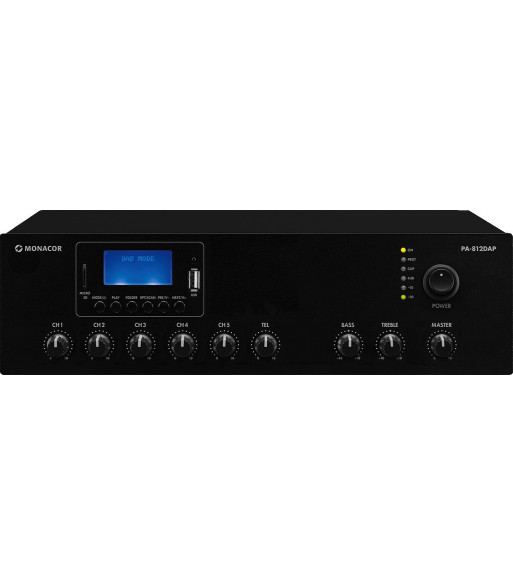

Mono class D PA mixing amplifier,
with integrated MP3 player, FM/DAB+ tuner and Bluetooth.
  • 1 x 120 W
  • Class D concept with high efficiency to cut energy costs
  • Silent operation due to fanless cooling concept
  • Bluetooth version 4.2
  • MP3 player with USB/SD interface, FM/DAB+ radio, LED display, infrared remote control
  • Reception of interference-free 'digital radio' (DAB+)
  • 1 balanced XLR microphone input with 48 V phantom power and priority selection for announcements
  • 2 unbalanced inputs, switchable mic/line
  • 2 unbalanced line inputs
  • 1 TEL input
  • 1 Music-On-Hold output (MOH)
  • Speaker outputs via screw terminals
  • Mute contact via screw terminals
  • 1 amp input
  • 1 preamp output
  • Input level control and output level control
  • 2-way tone control for the output
  • LEDs for indicating operation, clipping, protect and signal level

Antal
Sidste elementer på lager

Ref: PA-812DAP

Peak output power-
Power rating120 W
Power rating at 2 _-
Power rating at 4 _-
Power rating at 8 _-
Power rating at 16 _-
Power rating at 100 V-
Power rating with 4 _ bridged operation-
Power rating with 8 _ bridged operation-
Output impedance-
Channels1
Zones1
Inputs4.5 mV/600 _ (channel 1),

4.5 mV/120 mV (channels 2-3),

60 mV (channels 4-5)

90 mV (tel.)

Attenuation factor-
Frequency range60-15,000 Hz
Crossover network-
Crossover frequency-
Integrated limiter-
Equalizer bassyes
Equalizer midrange-
Equalizer trebleyes
S/N ratio72 dB (mic, channels 1-3)

85 dB (line, channels 2-5)

Crosstalk attenuation-
THD< 0.5%
Phantom power48 V
Mains voltage_ 230 V
Mains frequency50 Hz
Power consumption, operation250 VA
Power consumption, standby-
Standby current-
Operating voltage (possible alternative)DC 24 V
Power supply (possible alternative)8.4 A
Admiss. ambient temp.0-40 °C
Width320 mm
Height95 mm
Depth245 mm
Rack spaces, RS-
Weight5 kg

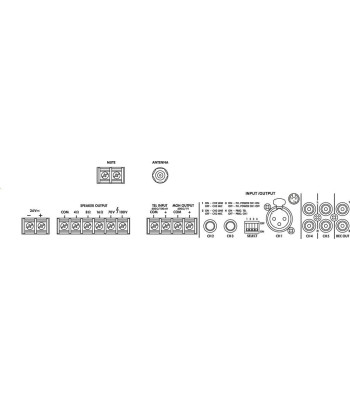

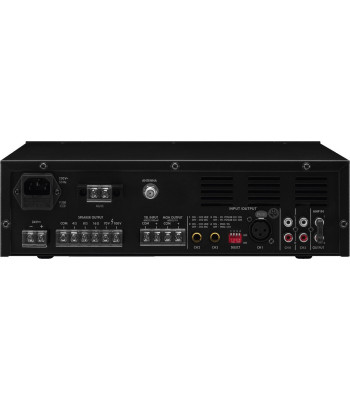

Connections1 x XLR (channel 1),

2 x 6.3 mm jack (channels 2-3)

2 x RCA L/R (channels 4-5),

1 x RCA (amp in),

1 x RCA (preamp out),

1 x F jack (FM/DAB+),

screw terminals (tel. input, MOH, DC 24 V, speakers, mute)

Packing dimensions (W x H x L)-
Gross weight5.6 kg
Net weight4.93 kg
PA-812DAP
1 Enhed

Specifikke referencer
