. CC Pro Shop DI-box - DIB-102 IMG STAGELINE .
DI-box - DIB-102 IMG STAGELINE
search
  • DI-box - DIB-102 IMG STAGELINE
  • DI-box - DIB-102 IMG STAGELINE

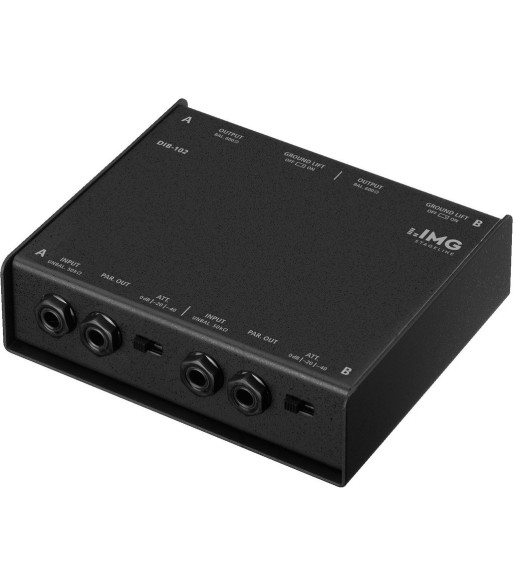

IMG STAGELINE DI-box - DIB-102

479,00 kr.
Inkl. moms

DI-boxe
Til optimal transmission af signaler fra musikinstrumenter til en mixer eller forstærker. Forstyrrelser, der skyldes tilpasningsproblemer, fx brum, undgås bedst ved brug af en transformerkobling. Indgang og udgang er her galvanisk adskilt.
Til line-enheder benyttes LTR serien!

2-kanals DI-box

  • Niveaukontrol (0/-20/-40 dB) for hver kanal
  • Ground lift for hver kanal
  • Feed-through udgang for hver kanal
  • Balanceret transformer
  • Robust metalkabinet

tools4music 06/2009 on the LSP-102, LC-31, FGA-102, FGA-202, DIB-102
"Recommendable and fit for on-the-road applications. An attractively priced little audio aid, perfect for the ever accompanying tool case."

tools4music 02/2010 "The DIB-102 from IMG Stage Line impresses by both the attractive price and the very stable housing. The frequency curve is exemplary."



Antal
På fjernlager

Ref: DIB-102

Type DI box
Frequency range 15-30,000 Hz, ±0 dB
Control range -
Control frequencies -
Input signal -
Input sensitivity -
Input impedance 50 k_
Output signal -
Output impedance 600 _, XLR
50 k_, jack
Gain -
Phantom power -
Compression -
Gate ratio -
Crossover frequency -
High-pass filter -
Low cut -
Transmission ratio 10:1
S/N ratio -
Channel separation -
THD -
Admiss. ambient temp. 0-40 °C
Power supply -
Dimensions 148 x 50 x 130 mm
Weight 800 g
Inputs 2 x 6.3 mm jack, unbal.
Outputs 2 x 6.3 mm jack, unbal.,
par. out

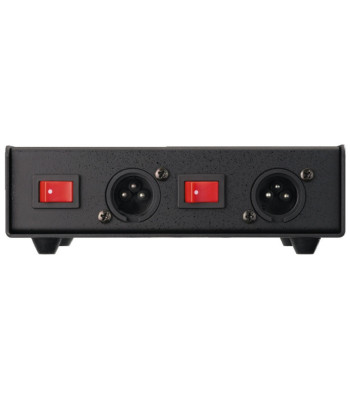

2 x XLR, bal.
Other features -
IMG STAGELINE
DIB-102

Specifikke referencer
