. CC Pro Shop DI-box - DIB-100 IMG STAGELINE .

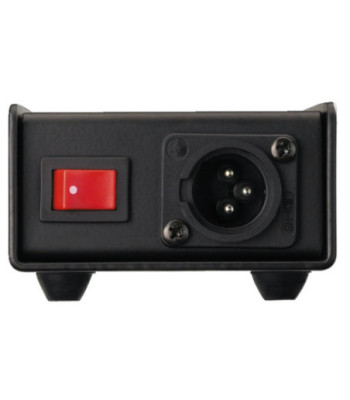

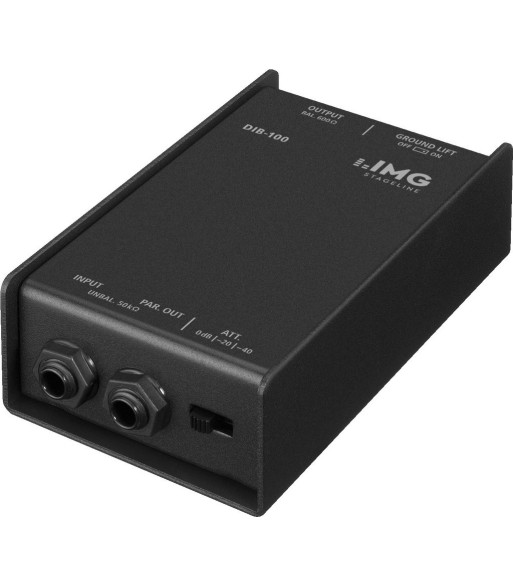

DI-box - DIB-100 IMG STAGELINE
search
  • DI-box - DIB-100 IMG STAGELINE
  • DI-box - DIB-100 IMG STAGELINE

IMG STAGELINE DI-box - DIB-100

299,00 kr.
Inkl. moms

DI-boxe
Til optimal transmission af signaler fra musikinstrumenter til en mixer eller forstærker. Forstyrrelser, der skyldes tilpasningsproblemer, fx brum, undgås bedst ved brug af en transformerkobling. Indgang og udgang er her galvanisk adskilt.
Til line-enheder benyttes LTR-serien!

DI-box

  • Niveaukontrol (0/-20/-40 dB)
  • Ground lift
  • Feed-through udgang
  • Balanceret transformer
  • Robust metalkabinet

PRODUCTION PARTNER 04/2013
"The measured values and workmanship give no reason for criticism. When considering the price, too, you cannot go wrong."



Antal
På fjernlager

Ref: DIB-100

Type DI box
Frequency range 15-30,000 Hz, ±0 dB
Control range -
Control frequencies -
Input signal -
Input sensitivity -
Input impedance 50 k_
Output signal 600 _, XLR
50 k_, jack
Output impedance 600 _ (bal.),
50 k_ (unbal.)
Gain 0/-20/-40 dB
Phantom power -
Compression -
Gate ratio -
Crossover frequency -
High-pass filter -
Low cut -
Transmission ratio 10:1
S/N ratio -
Channel separation -
THD -
Admiss. ambient temp. 0-40 °C
Power supply -
Dimensions 74 x 45 x 130 mm
Weight 560 g
Inputs 6.3 mm jack, unbal
Outputs 6.3 mm jack, unbal.,
par. out
XLR, bal.
Other features -
IMG STAGELINE
DIB-100

Specifikke referencer
