. CC Pro Shop Mini USB mixer - MPX-20USB IMG STAGELINE .
Mini USB mixer - MPX-20USB IMG STAGELINE
search
  • Mini USB mixer - MPX-20USB IMG STAGELINE
  • Mini USB mixer - MPX-20USB IMG STAGELINE

IMG STAGELINE Mini USB mixer - MPX-20USB

969,00 kr.
Inkl. moms

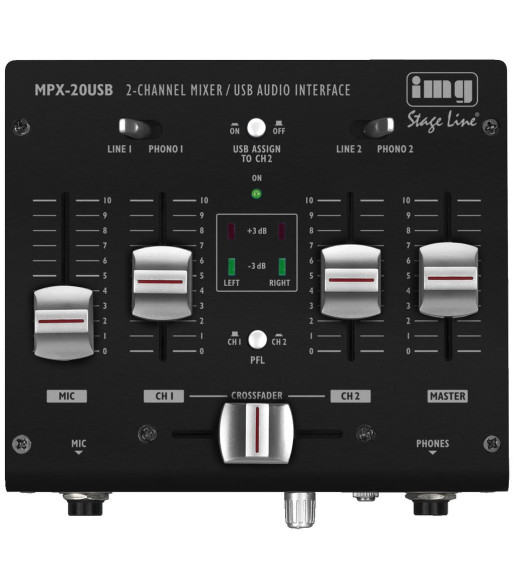

3-kanals stereo DJ mixer, med USB interface. Plug and mix!

  • Indbygget USB audio interface (identificeres og behandles som et eksternt lydkort)
  • Full duplex USB port (tillader samtidig optagelse og afspilning) til gengivelse af digitale lyddata fra en PC og til optagelse på en PC
  • 1 mikrofonindgang

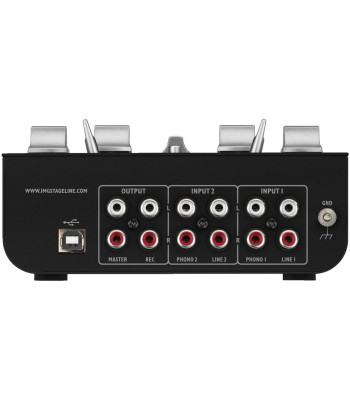

  • 2 stereoindgange, line/phono og USB/line/phono
  • 1 stereoudgang (master)
  • 1 stereo record udgang
  • Pre-fader listening (CUE) til stereoindgange via justerbar hovedtelefonudgang
  • Crossfader
  • LED level display
  • Robust og kompakt metalkabinet
  • Strømforsyning via USB interface eller strømforsyning med USB port

tools4music 04/2015
"Robust design, neat workmanship and great test results. The features of this unit certainly meet the requirements of practical applications."
delamar.de 11/2014
"The MPX-20USB from IMG Stage Line is a respectable mixer for two channels plus microphone which combines all the important features at a compact size. Great for DJs who concentrate on the essentials. Also suitable for anyone requiring a reliable second unit ... As a little bonus, there are in fact two headphone jacks. This space-saving mixer is able to crossfade two audio signals and well suited for home applications."



Antal
På fjernlager

Ref: MPX-20USB

No. of channels4
No. of inputs5
Mic input1 mV, 1 x 6.3 mm jack
Line input450 mV, 2 x RCA L/R
CD input-
Phono input9 mV, 2 x RCA L/R
Tape (play)-
Aux input-
Insert input-
Effect return-
Master output1 V, 1 x RCA L/R
Record output1 V, 1 x RCA L/R
Monitor output-
Booth output-
Aux output-
Insert output-
Effect send-
Control room-
Tape (rec)-
Headphones_ 8 _, 1 x 3.5 mm jack,
1 x 6.3 mm jack
Gooseneck lamp-
WiFi-
USByes
Frequency range20-20,000 Hz
THD0.1%
S/N ratio63 dB, unweighted
Crosstalk-
Equalizer bass-
Equalizer midrange-
Equalizer treble-
equalizer-
Talkover-
Phantom power-
Crossfaderyes
Media player-
Amplifier-
Power supplyDC current  5 V/500 mA
via USB interface
Mains voltage-
Mains frequency-
Power consumption, operation-
Operating voltage (possible alternative)DC current  5 V
Power supply (possible alternative)DC current  500 mA
Admiss. ambient temp.0-40 °C
Width150 mm
Height70 mm
Depth140 mm
Rack spaces, RS-
Weight700 g
IMG STAGELINE
MPX-20USB
