Mixer - MPX-4PA MONACOR
search
  • Mixer - MPX-4PA MONACOR
  • Mixer - MPX-4PA MONACOR

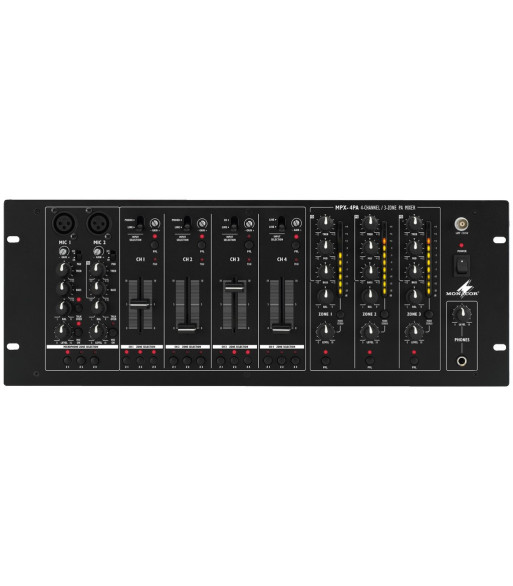

MONACOR Mixer - MPX-4PA

2.809,00 kr.
Inkl. moms

3-zone mixer

  • 3 zoner med mulighed for routing af alle indgange
  • XLR og RCA zoneudgange
  • 6 indgange (4 stereoindgange, 2 mikrofonindgange)
  • Mikrofonindgangene kan kun routes sammen
  • Forsænket gain for hver indgang
  • Mikrofonindgange, med 2-vejs tonekontrol, talkover og PAD omskifter
  • Stereoindgange 2 x phono/line og 2 x line/line
  • Zoneudgange, hver med 3-vejs equalizer, LED level display til stereo master, balance, pre-fader listening (PFL) og mono/stereo omskifter
  • Justerbar hovedtelefonudgang med pre-fader listening (PFL) til stereoindgange og zoneudgange
  • Tilslutning for svanehalslampe GNL-204 eller GNL-205



Antal
På fjernlager

Ref: MPX-4PA

No. of channels 6
No. of inputs 12
Mic input 1.5 mV, 2 x 6.3 mm jack
Line input 150 mV, 5 x RCA L/R
CD input 150 mV, 1 x RCA L/R
Phono input 3 mV, 2 x RCA L/R
Tape (play) -
Aux input -
Insert input -
Effect return -
Master output 1 V/600 _, 3 x 3-pole XLR L/R,
3 x RCA L/R
Record output -
Monitor output -
Booth output -
Aux output -
Insert output -
Effect send -
Control room -
Tape (rec) -
Headphones _ 8 _, 1 x 6.3 mm jack
Gooseneck lamp 12 V/5 W, 1 x BNC
WiFi -
USB -
Frequency range 20-20,000 Hz
THD 0.1%
S/N ratio 61 dB, unweighted
Crosstalk -
Equalizer bass +12 dB, -12 dB/50 Hz
Equalizer midrange +12 dB, -12 dB/1 kHz
Equalizer treble +12 dB, -12 dB/10 kHz
equalizer -
Talkover -16 dB
Phantom power -
Crossfader -
Media player -
Amplifier -
Power supply _ 230 V/50 Hz/20 VA
Mains voltage _ 230 V
Mains frequency 50 Hz
Power consumption, operation 20 VA
Operating voltage (possible alternative) -
Power supply (possible alternative) -
Admiss. ambient temp. 0-40 °C
Width 482 mm
Height 177 mm
Depth 105 mm
Rack spaces, RS 4
Weight 3.75 kg
MPX-4PA
