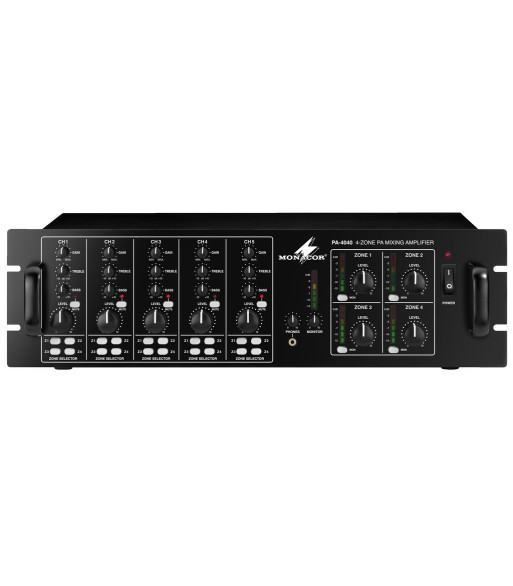

MONACOR 100V matrixforstærker 4x40Wrms - PA-4040

5.619,00 kr.
Inkl. moms

4-zoners mixerforstærker, mono, med professionelle funktioner til generel "multi-room" anvendelse.

  • 4 x 40 W, 100 V og 4 _/8 _
  • Perfekt udnyttelse af kapaciteten og god beskyttelse af de tilsluttede højttaler via integreret limiter
  • 3 kombinerede mikrofon-/line-indgange
  • 2 stereo line-indgange; phono
  • Alle indgange har gain, 2-vejs tonekontrol, mute-tast og zonevælger
  • Mikrofonindgange med +15 V phantom strømforsyning
  • Prioritet for kanal 1
  • Separat paging indgang, som kan routes til alle zoner
  • 4 zoneudgange, som kan justeres individuelt
  • Zone og monitor line-udgange til ekstra forstærkere eller optagere
  • Tilslutning for monitorhøjttalere
  • VU-meter for zone og monitor
  • Justerbar hovedtelefonudgang
  • Trinløs justerbar temperaturstyret blæser
  • 230 V

PROSOUND 02/2008
"You have to practice a very long time in order to cause an operating error. An absolutely useful unit available at a favourable price."



Antal
På fjernlager

Ref: PA-4040

Channels 5
Zones 4
Power rating 4 x 40 W
Power rating at 2 _ -
Power rating at 4 _ -
Power rating at 8 _ -
Power rating at 100 V -
Power rating with 4 _ bridged operation -
Power rating with 8 _ bridged operation -
Peak music power output (PMAX) 4 x 65 W
Output impedance -
Inputs 5 mV/4 k_, 100 mV/10 k_ (mic/line),
100 mV/30 k_ (line)
Attenuation factor -
Frequency range 50-17,000 Hz
Crossover network -
Crossover frequency -
Integrated limiter yes
Equalizer bass ± 10 dB/100 Hz
Equalizer midrange -
Equalizer treble ± 10 dB/10 kHz
S/N ratio > 65 dB (mic),
> 75 dB (line)
Crosstalk attenuation -
THD < 1%
Power supply _ 230 V/50 Hz/450 VA
Mains voltage _ 230 V
Mains frequency 50 Hz
Power consumption, operation 450 VA
Power consumption, standby -
Standby current -
Operating voltage (possible alternative) -
Power supply (possible alternative) -
Admiss. ambient temp. 0-40 °C
Dimensions 482 x 133 x 310 mm, 3 RS
Width 482 mm
Height 133 mm
Depth 310 mm
Rack spaces, RS 3
Weight 15 kg

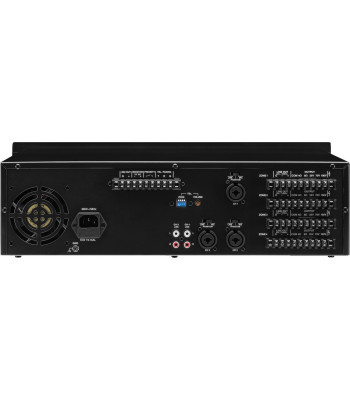

Connections 3 x combo 6.3 mm/XLR (mic/line),
2 x RCA L/R (line),
screw terminal (speaker zone),
screw terminal (speaker monitor),
screw terminal (mix out),
screw terminal (paging),
screw terminal (priority)
3.5 mm stereo jack (headphones)
PA-4040
