. CC Pro Shop 100V forstærker 120Wrms - PA-1200 MONACOR .
100V forstærker 120Wrms - PA-1200 MONACOR
search
  • 100V forstærker 120Wrms - PA-1200 MONACOR
  • 100V forstærker 120Wrms - PA-1200 MONACOR

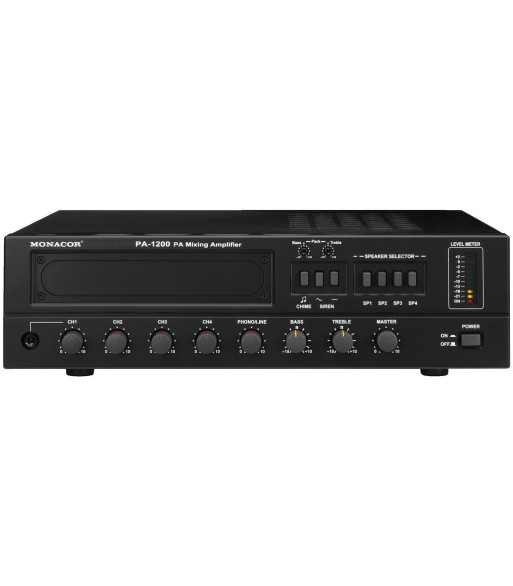

MONACOR 100V forstærker 120Wrms - PA-1200

3.659,00 kr.
Inkl. moms

4-zoners PA-mixerforstærker, mono

  • 1 x 120 W
  • Lydløs i brug: blæserfrit kølesystem
  • Gong, vedvarende tone og hyletone, automatisk mute; 2- eller 4-tonet gong kan også aktiveres via ekstern kontakt
  • Bas-, diskant- og mastervolumenkontrol, LED-indikator
  • +15 V phantom strømforsyning til kanal 2 og 3
  • Forskellige indbygningsmoduler kan købes separat
  • 482 mm (19") rack installation med monteringsbeslag PA-1200RM (købes separat)
  • Tilsluttes stikkontakt eller benytter 24 V nødstrømforsyning



Antal
På fjernlager

Ref: PA-1200

Channels 5
Zones 4
Power rating 120 W
Power rating at 2 _ -
Power rating at 4 _ -
Power rating at 8 _ -
Power rating at 100 V -
Power rating with 4 _ bridged operation -
Power rating with 8 _ bridged operation -
Peak music power output (PMAX) 170 W
Output impedance -
Inputs 1.5 mV/600 _ (mic),
150 mV/47 k_ (line),
1 mV/47 k_ (phono)
Attenuation factor -
Frequency range 80-15,000 Hz
Crossover network -
Crossover frequency -
Integrated limiter -
Equalizer bass ± 10 dB/100 Hz
Equalizer midrange -
Equalizer treble ± 10 dB/10 kHz
S/N ratio > 60 dB (mic),
> 70 dB (line)
Crosstalk attenuation -
THD < 1%
Power supply _ 230 V/50 Hz/280 VA,
DC current   24 V/11 A
Mains voltage _ 230 V
Mains frequency 50 Hz
Power consumption, operation 280 VA
Power consumption, standby -
Standby current -
Operating voltage (possible alternative) DC current  24 V
Power supply (possible alternative) DC current  11 A
Admiss. ambient temp. 0-40 °C
Dimensions 420 x 122 x 350 mm
Width 420 mm
Height 122 mm
Depth 350 mm
Rack spaces, RS -
Weight 13 kg

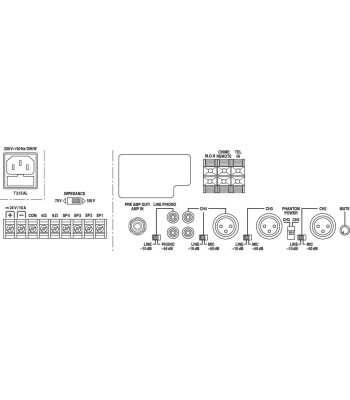

Connections 1 x 6.3 mm jack (mic input),
3 x XLR, bal. (mic/line inputs),
1 x RCA L + R (line input),
1 x RCA L + R (phono/line input),
1 x twin spring-loaded terminal (telephone input),
1 x twin spring-loaded terminal (tuner output),
1 x twin spring-loaded terminal (chime button),
7 x screw terminal (speakers)
PA-1200
