MONACOR 100V højttaler EN54 12Wmax - EDL-612EN

429,00 kr.
Inkl. moms
PA ceiling speakers, with EN 54-24 certification.
  • 100 V line technique with 3 power taps
  • Full range speaker with optimised voice reproduction
  • Plastic cover with low mounting depth
  • For a ceiling thickness from 5 to 22 mm
  • Quick installation
  • Robust metal basket and protective grille
Antal
På fjernlager

Ref: EDL-612EN

Impedance (Z) -
Line technique 100 V
Frequency range 120-15,000 Hz
Resonant frequency (fs) -
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating 12/6/3 W
Peak music power output -
Sensitivity 93 dB
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal -
Radiation angle, vertical -
Suspension compl. (Cms) -
Moving mass (Mms) -
Mech. Q factor (Qms) -
Electr. Q factor (Qes) -
Total Q factor (Qts) -
Equivalent volume (Vas) -
DC resistance (Re) -
Force factor (BxL) -
Voice coil induct. (Le) -
Voice coil diameter -
Voice coil former -
Linear excursion (XMAX) -
Eff. cone area (Sd) -
Magnet weight -
Magnet diameter -

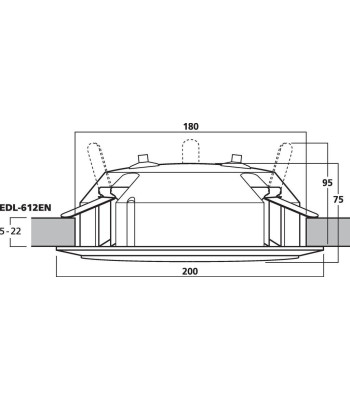

Mounting cutout Ø 180 mm
Mounting depth 60 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions Ø 200 mm x 70 mm
Outside diameter -
Width Ø 200 mm
Height -
Depth 70 mm
Protective class -
Admiss. ambient temp. -
Weight 980 g
Sales unit -
Type of speaker 165
EDL-612EN
