. CC Pro Shop Horn tweeter - MHD-55 MONACOR .

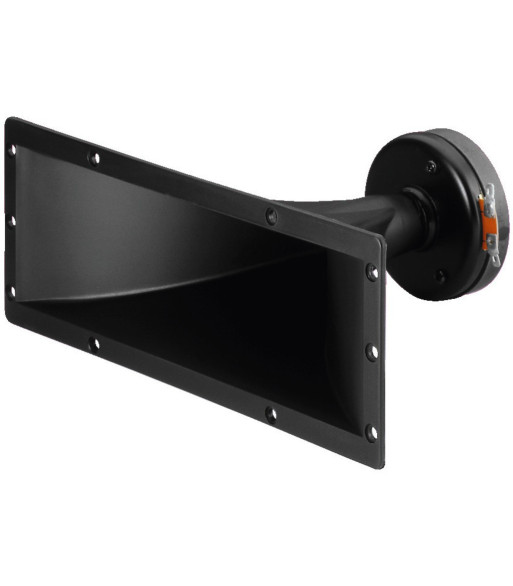

Horn tweeter - MHD-55 MONACOR
search
  • Horn tweeter - MHD-55 MONACOR
  • Horn tweeter - MHD-55 MONACOR

MONACOR Horn tweeter - MHD-55

399,00 kr.
Inkl. moms
PA horn tweeter, 30 W, 8 _
  • Plastic version
  • Good efficiency
  • Wide bandwidth, suitable for general PA applications
  • Replacement voice coils are available at option (MHD-1255/VC)
Antal
På fjernlager

Ref: MHD-55

Impedance (Z) 8 _
Line technique -

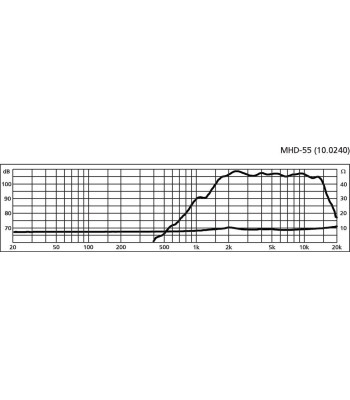

Frequency range fx-15 kHz
Resonant frequency (fs) 2 kHz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 3,000 Hz
Power rating 30 W
Peak music power output 55 W
Sensitivity 103 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal -
Radiation angle, vertical -
Suspension compl. (Cms) -
Moving mass (Mms) -
Mech. Q factor (Qms) -
Electr. Q factor (Qes) -
Total Q factor (Qts) -
Equivalent volume (Vas) -
DC resistance (Re) -
Force factor (BxL) -
Voice coil induct. (Le) -
Voice coil diameter Ø 24.6 mm
Voice coil former -
Linear excursion (XMAX) -
Eff. cone area (Sd) -
Magnet weight -
Magnet diameter Ø 80 mm
Mounting cutout 240 x 80 mm
Mounting depth 187 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions 269 x 101 x 187 mm
Outside diameter -
Width 269 mm
Height 101 mm
Depth 187 mm
Protective class -
Admiss. ambient temp. 0-40 °C
Weight 0.88 kg
Sales unit 1
Type of speaker -
MHD-55

Specifikke referencer
