Piezohorn - MPT-001 MONACOR
search
  • Piezohorn - MPT-001 MONACOR
  • Piezohorn - MPT-001 MONACOR

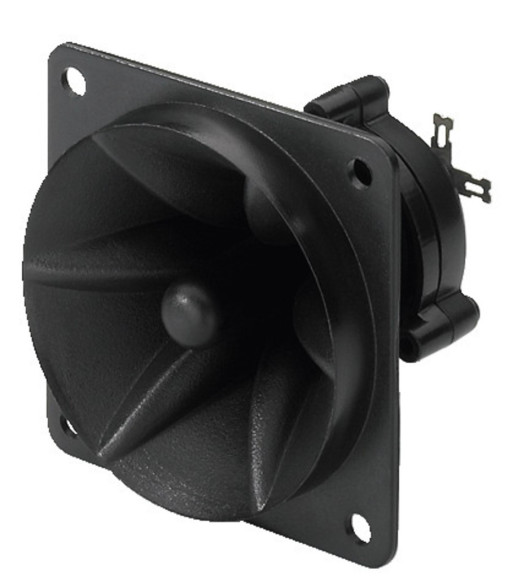

MONACOR Piezohorn - MPT-001

94,00 kr.
Inkl. moms
Piezo tweeter
Antal
På fjernlager

Ref: MPT-001

Impedance (Z) > 1,000 _
Line technique -
Frequency range 4,000-20,000 Hz
Resonant frequency (fs) -
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating -
Peak music power output 225 W (8 _ system)
115 W (4 _ system)
Sensitivity 94 dB/W/m
Max. rated SPL -
Max. voltage _ 30 V
Radiation angle, horizontal
Radiation angle, vertical
Suspension compl. (Cms) -
Moving mass (Mms) -
Mech. Q factor (Qms) -
Electr. Q factor (Qes) -
Total Q factor (Qts) -
Equivalent volume (Vas) -
DC resistance (Re) -
Force factor (BxL) -
Voice coil induct. (Le) -
Voice coil diameter -
Voice coil former -
Linear excursion (XMAX) -
Eff. cone area (Sd) -
Magnet weight -
Magnet diameter -

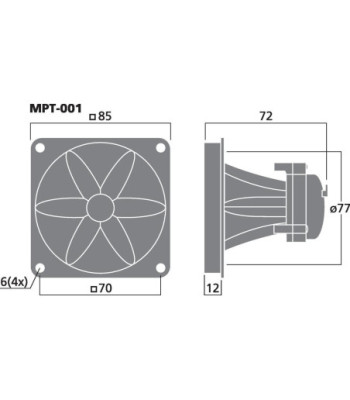

Mounting cutout Ø 77 mm
Mounting depth 60 mm
Mounting hole diameter -
Hole spacing X-axis 70 mm
Hole spacing Y-axis 70 mm
Dimensions 85 x 85 x 72 mm
Outside diameter -
Width 85 mm
Height 85 mm
Depth 72 mm
Protective class
Admiss. ambient temp. 0-40 °C
Weight 60 g
Sales unit 1
Type of speaker
MPT-001
