MONACOR 100V forstærker 1x35Wrms - PA-704

1.409,00 kr.
Inkl. moms

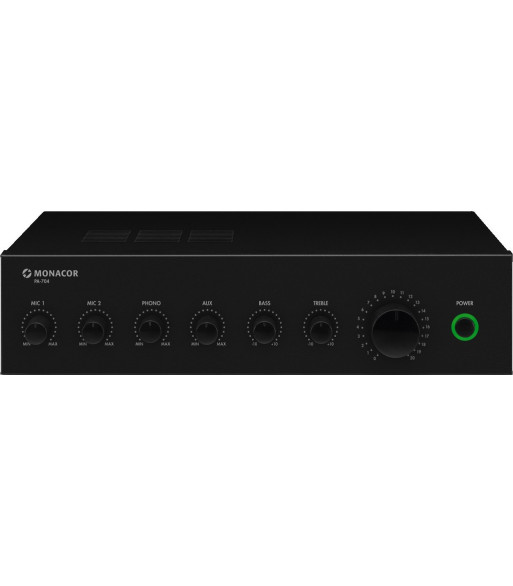

Mono PA mixing amplifier

  • 1 x 35 W
  • Silent operation due to fanless cooling concept
  • 2 low-impedance microphone inputs
  • 1 aux input, 1 phono input

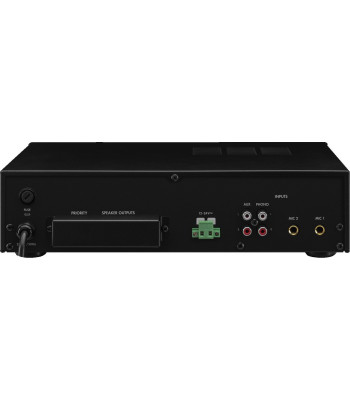

  • Speaker outputs via screw terminals
  • Input and output level controls
  • 2-way tone control for the output
  • Connection for a microphone talk button to switch off the other sources during announcements
  • Mains operation and 12-24 V emergency power operation

Antal
På fjernlager

Ref: PA-704

Peak output power 70 W
Power rating 35 W
Power rating at 2 _ -
Power rating at 4 _ -
Power rating at 8 _ -
Power rating at 16 _ -
Power rating at 100 V -
Power rating with 4 _ bridged operation -
Power rating with 8 _ bridged operation -
Output impedance -
Channels 4
Zones -
Inputs 5 mV (mic),

210 mV (aux),

5 mV (phono)
Attenuation factor -
Frequency range 100-18,000 Hz
Crossover network -
Crossover frequency -
Integrated limiter -
Equalizer bass ±10 dB/150 Hz
Equalizer midrange -
Equalizer treble ±10 dB/6 kHz
S/N ratio > 55 dB
Crosstalk attenuation -
THD < 1%
Phantom power -
Mains voltage _ 230 V
Mains frequency 50 Hz
Power consumption, operation 100 VA
Power consumption, standby -
Standby current -
Operating voltage (possible alternative) DC 12-24 V
Power supply (possible alternative) DC 2.5 A
Admiss. ambient temp. 0-40 °C
Width 320 mm
Height 85 mm
Depth 230 mm
Rack spaces, RS -
Weight 4.97 kg

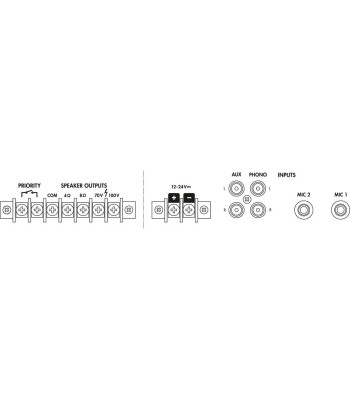

Connections 2 x 6.3 mm jack (mic),

1 x RCA L/R (aux),

1 x RCA L/R (phono),

connecting terminals (speakers)
PA-704
