Bånddiskant - AIRMT-85 MONACOR
search
  • Bånddiskant - AIRMT-85 MONACOR
  • Bånddiskant - AIRMT-85 MONACOR

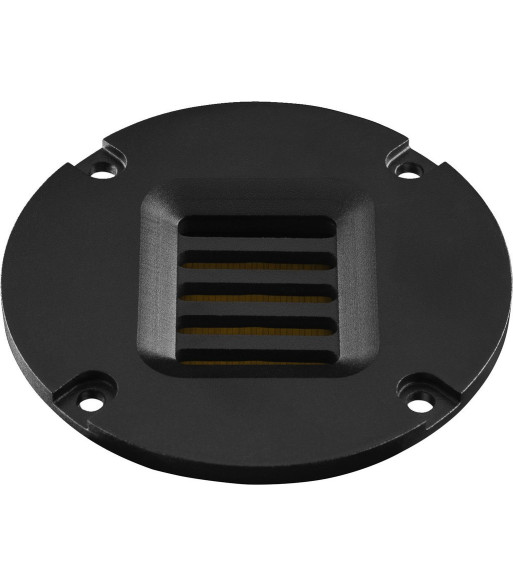

MONACOR Bånddiskant - AIRMT-85

1.269,00 kr.
Inkl. moms
Air Motion Transformers
are a special type of tweeter systems which have been developed by the German physicist Oskar Heil during his research on the characteristics of the human ear. The main feature is a film-covered cone with a special folding which vibrates like an accordion when an audio signal is applied. This folding allows to accommodate a large cone area at a minimum of space. The AMTs feature a dynamic sound, an excellent transient response, a high efficiency and a low harmonic distortion.
High-end Air Motion Transformer tweeter, 20 W, 4 _
  • Tweeter based on the principle of Air Motion Transformer
  • High-performance neodymium magnet system
  • Fine, dynamic and brilliant reproduction of the high frequencies
  • Folded cone made of Kapton and aluminium
  • High efficiency
  • For use from 2,500 Hz on
  • Robust aluminium front panel
Klang+Ton 08,09/2016
"Compact AMT with quite a low crossover frequency possible for two-way speaker systems and multi-way speaker systems of highest quality."
Antal
På fjernlager

Ref: AIRMT-85

Impedance (Z)4 _
Line technique-

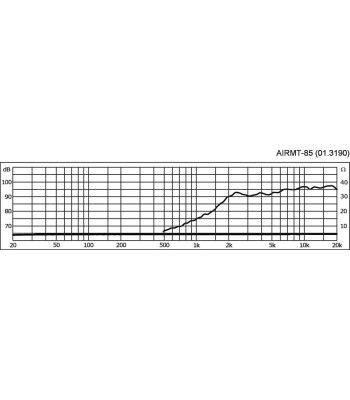

Frequency range2,000-30,000 Hz
Resonant frequency (fs)-
Rec. crossov. frequ. (fmax.) (12 dB/oct.)> 2,500 Hz
Power rating20 W
Peak music power output40 W
Sensitivity92 dB/W/m
Max. rated SPL-
Max. voltage-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)-
Moving mass (Mms)-
Mech. Q factor (Qms)-
Electr. Q factor (Qes)-
Total Q factor (Qts)-
Equivalent volume (Vas)-
DC resistance (Re)3.8 _
Force factor (BxL)-
Voice coil induct. (Le)-
Voice coil diameter-
Voice coil former-
Linear excursion (XMAX)-
Eff. cone area (Sd)-
Magnet weight-
Magnet diameterneodymium rods
Mounting cutoutØ 66 mm
Mounting depth36 mm
Mounting hole diameterØ 75 mm
Hole spacing X-axis-
Hole spacing Y-axis-
DimensionsØ 85 mm x 36 mm
Outside diameterØ 85 mm
WidthØ 85 mm
Height-
Depth36 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight0.3 kg
Sales unit1
Type of speaker-
AIRMT-85

Specifikke referencer

16 andre varer i den samme kategori:

IMG STAGELINE Mixer 4 kanal - MXR-4
search

IMG STAGELINE Mixer 4 kanal...

4-channel audio mixer,
with DSP effect unit, integrated MP3 player and Bluetooth receiver.

  • Integrated USB audio interface (will be identified and addressed as an external sound card)
  • Full-duplex USB port (allows for simultaneous recording and reproduction) for reproduction of digital audio data from a PC and for recording mixings onto a PC
  • 2 mono input channels with gain control, 2-way equalizer and pan pot
  • 1 stereo input channel with 2-way equalizer and balance control
  • MP3 player
  • USB interface
  • Bluetooth receiver
  • 16 different DSP effects
  • Adjustable aux return input and FX send output
  • +48 V phantom power, can be activated as required
  • Adjustable headphone output
  • Stereo LED level display
  • Power is provided via USB or supplied power supply


Available as of June 2020

Pris 939,00 kr.

På lager

Nodestativ - MSS-20/SW Monacor
search

MONACOR Nodestativ - MSS-20/SW

Professionelt nodestativ

  • Sortlakeret stativ og nodeholder
  • Justerbar i højden: 102-153 cm
  • Vipbar, aftagelig nodeholder, mål: 49 x 34 cm
  • Totalvægt: 3,5 kg



Pris 509,00 kr.

På fjernlager

Monteringsplade - GNS-1 MONACOR
search

MONACOR Monteringsplade -...

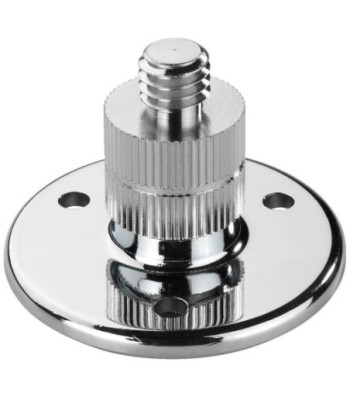

Gooseneck mounting plate
  • 9 mm ( 3/8 ") thread
  • For accepting microphone goosenecks, e.g. GN-13
  • Ø 45 mm x 30 mm
Pris 94,00 kr.

På fjernlager

Digital forstærker 4x500Wrms - STA-2000D IMG STAGELINE
search

IMG STAGELINE Digital...

Den nye generation af class D PA-forstærkere fra IMG STAGELINE imponerer med høj effekt og høj energieffektivitet. Andre fordele som lydløs drift og lav vægt gør denne forstærkerserie velegnet til både faste installationer og mobil anvendelse.

4-kanals digital PA-forstærker

  • Class D teknologi med PASCAL-forstærkermoduler
  • Fremragende akustisk ydeevne
  • Stort dynamikområde med meget lav forvrængning
  • Fremragende impulsgengivelse - også i basområdet
  • 482 mm (19") rack installation, 2 U
  • 2 eller 4 kanaler (ved brokobling)
  • Lydløs i brug: den temperaturstyrede ventilator aktiveres kun, hvis temperaturen overstiger 85 °C
  • Letvægtsdesign og med kompakt strømforsyning
  • Energibesparende takket være høj effektivitet
  • 4 x volumenkontrol
  • Beskyttet mod kortslutning, overophedning, overspænding og overbelastning
  • LED-indikator for strøm, signal, bridge, overbelastning (clip), overophedning og beskyttelse
  • Mulighed for brokobling
  • 85-265 V_
  • NEUTRIK POWERCON og SPEAKON højttalertilslutning

SOUNDCHECK 03/2015
"The STA-1000D and STA-2000D provide an unobtrusive sound reproduction of a high quality. No matter whether classical music, rock music or voice reproductions, the power amplifier perfectly meets any requirement."
tools4music 02/2015
"The power amplifiers STA-200D and STA-1000D from IMG Stage Line impress by an elaborated selection and configuration of the inner components. Due to the low weight and the mounting depth of 335 mm only, this series is suitable for both rack mounting and installation into shelves. With these test results, they are also suitable for hi-fi applications. I consider these 'lightweights' to be very well-suited for small to medium-sized entertainment applications, PA applications at conferences and for speech transmissions well as a multi-channel power amplifier for stage monitoring."
+ Operating reliability
+ Weight
+ Test results: low THD, perfect frequency response and S/N ratio
+ Low-maintenance design
+ Protective circuits
+ Very wide operating voltage range
+ Workmanship
+ Efficiency
- No XLR feedthrough connector



Pris 9.089,00 kr.

På fjernlager

100V zoneforstærker 480Wrms - PA-6480 MONACOR
search

MONACOR 100V zoneforstærker...

6-zone mono PA mixing amplifiers
  • 1 x 240 W (PA-6240)
  • 1 x 480 W (PA-6480)
  • 1 x 600 W (PA-6600)
  • 6 zones, can be controlled individually
  • Chime, continuous sound and wailing sound, automatic mute, 2-tone chime or 4-tone chime (selectable)
  • Bass, treble and master controls, level display via LEDs, regulated fan
  • Insertions for various functions are available at option
  • 17 V phantom power for electret microphones
  • Connection for zone paging microphone PA-6000RC
  • 1 insertion compartment at the front for automatic alarm message insertion PA-1120DMT, a tuner insertion or a CD player insertion, all available at option
  • 3 insertion facilities on the rear panel for optional modules with the following features:
    • PA-6FD: fault detection
    • PA-6FM: fault monitoring
    • PA-6FR: anti-feedback
  • Mains operation and 24 V emergency power operation
  • Removable mounting brackets
PROSOUND 9/10-2007
"This unit also features good and robust mechanics, as customary by MONACOR. The PA amplifier gives a conclusive and sophisticated impression. With additional modules, it turns into a respectable system which is suitable for versatile applications."
Pris 8.619,00 kr.

På fjernlager

Zonemikrofon - PA-6000RC MONACOR
search

MONACOR Zonemikrofon -...

PA zone paging desktop microphone, for connection to PA-6240, PA-6480 and PA-6600.
  • Push-buttons for selecting speaker zones 1-6 and ALL-CALL function
  • Start/pause function for 6 selectable announcements which are stored in the digital module PA-1120DMT
  • Autom. chime via microphone announcement button
  • Adjustable line input (RCA L/R) for connection of a signal source, e.g. CD player or tape deck
  • LED indication for transmission mode
  • Power supply via PA-6240, PA-6480, PA-6600
  • RJ45 jack for connection to additional PA-6000RC microphones with slave/priority switch
  • Supplied with connection module for PA-6240, PA-6480 and PA-6600
Pris 2.429,00 kr.

På fjernlager

Mikrofonkabel 15m - MEC-1500/SW Monacor
search

MONACOR Mikrofonkabel 15m -...

XLR kabler
Line- og mikrofonforlængerkabel.
  • 1 x XLR hunstik og 1 x XLR hanstik, balancerede
  • Skærmet støjsvagt OFC kabelmateriale, Ø 6,5 mm



Pris 299,00 kr.

På fjernlager

Højttaler - SP-6/8SQ MONACOR
search

MONACOR Højttaler - SP-6/8SQ

Miniature speaker, 10 W, 8 _
  • For standard applications
  • Sound pressure with good linearity from approx. 120 Hz up to the high range
  • Neodymium magnet
Pris 247,00 kr.

På fjernlager

Hornhøjttaler - NR-33KS MONACOR
search

MONACOR Hornhøjttaler...

Vejrbestandig hornhøjttaler
  • IP66, beskyttet mod kraftige vandstråler
  • 8 _ højttalersystem
  • Velegnet til indendørs og udendørs brug
  • Robust plastikkabinet
  • Monteringsbeslag og skruer i rustfrit stål medfølger



Pris 399,00 kr.

På fjernlager

100V søjlehøjttaler - ETS-530TW/SW MONACOR
search

MONACOR 100V søjlehøjttaler...

PA søjlehøjttalere
  • 100 V line-teknologi eller 8 _ drift
  • 2-vejs version (med ekstra indbygget tweeter, som giver en klart bedre lyd)
  • Integreret delefilter
  • 6-trins effektomskifter
  • 2 x 6 mm gevindbøsning
  • Plastikkabinet og frontgitter i metal i sort (SW) eller hvid (WS)
  • Monteringsbeslag medfølger
  • Tilslutning via klemterminaler



Pris 1.829,00 kr.

På fjernlager

8´´ højttaler - SPH-225C NUMBER ONE
search

MONACOR 8´´ højttaler -...

High-end bass speaker, 120 W, 8 _
  • High-rigidity cone
  • Extra long excursion
  • Small loss and low distortion
  • For an impressive fundamental bass in any high-quality hi-fi combination and smaller subwoofers
  • Also possible as a bass-midrange speaker in 2-way combinations
  • Suitable for cabinets of extra small dimensions
Klang+Ton 06/2014
"Used in the speaker building concept MonaLisa: usually rather unobtrusive with a harmonised tuning, this speaker can still show an impressive performance, even at very high volume levels and when listening over longer periods of time. It provides a powerful bass and midrange reproduction and features an elegance which can only be realised with high-quality materials."
Pris 1.229,00 kr.

På fjernlager

Stel skilletrafo - FGA-35 MONACOR
search

MONACOR Stel skilletrafo -...

Skilletransformer, i kompakt design, til reduktion af signalforstyrrelser og brummelyde, som kan opstå, fx når PC-lydkort eller bærbare PC'er tilsluttes en forstærker.

  • Galvanisk adskilte indgange og udgange
  • 2 x 3,5 mm stereo minijack
  • Indgangs-/udgangsimpedans: 20 k_
  • Frekvensområde: 20-30.000 Hz
  • THD: < 0,01 %
  • Transmissionsforhold 1:1
  • Ø 24 mm x 38 mm, 32 g
  • Længde inkl. kabel: ca. 80 cm

TASTENWELT 04/2014
"The FGA-35 is a compact transmitter and ideally suited for connecting instruments (e.g. stage pianos) to an audio device without interference."



Pris 177,00 kr.

På lager

Jackkabel 6x30cm - APC-06 MONACOR
search

MONACOR Jackkabel 6x30cm -...

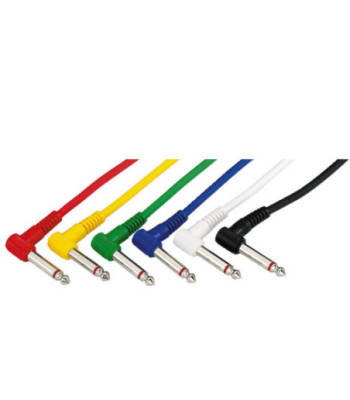

Noiseless patchcord
