. CC Pro Shop Dome tweeter - DT-25N NUMBER ONE .

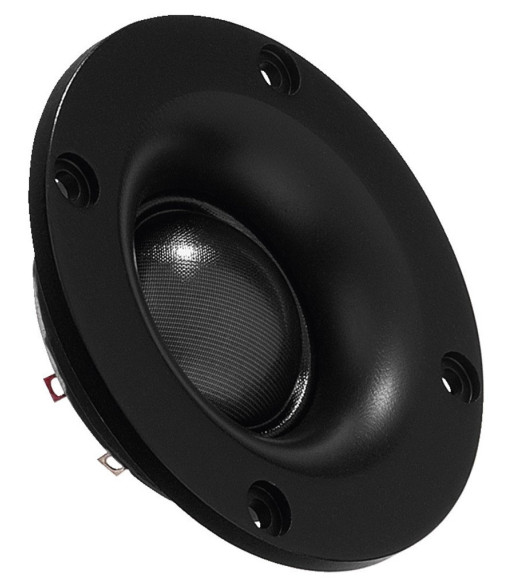

Dome tweeter - DT-25N NUMBER ONE
search
  • Dome tweeter - DT-25N NUMBER ONE
  • Dome tweeter - DT-25N NUMBER ONE

MONACOR Dome tweeter - DT-25N

269,00 kr.
Inkl. moms
Neodymium hi-fi tweeter, 40 W, 8 _
  • Outstanding sound characteristics
  • Silk soft dome cone with optimised geometry
  • Front plate with a specially adapted design
  • Very linear reproduction even of lower frequencies
  • High efficiency
  • Low magnetic dispersion and mechanically very compact due to the application of a high-performance neodymium magnet
  • Ideally suited for building smaller speaker systems
  • For high-quality standing hi-fi speakersy, e.g. in D'Appolito arrangements
  • Very fine and natural sound
Antal
På fjernlager

Ref: DT-25N

Impedance (Z) 8 _
Line technique -

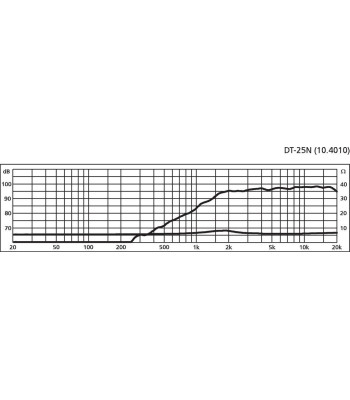

Frequency range fx-20,000 Hz
Resonant frequency (fs) 1,600 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 2,500 Hz
Power rating 40 W
Peak music power output 80 W
Sensitivity 95 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal -
Radiation angle, vertical -
Suspension compl. (Cms) -
Moving mass (Mms) -
Mech. Q factor (Qms) -
Electr. Q factor (Qes) -
Total Q factor (Qts) -
Equivalent volume (Vas) -
DC resistance (Re) -
Force factor (BxL) -
Voice coil induct. (Le) -
Voice coil diameter Ø 25 mm
Voice coil former -
Linear excursion (XMAX) -
Eff. cone area (Sd) -
Magnet weight -
Magnet diameter Ø 46 mm
Mounting cutout Ø 50 mm
Mounting depth 17.7 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions Ø 66 x 21 mm
Outside diameter Ø 66 mm
Width Ø 66 mm
Height -
Depth 21 mm
Protective class -
Admiss. ambient temp. 0-40 °C
Weight 65 g
Sales unit 1
Type of speaker -
NUMBER ONE
DT-25N

Specifikke referencer

16 andre varer i den samme kategori:

100V højttaler - EDL-206 MONACOR
search

MONACOR 100V højttaler...

Vejrbestandige indbygningshøjttalere
  • 100 V line-teknologi
  • Full range højttaler med dual membran, perfekte lydegenskaber
  • Stænktæt, udført i et stykke hvidt plastik, polypropylenmembran i høj kvalitet med gummikant
  • Til inden- og udendørs anvendelse
  • Monteringsskruer i rustfrit stål medfølger



Pris 619,00 kr.

På fjernlager

Basrefleksrør 110mm - MBR-110 MONACOR
search

MONACOR Basrefleksrør 110mm...

Bass-reflex tube, SV=95 cm2
  • High-quality PVC material
  • Telescopic version
  • Large cross section for low air flow noise
Pris 189,00 kr.

På lager

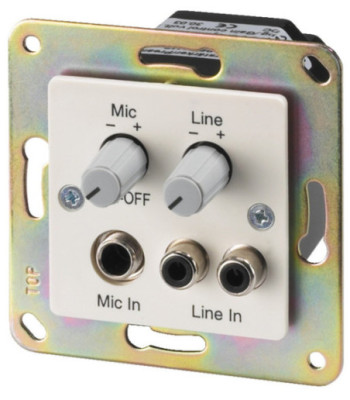

Forforstærker t/indb. - PREAMP-1UP MONACOR
search

MONACOR Forforstærker...

Flush-mounted preamplifier
  • For connection of power amplifiers
  • Fitted metal base plate
  • Connections and level controls for line input and microphone input
Description of features:
Preamplifier for connecting a dynamic microphone with 6.3 mm plug and a line source (e.g. tuner, CD player or MP3 player) via RCA jacks. Suitable for residential premises, small training rooms, practices, etc. ...The volume of the sound sources can be adjusted separately. The PREAMP-1UP features an on/off switch. The preamplified signal can then be transmitted to several power amplifiers (low-voltage and/or 100 V amplifier). Installation is done in a standard flush-mounted socket with a depth of 63 mm. The scope of delivery includes an imprinted cover (50 x 50 mm). A respective adapter frame for the corresponding range of switches is available from electrical wholesalers.
Pris 2.479,00 kr.

På fjernlager

PA-højttaler IP45 - PAB-12WP/SW Monacor
search

MONACOR PA-højttaler IP45 -...

Vejrbestandig PA højttalere med IP-klassifikation.

Det rette valg, når der er brug for højttalere med høj lydkvalitet og høj effekt, som kan tåle al slags vejr. Ideelle til permanent brug i det fri, fx i forlystelsesparker, i gågader, ved sportsarrangementer og andre steder, hvor det ikke er muligt at beskytte højttalerne mod vind og vejr.

Vejrbestandigt PA højttalersystem med høj effekt, 200 W, 8 _

  • 2-vejs basreflekssystem i ABS-kabinet med høj ydeevne
  • 30 cm (12") PA basenhed med imprægneret papirmembran
  • 25 mm (1") horn
  • Fremragende lydegenskaber
  • Frontgitter med vandafvisende beklædning
  • Speakon ind og parallel ud
  • Metaldele af rustfrit stål
  • 4 x M10 gevindindsats i top og bund til ophængning
  • Flange til montering på stativ
  • Testet og godkendt som boldskudssikre iht. DIN 18032, part 3

Production Partner 04/2012
"With the PAB-12WP/SW, the product range of IMG Stage Line now includes a weatherproof (IP45) 12/2 speaker system. It is available at an attractive price yet has plenty to offer. The speaker system provides impressive test results and a great sound experience. Overall, the PAB-12WP/SW and the PAB-120WP/SW can definitely be recommended for purchase, especially if you need a solid 12/2 speaker system which is able to still operate effectively even under difficult boundary conditions." Test author Anselm Goertz

tools4music 02/2012
"... for users and service providers who are often working at outdoor events or have to attend permanent outdoor applications, the PAB-12WP/SW is definitely worth considering ... open-air event in the Rhineland area, Germany ... continuous rain, from light drizzle to downpour ... despite plenty of water, even from every angle, the PAB-12WP/SW provided a smooth performance throughout the 6-hour test. Soaking wet on the outside, bone-dry on the inside."
+ Pleasant sound - with impressive power reserves
+ Truly waterproof
+ Practice-orientated handling
+ Good workmanship



Pris 0,00 kr.

På fjernlager

XLR-6.3mm linietrafo - NA-2MJTX NEUTRIK
search

NEUTRIK XLR-6.3mm...

NEUTRIK XLR/6.3 mm balancing adapter/ground isolator
  • XLR plug to 6.3 mm jack
  • Signal will be balanced 1:1 with separated ground, interference and hum loops are prevented
  • Galvanic isolation between input signal and output signal
  • Input/output impedance: 200 _
  • Black aluminium body
  • With latching device
  • For passive DI applications, e.g. from the output of an instrument to a mixer
  • Not suitable for speaker applications!
Pris 399,00 kr.

På fjernlager

XLR-bøsning m/Anti-Shock - XLR-703JSM MONACOR
search

MONACOR XLR-bøsning...

Shock-mount base with XLR socket
  • Attenuation of impact noise and structure-borne noise due to rubber-cushioned 3-pole XLR socket
  • 1.2 m connection cable with 3-pole XLR plug
Pris 299,00 kr.

På fjernlager

Hornhøjttaler - NR-33KS MONACOR
search

MONACOR Hornhøjttaler...

Vejrbestandig hornhøjttaler
  • IP66, beskyttet mod kraftige vandstråler
  • 8 _ højttalersystem
  • Velegnet til indendørs og udendørs brug
  • Robust plastikkabinet
  • Monteringsbeslag og skruer i rustfrit stål medfølger



Pris 399,00 kr.

På fjernlager

Røgmaskine - FM-410 IMG STAGELINE
  • På tilbud!
  • -200,00 kr.
search

Røgmaskine - FM-410 IMG...

Kompakt røgmaskine

  • Metalkabinet med aftageligt monteringsbeslag
  • Fast tank med væskeindikator
  • Aktiveres med den medfølgende fjernbetjening med ledning
  • Matchende røgvæsker: NF-502L og NF-502SL
  • Dufttilsætning til røgvæsker kan købes separat



Pris 499,00 kr. Normalpris 699,00 kr.

På lager

Sjækkel - FLS-130 Monacor
search

MONACOR Sjækkel - FLS-130

Quick-acting closure for ropes, for suspension system.
  • Load capacity: 30 kg max.
  • Ø 5 mm
  • Own weight: 22 g
The installation should be carried out by experts only. Improper installation may put persons and units at risk.
Pris 59,00 kr.

På fjernlager

KM Hovedtelefonholder - KM-16311
search

KM Hovedtelefonholder -...

Headphone wall holder,
for wall mounting.

  • Small compact version made of powder-coated sheet steel
  • Slotted front for accommodating an additional 2 in-ear headphones
  • Supplied with mounting accessories

Pris 100,00 kr.

På fjernlager

Dome tweeter - DT-28N NUMBER ONE
search

NUMBER ONE Dome tweeter -...

Neodymium hi-fi tweeter, 50 W, 8 _
  • Outstanding sound characteristics
  • Very linear reproduction even of lower frequencies
  • High efficiency
  • 28 mm extra efficient silk cone
  • Perfectly small front plate for high-performance speaker systems of the smallest size possible
  • Mounting into perfect D'Appolito arrangements also in lying centres due to low magnetic dispersion
Pris 289,00 kr.

På fjernlager

MondeF 16 Zone Streamer - MDF-816Z
search

MondeF 16 Zone Streamer -...

MondeF 16-zone network audio server (Dante®)
for professionally streaming Dante® audio data. Equipped with 16 Dante® outputs, 16 Dante® inputs. The server is completely pre-configured with MondeF software, drivers and the Audinate Dante® software for use with Dante® audio products.
The installed software includes Internet radio (120 channels max. simultaneously), announcement feature, (programmable) alarms/announcements, scheduling, playlists etc.
Furthermore, the server provides a variety of connection facilities, such as USB (4 x), RJ45 network connection, HDMI_ output and DisplayPort for connecting up to 2 optional monitors or touch screens, thus allowing for a convenient operation of all network components.
MondeF 16-zone network audio server (Dante®)
  • 16 Dante® outputs
  • 16 Dante® inputs
  • Completely pre-configured, including installed software and drivers
  • Mini server, slim design, slimline plastic housing
  • Operating system: Windows 10 Professional, 64-bit version
  • Intel Celeron 3865U processor, 1.8 GHz, Intel HD610 Graphics, supports 2160p/60 Hz
  • Wireless LAN 802.11n, internal antenna
  • Can be mounted as a wall device/desktop device or directly to the rear side of a monitor/touch screen (VESA mount)
  • Supplied with power supply, supporting feet and VESA mount (75/100 mm)

The brand Dante® as well as the Dante® software which may have been integrated into these products are licenced by Audinate Pty Ltd.
Pris 25.999,00 kr.

På lager

Spikes - SPS-45/SW MONACOR
search

MONACOR Spikes - SPS-45/SW

Set of speaker spikes (4 pcs.)
  • Threaded inserts for screwing in
  • Adjustable in height
  • With counternut
  • Required core drilling for threaded insert: Ø 8 mm
  • Black burnished
Pris 46,00 kr.

På fjernlager

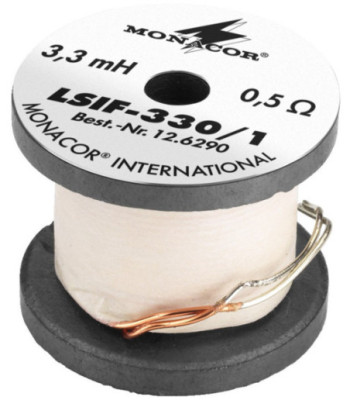

Spole 3.3mH - LSIF-330/1 MONACOR
