. MONACOR EN54 højttaler - EDL-530EN/WS .
MONACOR EN54 højttaler - EDL-530EN/WS
search
  • MONACOR EN54 højttaler - EDL-530EN/WS

MONACOR EN54 højttaler - EDL-530EN/WS

1.119,00 kr.
Inkl. moms

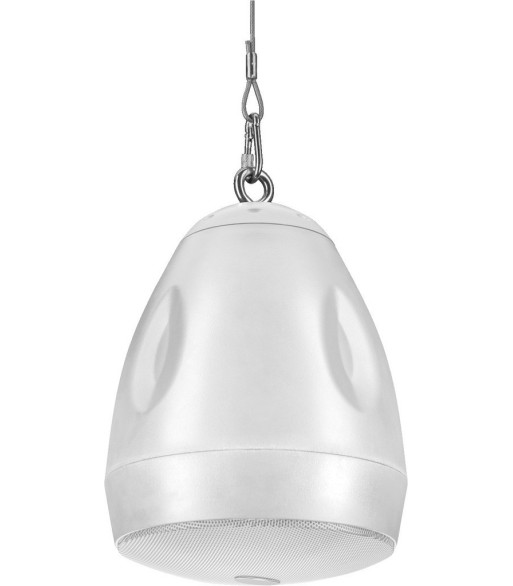

High-quality PA pendant speaker,
with EN 54-24 certification.
  • 100 V transmission technology or 8 _ operation
  • 2-way coaxial system (5.25")
  • UV-resistant ABS housing with aluminium grille
  • Excellent sound quality for speech and music
  • 5 m safety rope
  • Plug-in screw terminal

Antal
På fjernlager

Ref: EDL-530EN/WS

100 V1
Low-impedance1
EN 54 certification1
Active/passivepassive
Transmission technology100 V or low-impedance
Total output power-
Power rating (RMS)-
Total power rating-
Power rating (RMS)30/15/7.5/3.8 W
Impedance8 _
Frequency range65-20,000 Hz
THD-
S/N ratio-
Input signal-
System2-way coaxial
Full range speaker-
Bass speaker13.33 cm (5.25")
Midrange speaker-
Tweeter25 mm (1")
Number of speakers2
Speaker size13.33 cm (5.25")
SPL90 dB/W/m
Max. rated SPL-
Radiation angle/beam angle-
Radiation angle, horizontal-
Radiation angle, vertical-
Features-
Housing materialABS
Colourwhite
Mounting deviceeyelet bolt and 5 m safety rope with snap hook
Protected against ball rebound-
Protection class-
Admiss. ambient temp.0-40 °C
Power supply-
DimensionsØ 195 mm x 250 mm
WidthØ 195 mm
Height250 mm
Depth-
Weight2.26 kg
Inputsplug-in screw terminal
Outputs-
Replacement voice coil-
Other features-
Accessories-
Packing dimensions (W x H x L)0.22 x 0.3 x 0.22 m
Gross weight2.66 kg
Net weight2.26 kg
EDL-530EN/WS
