MONACOR - CS-W4C/5
search
  • MONACOR - CS-W4C/5

MONACOR - CS-W4C/5

9.369,00 kr.
Inkl. moms

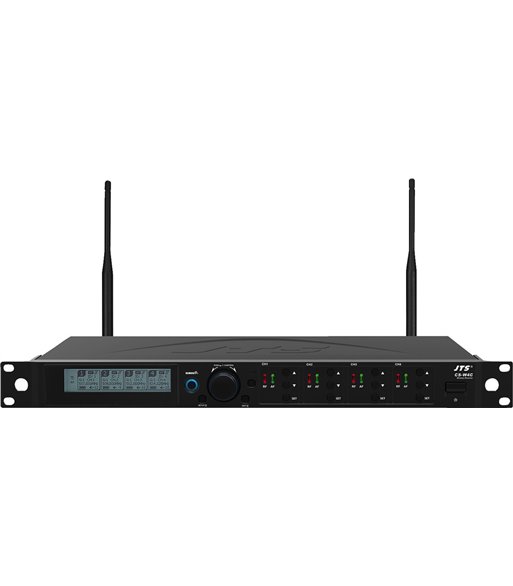

4-channel diversity UHF PLL wideband receiver for conference system
4-channel diversity UHF PLL wideband receiver for conference system;#Bandwidth: 36 MHz;#6 groups, each with up to 22 compatible preset channels;#1,441 selectable individual frequencies;#RF output and mains voltage output for easily cascading up to 10 x CS-W4C/5 receiver without additional splitter;#REMOSET technology for receiver/transmitter synchronisation;#Removable antennas (BNC connection);#Auto-scan function;#Pilot tone squelch and noise mute;#Volume settings to be selected for each channel;# Conference-specific priority settings;#Conference modes: override, priority and open mode;#Backlit display for indicating the status, e.g. for group/channel, frequency, battery, antenna A/B;#LED for indicating RF level and AF level;#Display for indicating battery status of the transmitters;#Power supply for optional antenna booster;#Link connections;#Trigger output;#XLR output per channel (bal.);#XLR output (bal.) and 6.3 mm output for mixed signal;#Outputs mic/line, switchable;#482 mm (19") rack installation, 1 RU;;
There are restrictions and requirements within the EU!;Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”!
Antal
På fjernlager

Ref: CS-W4C/5

Description receiver unit
Carrier frequency range 506-542 MHz
Audio frequency range 60-16,000 Hz
Channels 4
THD < 0.6%
Dynamic range > 105 dB(A)
Admiss. ambient temp. 0-40 °C
Audio signal receiver 630 mV/600 Ω XLR (line),

63 mV/600 Ω XLR (mic),

316 mV/600 Ω jack

Power supply receiver ˜ 110-240 V/50-60 Hz/20 VA
Width receiver 485 mm
Height receiver 45 mm
Depth receiver 260 mm
Weight receiver 2.4 kg
Connections receiver 5 x XLR, bal.,

1 x 6.3 mm jack, unbal.

EAN code 4007754274493
Net weight 3.39 kg
CS-W4C/5

Specifikke referencer

16 andre varer i den samme kategori:

MONACOR - LST-42
  • Ny
search

MONACOR - LST-42

Pair of universal supports
Pair of universal supports,;robust plastic version.;#For wall mounting or ceiling suspension of speaker systems;#For pivoting and tilting;#Tooth locking mechanism, to be secured via hexagon socket screws;#Max. load/central weight concentration: 8 kg;#Dimensions: mounting flange: 82.8 x 57.6 mm, mounting plate: 82.8 x 57.6 mm;#Weight: 300 g (pair);
Pris 309,00 kr.

På fjernlager

MONACOR - W4-CH12/COVER
  • Ny
search

MONACOR - W4-CH12/COVER

Transport case cover
Transport case cover;#Suitable for transport case with integrated charging function W4-CH12.;
Pris 2.389,00 kr.

På fjernlager

MONACOR - SIP-HORN
  • Ny
search

MONACOR - SIP-HORN

SIP horn speaker, active, PoE
SIP Horn Speakers from 2N®;Suitable for outdoor applications, with high volume level and perfect speech intelligibility. You can also use it as a useful instrument for broadcasting live messages in wide open spaces as well as for actively protecting your property. In case an intruder intends to break in, you can react immediately, either with a live message or a preset message to quickly drive away intruders.;Active SIP horn speaker;#Integrated amplifier;#Impedance: 8 Ω with an output power of 8 W (with PoE) or 25 W (with power provided via 24 V power supply);#Supports IP PBX (SIP);#Serverless audio solution;#Easy installation to an existing PoE switch via network cable;#LAN connection, Ethernet RJ45, 10/100 Mbps;#Connection to VMS thanks to ONVIF compatibility;#Live messages or preset messages via scheduler;#Audio self-test with fault indication;#Noise detection with adjustable threshold for triggering an action;#Pivoting mounting bracket, stainless steel;# Power is provided via PoE (IEEE 802.3af) or external power supply ( DC 24 V/2 A);#Matching power supply is available at option;#2N® Network Scanner app for searching of 2N® IP intercom systems and 2N® access units available within the network;
Pris 10.029,00 kr.

På fjernlager

MONACOR - SL-150SW/EN
  • Ny
search

MONACOR - SL-150SW/EN

Weatherproof PA speaker system, 150 W, 100 V/8 Ω, with EN classification
Weatherproof PA speaker system with 20 cm (8") coaxial horn speaker,;developed for outdoor applications, with an excellent sound quality. The SL-150SW/EN is ideally suited for applications at versatile locations, e.g. airports, megastores and stadiums.;Weatherproof PA speaker system, 150 W,;with EN 54-24 certification.;#100 V transmission technology or 8 Ω operation;#2-way bass-reflex system;#20 cm (8") coaxial speaker with tweeter and crossover network;#Excellent sound;#IP66 tested;#ABS cabinet with metal grille;#Recessed connection terminal with cover plate and high-strength cable gland;#Supplied with safety rope;#Stainless steel wall bracket;
Pris 5.109,00 kr.

På fjernlager

MONACOR - RCS-92/SW
  • Ny
search

MONACOR - RCS-92/SW

Rack-mount power strip, 9 sockets
Rack-mount power strip,;with 9 earthed sockets.;#Sockets turned by 45°;#Black aluminium housing;#Removable mounting brackets;#2 m connection cable with earthed plug;#Cable specification: H05VV-F3G x 1.5 mm2, 3,600 VA max.;#Dimensions: 482 x 44 x 45 mm, 1 RU;
Pris 799,00 kr.

På fjernlager

IMG STAGELINE - RM/MXR-80
  • Ny
search

IMG STAGELINE - RM/MXR-80

482 mm mounting bracket set for MXR-80
482 mm (19") mounting bracket set;#For rack installation of 8-channel audio mixer MXR-80;#2 mounting brackets;#Black lacquered metal version;
Pris 201,00 kr.

På fjernlager

MONACOR - STA-1508
  • Ny
search

MONACOR - STA-1508

8-channel PA amplifier, 1,280 W
8-channel PA amplifier,;with integrated limiter.;#Balanced inputs;#High-pass filter, low-pass filter, can be activated as required for each channel;#Tamper-resistant level adjustment on the rear panel;#8 Ω bridged operation possible;#LED VU meter and LED per channel for indicating overload (clip);#Soft start;#Ground lift switch;#Speaker switch-on delay;#Fan cooling;#Protected against short circuit, overheating and DC voltage overlay at the outputs;
Pris 6.559,00 kr.

På fjernlager

MONACOR - W4-CH12
  • Ny
search

MONACOR - W4-CH12

Transport case with integrated charging function, 12-port
Transport case with integrated charging function,;for UHF PLL microphone desk stand transmitter CS-W4T/5.;#For simultaneously charging rech. batteries of up to 12 devices;#Average charging time, depending on condition of rechargeable batteries used: approx. 5 hours;#Each slot with LED for indicating battery charging status;#Mechanical reverse polarity protection;#Protection against overload, short-circuit and deep discharge;#Supplied with 24 x NiMH rech. battery AA size (2,000 mAh);#Butterfly locks and recessed drop handles;# Stackable;#Matching transport case cover W4-CH12/COVER is available at option and can be ordered separately;;Supplied w/o cover and devices.
Pris 11.719,00 kr.

På fjernlager

MONACOR - DIVA-SIMONE
  • Ny
search

MONACOR - DIVA-SIMONE

Hi-fi floorstanding speaker
A 3-way hi-fi speaker remains a challenge for the developer. Jens Heerklotz, who is known in various DIY speaker platforms by the nickname Sonicfurby or Sonicfury, has taken on this task and the result is well worth looking at and listening to. Apart from excellent sound characteristics of the speaker system, great attention has been paid to its design and suitability for the living room. This resulted in a slimline floorstanding speaker system which features speakers of the HQ series from a German manufacturer and a genuine ribbon tweeter. With its sound characteristics, the MSH-115HQ is a true midrange specialist which is the perfect partner for ribbon tweeter RBT-10. The slimline speaker system also features two speakers SPH-145HQ which provide a terrific fundamental bass.

The DIVA SIMONE implements dynamic music surprisingly effortless. A rich and powerful bass, a clear, structured and transparent midrange and a very fine tweeter make listening to music a real pleasure, even above moderate volume levels. However, the DIVA SIMONE is not a party speaker for high volume levels.;Parts list included in the delivery:;
Speakers:;
  • Bass speaker: 2 x SPH-145HQ
  • Midrange speaker: 1 x MSH-115HQ
  • Tweeter: 1 x RBT-10
;
Crossover network:;
  • L1: 1 x LSIP-390
  • L2: 1 x LSIF-560
  • L3: 1 x LSIP-56/1
  • L4: 1 x LSIP-18/1
  • L5: 1 x LSIF-470/1
  • L6: 1 x LSIP-18/1
  • C1: 1 x 560µF electrolytic capacitor
    or 2 x LSC-2200NP, 1 x LSC-1000NP, 1 x LSC-220NP in parallel
  • C2: 1 x MKTA-470
  • C3: 1 x MKTA-100
  • C4: 1 x MKTA-150
  • C5: 1 x 360µF electrolytic capacitor
    or 1 x LSC-2200NP, 1 x LSC-1500NP, 1 x LSC-220NP in parallel
  • C6: 1 x 5.6µF film or MKTA-100 + MKTA-120 in parallel
  • C7: 1 x MKTA-150
  • R1: 1 x LSR-33/20
  • R2: 1 x LSR-56/10
  • R3: 1 x LSR-82/10
  • R4: 1 x LSR-27/10
  • R5: 1 x LSR-47/10
  • R6 optionally: 1.5-2.7 ohms
;
Accessories:;
  • Terminal: 1 x ST-960GM
  • Bass-reflex tube: 1 x MBR-70, length: 150-200 mm
  • Damping material: 2 bags MDM-4, 1 x MDM-40
  • Screws: 2 bags MZF-8614
  • Cable: 3 m SPC-125
  • Sealing tape: 1 x MDM-5
;
Parts list DIY store (not included in the delivery):;
Wood cutting:;
  • MDF 19 mm
;
  • Side walls: 2 pcs. 311 x 970 mm
  • Front wall: 1 pc. 200 x 970 mm
  • Rear wall: 1 pc. 162 x 932 mm
  • Bottom/top: 2 pcs. 162 x 311 mm
  • Partition: 1 pc. 292 x 162 mm
  • Partition: 1 pc. 228 x 162 mm
  • Partition: 1 pc. 142 x 162 mm
  • Reinforcing rail: 1 pc. 60 x 292 mm
  • Reinforcing rail: 1 pc. 60 x 162 mm
Pris 4.399,00 kr.

På fjernlager

MONACOR - NAC3MPXXB
  • Ny
search

MONACOR - NAC3MPXXB

NEUTRIK POWERCON panel jack, Type-B
NEUTRIK POWERCON panel jack;#For mains connection up to ˜ 250 V/20 A;#Version for mains output;#Connections for ground, phase and neutral connector;#Self-extinguishing according to UL-94 V-0;
Pris 54,00 kr.

På fjernlager

MONACOR - SL-250SW/EN
  • Ny
search

MONACOR - SL-250SW/EN

Weatherproof PA speaker system, 250 W, 100 V/8 Ω, with EN classification
Weatherproof PA speaker system with 30 cm (12") coaxial horn speaker,;developed for outdoor applications, with an excellent sound quality. The SL-250SW/EN is ideally suited for applications at versatile locations, e.g. airports, megastores and stadiums.;Weatherproof PA speaker system, 250 W,;with EN 54-24 certification.;#100 V transmission technology or 8 Ω operation;#2-way bass-reflex system;#30 cm (12") coaxial speaker with tweeter and crossover network;#Excellent sound;#IP66 tested;#ABS cabinet with metal grille;#Recessed connection terminal with cover plate and high-strength cable gland;#Supplied with safety rope;#Stainless steel wall bracket;
Pris 7.869,00 kr.

På fjernlager

MONACOR - KP70-400
  • Ny
search

MONACOR - KP70-400

Plastik 70, spray, 400 ml
Plastik 70;Protective lacquer,;for PCBs and electronic components, protects PCBs from moisture and normal environmental influences.
The dielectric strength is approx. 110 kV/mm.
Note: During repairs, the lacquer can be soldered through.
Pris 239,00 kr.

På fjernlager

MONACOR - AN-05
  • Ny
search

MONACOR - AN-05

External 2G/3G GSM antenna
External 2G/3G GSM antenna,;#To be used in combination with GSM dialling and control unit GD-04K for extending the operating range;# Frequencies: 800-2,100 MHz;#Antenna gain: 4 dB max.;#Magnetic base;#Admissible ambient temperature: -40 °C to +60 °C;#Length: 30 cm;#3 m connection cable with SMA plug;
Pris 319,00 kr.

På fjernlager

MONACOR - TPE-TG84
  • Ny
search

MONACOR - TPE-TG84

Gigabit Power over Ethernet switch
Gigabit Power over Ethernet switch;#8 ports (RJ45) with 10/100/1,000/2,000 Mbps each, 8 PoE/PoE+ ports;#Bandwidth: 16 Gbps;#Power per port: 30 W (PoE+), 15.4 W (PoE);#Total power of PoE: 120 W;#Compatible with standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab IEEE 802.3x, IEEE 802.3p, IEEE 802.3af, IEEE 802.3at;#Fanless;# LED status indication for each port;#Metal housing, can be wall mounted;#Power is provided via enclosed power supply;#Admissible ambient temperature: 0-40 °C;#Dimensions: 240 x 27 x 105 mm;#Weight: 580 g;
Pris 1.249,00 kr.

På fjernlager

MONACOR - ARM-880WP1
  • Ny
search

MONACOR - ARM-880WP1

Wall module
Audio Matrix System;The system ARM-880... from MONACOR is a highly flexible PA solution for multi-room applications. It is ideally suited for applications in hotels, in restaurants and bars, in conference rooms, schools, sports facilities and fitness centres. Eight different audio sources, e.g. CD players, SAT receivers, radio programmes can be distributed to 8 output zones, assignment as required.
The audio matrix router ARM-880 is the centrepiece of the system. For operation, one amplifier is required for each output used. This may be an individual power amplifier or an active speaker system. Matching wall modules ARM-880WP1, ARM-880WP2 and ARM-880WP3 for remote control of ARM-880 or with additional local inputs for the respective zone are available at option.
With a master/slave connection, it is possible to extend the system to up to 32 output zones. Connections for various alarm signals and a local microphone are available.
Announcements can be made via 2 optional zone paging microphones ARM-880RC with zone selection.;Wall module,;for remote control of audio matrix router ARM-880.;#Intended application: remote control of one zone, local insertion of audio signals;#2 RCA jacks for line signals;#Microphone connection via NEUTRIK 3-pole XLR jack;#Source selector switch;#Level controls for line, microphone and source;#15 V phantom power;#7-segment LED display;#Connection to ARM-880 and power supply via RJ45 jack and Cat. 5 network cable. A separate power supply is required for operation with cable lengths of more than 50 m;#Dimensions front panel: 146 x 86 mm;#Supplied with robust flush-mounted metal housing;
Pris 1.209,00 kr.

På fjernlager
