. Jack TRS .
Jack TRS
search
  • Jack TRS

Jack TRS

29,00 kr.
Inkl. moms
4 STAR CJM3

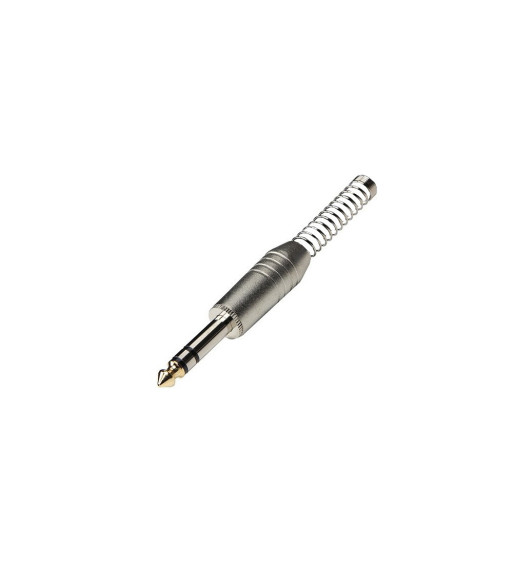

Our large selection of different plugs includes this 6.3 mm jack plug from our 4 Star series. The cable is connected to the plug by soldering and the metallic strain relief gives the whole structure the necessary stability at the end, also thanks to the heat shrink tubing.

Antal
På fjernlager

Ref: K4CJM3

  • TRS jack plug from our 4 Star Series
  • Balanced jack connector
  • Strain relief made of metal
  • With spring bending protection
  • Suitable for cables with a diameter from 5 mm

General

Plug type6.3 mm Jack TS
Plug contactSilver plated

Line

Connection typeSoldering contacts

Housing

Chassis materialSteel
Suitable cable diameter5 - 7.5 mm

Dimensions & weight

Length70 mm
Diameter13 mm
Weight8 g
Adam Hall Connectors
K4CJM3

Specifikke referencer

7 andre varer i den samme kategori:

Jack TRS | with gold-plated contacts
search

Jack TRS - with gold-plated...

3 STAR C JM3 GOLD

Our large selection of different plugs includes this 6.3 mm jack plug with unbalanced contacts. The cable is connected to the plug by soldering and the metallic strain relief gives the whole structure the necessary stability at the end.

Pris 29,00 kr.

På fjernlager

Jack TRS female
search

Jack TRS female

3 STAR C J F3

Our wide range of different plugs includes this 6.3 mm jack socket with balanced contacts. The connection of the cable to the plug is done by soldering and the metallic strain relief gives the whole structure the necessary stability at the end.

Pris 39,00 kr.

På fjernlager

Jack TRS female Neutrik® | Flat version
search

Jack TRS female Neutrik® -...

4 STAR C JM3 FL

Our large selection of different plugs in the 4 Star Series includes this small, flat and angled 6.3 mm jack plug. Not only as an extremely flat solution for little strain on the instrument socket, but also as a visual eye-catcher and vintage-style solution. Cables with a diameter of 4 - 7 mm can be accommodated here. The solderable contacts are protected with a cover that is fastened with screws.

Pris 39,00 kr.

På fjernlager

Jack TRS
search

Jack TRS

3 STAR C JM3

Our large selection of different plugs includes this 6.3 mm jack plug with balanced contacts. The cable is connected to the plug by soldering and the metallic strain relief gives the whole structure the necessary stability at the end.

Pris 29,00 kr.

På fjernlager

Neutrik Jack TRS Neutrik® | with gold-plated contacts
search

Neutrik Jack TRS Neutrik® -...

NP3X-B

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch).

The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.

The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

Pris 79,00 kr.

På fjernlager

Neutrik Jack TRS Neutrik® | angled plug with gold-plated contacts
search

Neutrik Jack TRS Neutrik® -...

NP3RX-B

3 pole right-angle 1/4" professional phone plug, gold contacts, black shel

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch).

The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.

The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

Pris 99,00 kr.

På lager

Neutrik Jack TRS Neutrik® | angled plug
search

Neutrik Jack TRS Neutrik® -...

NP3RX-BAG

3 pole 1/4" professional phone plug, nickel contacts, black shell

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch).

The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.

The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

Features & Benefits
  • Extra slim 1/4" plug for highest packing density
  • Robust diecast shell in stylish design
  • Proven chuck type strain relief for reliable cable retention
  • Sleek design for best handling convenience
  • Precision machined one-piece contacts - avoid hook up of tip contact
Pris 89,00 kr.

På lager
