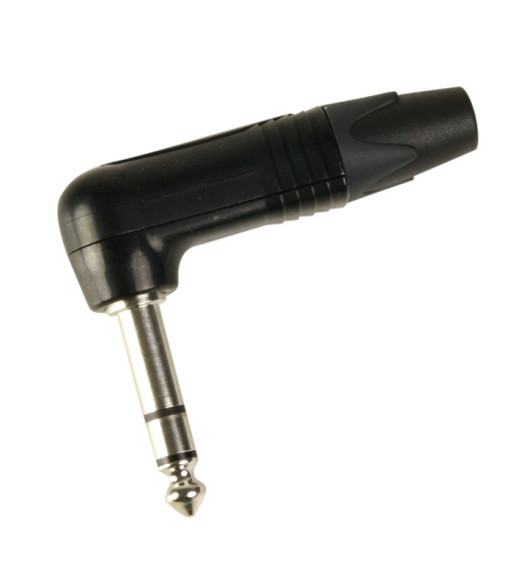

Neutrik Jack TRS Neutrik® - angled plug

89,00 kr.
Inkl. moms
NP3RX-BAG

3 pole 1/4" professional phone plug, nickel contacts, black shell

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch).

The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.

The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

Features & Benefits
  • Extra slim 1/4" plug for highest packing density
  • Robust diecast shell in stylish design
  • Proven chuck type strain relief for reliable cable retention
  • Sleek design for best handling convenience
  • Precision machined one-piece contacts - avoid hook up of tip contact
Antal
Sidste elementer på lager

Ref: NP3RXBAG

Product typePlugs and Connectors
TypeJack Connectors
Poles3
Gendermale
Cable diameter4 - 7 mm
Contactsnickel plated
Connection typesolder contacts
ColorBlack
Housingdie-cast zinc
Strain reliefpolyacetal
Length61.3 mm
Diameter14.8 mm
Weight0,033 kg
NEUTRIK
NP3RXBAG
1 Enhed
