. Hybrid Cable - Power & Audio - 3 x 1.5 mm² & 2 x 0.22 mm² - 100 m - 100 meter .

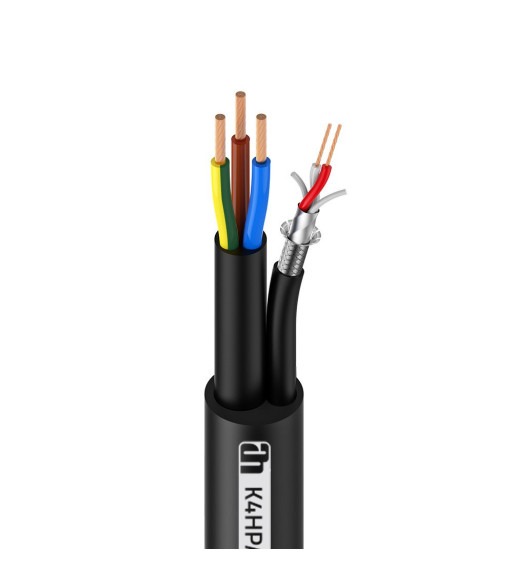

Hybrid Cable | Power & Audio | 3 x 1.5 mm² & 2 x 0.22 mm² | 100 m - 100 meter
search
  • Hybrid Cable | Power & Audio | 3 x 1.5 mm² & 2 x 0.22 mm² | 100 m - 100 meter

Hybrid Cable - Power & Audio - 3 x 1.5 mm² & 2 x 0.22 mm² - 100 m - 100 meter

4.429,00 kr.
Inkl. moms
4 STAR HYBRID POWER AUDIO 315

Hybrid Cable for audio and power supply

Antal
På fjernlager

Ref: K4HPA315

  • Professional Hybrid Cable from our 4 STAR "Standard" SERIES
  • Packaging unit: 100 m in one piece
  • For the parallel supply of audio signals and power in just one cable
  • Dense copper spiral shield with AL/PT foil
  • Highly flexible soft PVC jacket

Product typeBulk Cable
TypePower / Signal Cable
ColorBlack
Overall diameter15 mm
Jacket materialPVC
Temperature range-20 - 70 °C
Weight0,225 kg

Power

Diameter8 mm
AWG16
Number of internal conductors3
Center conductor cross section1.5 mm²
Center conductor construction48 x 0.20 mm
Center conductor materialOFC
Conductor resistance85 ohm/km
Capacitance55 pF/m

Audio

Diameter 24 mm
AWG 224
Number of inner conductors 22
Center conductor cross section 20.22 mm²
Center conductor construction 228 x 0.10 mm
Center conductor material 2OFC
ShieldAL/PT-foil
ShieldCopper spiral coil shield
Conductor resistance 255 ohm/km
Capacitance124 pF/m
Adam Hall Cables
K4HPA315

Specifikke referencer
