. Hybrid Cable - Power & DMX - 3 x 2.5 mm² & 2 x 0.22 mm² - 100 m - 100 meter .
Hybrid Cable | Power & DMX | 3 x 2.5 mm² & 2 x 0.22 mm² | 100 m - 100 meter
search
  • Hybrid Cable | Power & DMX | 3 x 2.5 mm² & 2 x 0.22 mm² | 100 m - 100 meter

Hybrid Cable - Power & DMX - 3 x 2.5 mm² & 2 x 0.22 mm² - 100 m - 100 meter

5.459,00 kr.
Inkl. moms
4 STAR HYBRID POWER DMX 325

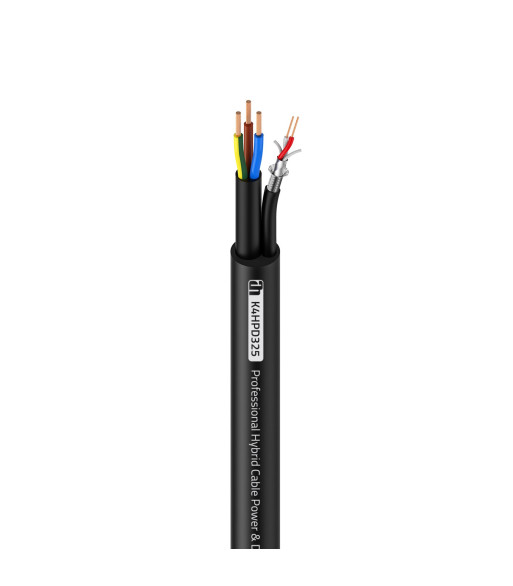

Hybrid Cable for DMX & power supply

Antal
På fjernlager

Ref: K4HPD325

  • Professional Hybrid Cable from our 4 STAR "Standard" SERIES
  • Packaging unit: 100 m in one piece
  • For the parallel supply of DMX signals and power in just one cable
  • Dense copper spiral shield with AL/PT foil
  • Highly flexible soft PVC jacket

Product typeBulk Cable
TypePower / Signal Cable
ColorBlack
Overall diameter17 mm
Jacket materialPVC
Temperature range-20 - 70 °C
Weight0,4 kg

Power

Diameter10 mm
AWG14
Number of internal conductors3
Center conductor cross section2.5 mm²
Center conductor construction96 x 0.10 mm
Center conductor materialOFC

DMX

Diameter 25 mm
AWG 224
Number of inner conductors 22
Center conductor cross section 20.22 mm²
Center conductor construction 27 x 0.20 mm
Center conductor material 2OFC
ShieldAluminium foil
ShieldCopper spiral coil shield
Conductor resistance 285 ohm/km
Capacitance55 pF/m
Adam Hall Cables
K4HPD325
