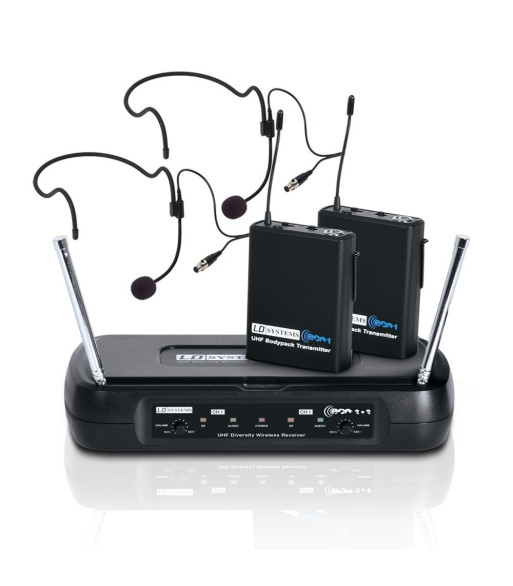

LD Systems ECO 2X2 BPH 2

1.895,00 kr.
Inkl. moms
  • Dual channel UHF PLL wireless system
  • 863.9 and 864.9 MHz band operation
  • 50 m line-of-sight operating range
  • 2 headset mics
  • 2 bodypacks with input sensitivity selector and power/mute switch
  • 2-channel diversity receiver with XLR and single 1/4_ mix outputs
  • 10+ hours operating time
  • Power adapter and 2 AA batteries included
Antal
På fjernlager

Ref: LDWSECO2X2BPH2

Specifications

General
Product type
Wireless Microphone Systems
Type
Headsets
Transmission frequency range
863.9 MHz, 864.9 MHz
Items in this set

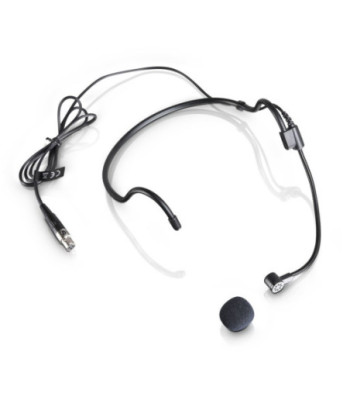

LD Systems WS 100 MH 1 Headset microphone, black
 View items
Product type
Wireless Microphone System Accessories
Type
Headsets
Directivity
Cardioid
Nominal impedance
680 Ohm(s)
Frequency response
100 Hz - 12 KHz
Phantom power requierements
5 V
Microphone input
Mini-XLR (3-pin, female)
Cable length
1 m
Weight
0,049 kg
Accessories (included)
Foam windscreen

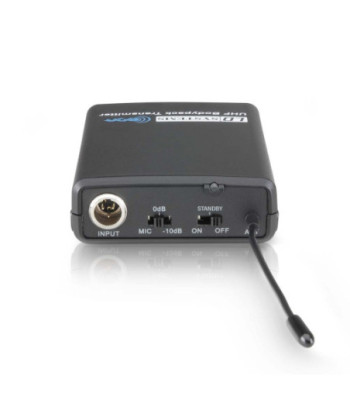

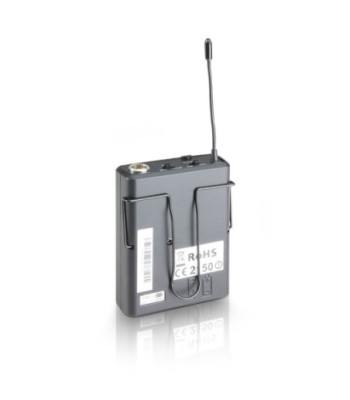

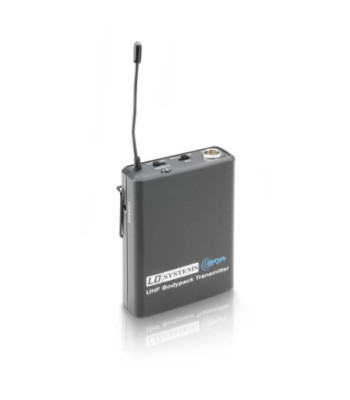

LD Systems ECO 2 BP 2 Bodypack transmitter
 View items
Product type
Wireless Microphone System Accessories
Type
Belt Packs
Transmission frequency range
863.9 MHz
Channels
1
Inputs
Mini-XLR (3-pin) with phantom power (for headset)
Frequency response
60 - 16.000
Rated HF output power
10 mW
Operating time
>10 h (with alkaline batteries)
Other features
incl. batteries
Controls
Mic / 0dB / -10 dB switch, power (on/off/mute)
Indicators
battery status
Power supply
2 x AA battery
Width
65 mm
Height
85 mm
Depth
23 mm
Weight
0,1 kg
LD Systems ECO 2 BP 4 Bodypack transmitter
 View items
Product type
Wireless Microphone System Accessories
Type
Belt Packs
Transmission frequency range
864.9 MHz
Channels
1
Inputs
Mini-XLR (3-pin) with phantom power (for headset)
Frequency response
60 - 16.000
Rated HF output power
10 mW
Operating time
>10 h (with alkaline batteries)
Other features
incl. batteries
Controls
Mic / 0dB / -10 dB switch, power (on/off/mute)
Indicators
battery status
Power supply
2 x AA battery
Width
65 mm
Height
85 mm
Depth
23 mm
Weight
0,1 kg

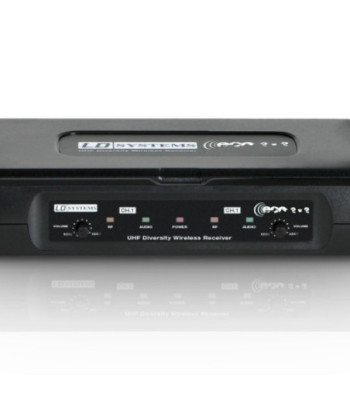

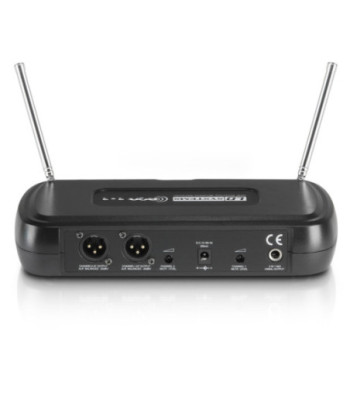

LD Systems ECO 2X2 R 2 Double receiver
 View items
Product type
Wireless Microphone Systems
Modulation Type
FM
Transmission frequency range
863.9 MHz, 864.9 MHz
Channels
2
Antenna inputs
2
Antenna connector
fixed to housing
Frequency response
60 - 16.000
Noise reduction
Squelch
Signal-to-noise ratio
> 105 dB
Audio output, balanced
2 x XLR
Audio mix output, unbalanced
6.3 mm jack
Controls
2 x mute level, 2 x volume
Indicators
2 x audio signal, 2 x HF signal, Power
Power supply
12 - 18 V DC, 400 mA, External Power Supply
Width
235 mm
Height
44 mm
Depth
118 mm
Weight
0,4 kg
Accessories (included)
Batteries, Power supply
