. Bakkamera Interface til Volvo 2014 .
Bakkamera Interface til Volvo 2014
search
  • Bakkamera Interface til Volvo 2014

Bakkamera Interface til Volvo 2014

3.499,00 kr.
Inkl. moms
Antal
På fjernlager

Ref: NA-RL2SC14

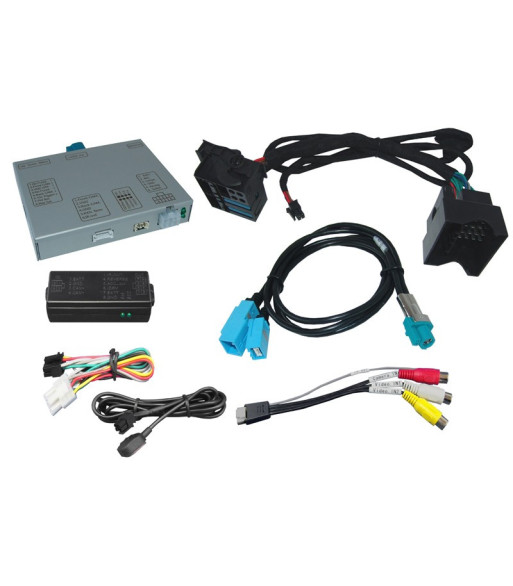

r.LiNK video inserter for rear-view camera and 2 video-sources. Compatible with Volvo model years from 2014 with 7 inch Sensus Connect. Combined display of factory optical park-system with after-market rear-view camera.



The r.LiNK interface allows to insert a rear-view camera and two different video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer.



Product features

  • Video-inserter for factory-infotainment systems
  • 1 CVBS rear-view camera video-input
  • 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
  • Automatic switching to rear-view camera input on engagement of the reverse gear
  • Activatable parking guide lines for rear-view camera (not available for all vehicles)
  • Picture-in-picture (PIP) mode combining after-market rear-view camera picture with factory parking sensor graphic (not for all vehicles)
  • Video-in-motion (ONLY for connected video-sources)
  • Video-inputs PAL and NTSC compatible

Bemærk:

Fremtidige ændringer/opdateringer af køretøjets software kan forårsage funktionsfejl i interfacet.

Det kan muligvis klares ved en softwareopdatering af interfacet men det kan vi ikke garantere.

En evt. opdatering koster 500,- og interfacet skal indsendes for egen regning. Arbejdsomkostninger for og andre udgifter forbundet med softwareopdateringerne refunderes ikke.

Derfor anbefales det ikke at opdatere bilens multimedie system.

Compatibility

BrandModelNavigation
Volvo Vehicles from model year 2014 with 7" monitor Sensus Connect (with Internet button)




Limitations

Video only The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM- modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them.
Factory rear-view camera Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.
Guide lines / PDC If the CAN-box does not receive the required information from the vehicle CAN- bus, neither guide-lines nor PDC will be supported.




Connectors

  • Video-insertion: standard blue GVIF
  • Power and CAN-bus: Plug & play (Quadlock insert)
  • Video-input (2x): RCA female connector
  • Rear-view camera-input: RCA female connector



Specifications

Operating voltage 12V DC (7~25V)
Standby current 40mA
Current consumption 240mA
Video input 0.7~1V
Video input formats PAL/NTSC
Operating temperature -40°C to +85°C
Dimensions video-box 113 x 22 x 104mm (W x H x D)
Dimensions CAN-box 73 x 22 x 30mm (W x H x D)



NA-RL2SC14
