Bakkamera Interface til Mercedes - NTG5.5

3.599,00 kr.
Inkl. moms
Antal
På fjernlager

Ref: NA-RL4MBN55

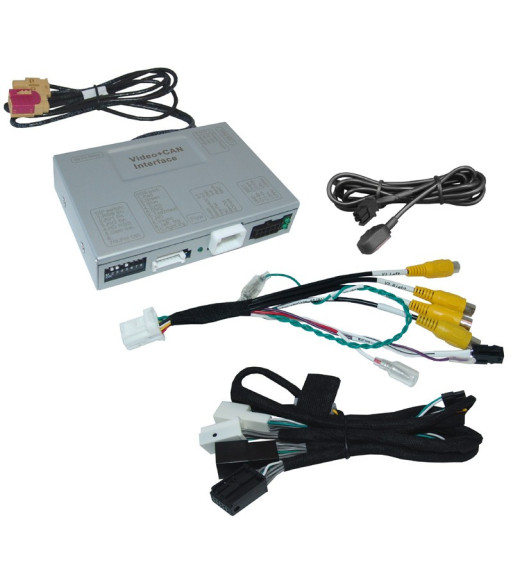

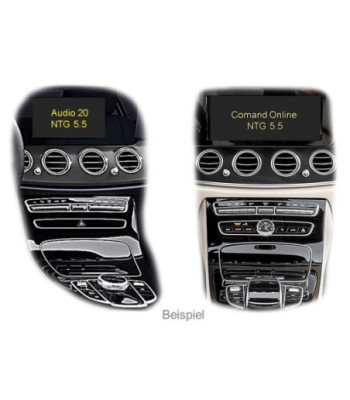

r.LiNK video inserter for rear-view-camera, front camera with auto switching and 2 further video-inputs. Compatible with Mercedes Benz vehicles with Comand Online NTG5.5 with 12inch monitor and Audio20 with 8inch monitor.



The r.LiNK interface allows to insert a rear-view camera, a front camera and two different video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system.



Product features

  • Video-inserter for factory-infotainment monitors
  • 1 CVBS rear-view camera input
  • 1 CVBS front camera input
  • 2 CVBS video inputs for after-market devices (e.g. USB-Player, DVB-T2 Tuner)
  • Automatic switching to rear-view camera input on engagement of the reverse gear
  • Automatic front camera switching after reverse gear for 10 seconds
  • Activatable parking guide lines for rear-view camera (not available for all vehicles)
  • Video-in-motion (ONLY for connected video-sources)
  • Video-inputs NTSC compatible

Bemærk:

Fremtidige ændringer/opdateringer af køretøjets software kan forårsage funktionsfejl i interfacet.

Det kan muligvis klares ved en softwareopdatering af interfacet men det kan vi ikke garantere.

En evt. opdatering koster 500,- og interfacet skal indsendes for egen regning. Arbejdsomkostninger for og andre udgifter forbundet med softwareopdateringerne refunderes ikke.

Derfor anbefales det ikke at opdatere bilens multimedie system.

Compatibility

BrandModelNavigation
Mercedes Benz CLS-coupe (C257) from 02/2018,
C-class (W205) from about 08/2018,
E-class (W213) from about 06/2016,
E-class coupe (A/C238) from 09/2017,
G-model (G463) from 05/2018,
GT AMG 4-doors (X290) from 09/2018,
S-coupe (C217) from about 05/2017,
S-class (V/X/W222) from 05/2017		 Audio20 NTG5.5 with 7 or 8inch monitor
Comand Online NTG5.5 with 10.25 or 12inch monitor




Limitations

Video only The interface inserts ONLY video signals into the infotainment. For inserting Audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them.
Factory rear-view camera Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.
After market front camera The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad.
Video input signal Only NTSC video sources compatible.
Guide lines If the interface does not receive the required information from the vehicle CAN-bus, guide lines won_t be supported.




Connectors

  • Video-insertion: Double Fakra
  • CAN-bus: Plug & play (vehicle specific)
  • Power: cable with open ends
  • Video-inputs (2x): female RCA connector
  • Rear-view camera-input: female RCA connector
  • Front camera-input: female RCA connector



Specifications

Operating voltage 7~25V DC
Standby current 10mA
Current consumption 200mA@12V
Video input 0.7~1V
Video input formats NTSC
Operating temperature range -40°C to +85°C
Dimensions video-box 119 x 24 x 95 mm (W x H x D)
NA-RL4MBN55

Specifikke referencer

16 andre varer i den samme kategori:

Pro-Ject HEAD BOX DS2 BLACK
search

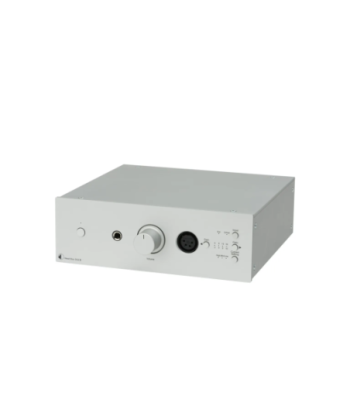

Pro-Ject HEAD BOX DS2 SILVER

Features

  • Enough power to drive demanding headphones
  • Dual mono design principle
  • Four gain settings to match any headphone
  • Three current settings to deliver best sonics
  • Single ended (6.3 mm) and balanced (4 Pin XLR) headphone output
  • Both outputs usable simultaneously
  • Phase inverter built in at input stage to convert unbalanced signal to a balanced one for superior sound
  • Powerstage realized by two TPA6120A2 chips
  • BLUE ALPS potentiometer for best volume control
  • Magnetic side panels in eucalyptus, rosenut and walnut available separately
Pris 4.695,00 kr.

På fjernlager

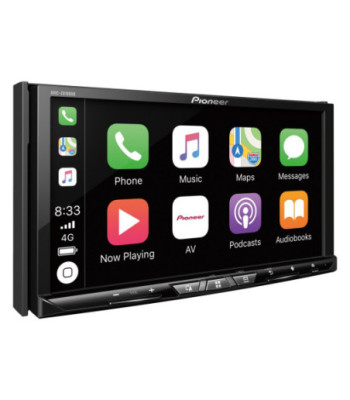

PIONEER 2DIN NAVIGATION/ BT/ CAMPER - AVIC-Z830DAB-C
  • På tilbud!
  • -1.900,00 kr.
search

PIONEER 2DIN NAVIGATION/...

Wi-Fi-aktiveret avanceret navigations AV-system til autocampere med en stor 7" 24-bit True Colour Clear Type Resistive Multi-touchscreen. Nyd Apple CarPlay trådløs, Android Auto, Waze, Bluetooth og DAB + Digital Radio (godkendt af Digital Radio Tick Mark). Dual USB og Dual camera input er også inkluderet, samt overlegen lyd og videoydeevne.

Pris 10.999,00 kr. Normalpris 12.899,00 kr.

På fjernlager

Monacor HDMS-2084K - HDMI splitter 4K
  • På tilbud!
  • -100,00 kr.
search

Monacor HDMS-2084K - HDMI...

8-way HDMI splitter,

for alternatively connecting 2 players to up to 8 HDMI monitors.

  • For transmission of high-definition UHD signals (4K)
  • Supports HDR
  • Input source can be selected via switch and via enclosed infrared remote control
  • Inputs: 2 x 19-pole HDMI_ Type-A jack
  • Outputs: 8 x 19-pole HDMI_ Type-A jack
  • Power is provided via encl. power supply
  • Dimensions: 276 x 25 x 140 mm
  • Weight: 877 g
Pris 949,00 kr. Normalpris 1.049,00 kr.

På lager

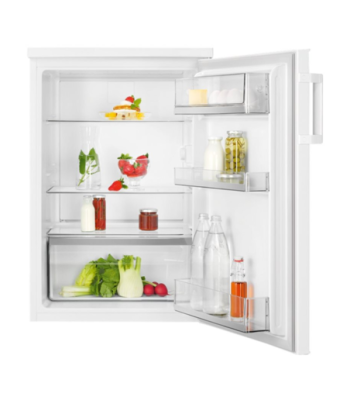

AEG RTB414E1AW
