. Hertz SP 4.900 SPL 4 Kanals Forstærker .

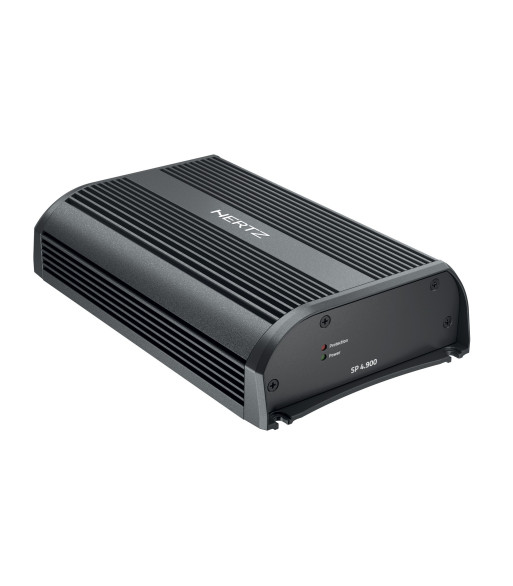

Hertz SP 4.900 SPL 4 Kanals Forstærker
search
  • Hertz SP 4.900 SPL 4 Kanals Forstærker
  • Hertz SP 4.900 SPL 4 Kanals Forstærker
  • Hertz SP 4.900 SPL 4 Kanals Forstærker
  • Hertz SP 4.900 SPL 4 Kanals Forstærker
  • Hertz SP 4.900 SPL 4 Kanals Forstærker
  • Hertz SP 4.900 SPL 4 Kanals Forstærker

Hertz SP 4.900 SPL 4 Kanals Forstærker

4.699,00 kr.
Inkl. moms
Antal
På fjernlager

Ref: SP4900

/></p> <h1>Hertz ADC (Advanced D-Class)</h1> <p>SP 4.900 is the first Hertz amplifier featuring the renewed <span>Hertz ADC (Advanced D-Class)</span> output stage, reaching up to 85% efficiency and delivering an impressive power rating of <span>160 x 4 (4_) W RMS</span> <span>or</span> <span>500 W x 2 (4_) W RMS</span> when bridged, with an ultra-compact size of 211.6 (8.3) x 130 (5.1) mm (in.). Being ultra-compact with an impressive power, SP 4.900 is the ideal choice for Motorcycle application and for under-seat in sport cars and behind-seat installations in trucks.</p> <p>Hertz ADC technology ensures SP 4.900 overtakes the usual <span>ultra-compact amplifier performances,</span> delivering an outstanding 105 dBA S/N Ratio and 0.02% THD specifications, and almost completely eliminating EMI and RFI noise, for<span> peerless sound quality.</span></p> <p>This versatility is perfect to drive high power (4_) front speakers with a bridged (4_) subwoofer.</p> <p>SP 4.900 is fully protected against overheating and DC outputs, immediately switching in protection mode (red led on) to save your speaker system.</p> <p><span>The IP55 certified Aluminum chassis</span> offers maximum protection against humidity and external agents and <span>the absence of internal cooling fan</span> prevents internal accumulation of dirt. SP 4.900 main board <span>has conformal coating layers</span> to prevent harm caused by internal condensation, a condition that can happen when warm, moist air meets the amp chassis of a lower temperature.</p> <p><span>SP 4.900 features a built-in sealed power cord, line inputs and speaker outputs</span> for a bulletproof motorcycle application providing safe power delivery in even the worse weather conditions. <span>The solid power supply harness </span>ensures ultra-stable power and ground connection, preventing any loss of contact caused by vibration. Due to his specialized design, <span>SP 4.900 is the ultimate option for Motorcycle, Marine, and Powersports applications.</span></p> <p>SP 4.900 features <span>built-in USS (Universal Speakers Simulator)</span>, a dynamic load circuit on Hi-Level inputs which initially shows the OEM output channel a load low enough to neutralize OEM speaker outputs muting protection circuit. Once the circuit activates, a higher load is introduced _ still low enough to damp Class D outputs, but not low enough to cause current issues or heat dissipation problems.</p> <p>SP 4.900 offers both remote-in signal detection and DC offset sensing on the speaker inputs for automatic turn on, providing total integration with any vehicle.</p> <p><span>The versatile crossover filters and control knob are all located on a single side</span>, to allow an easy calibration when the product is installed.</p> <p>The filters section includes extremely flexible high-pass and low-pass crossovers, adjustable from 50 Hz to 5 kHz with 12 dB/Oct slope. Together with a bass-boost control (45 Hz, 0÷8 dB), they allow both front channels to be configured for full-range operation, or for use with a subwoofer and related speakers.</p> <p>The high-pass crossover can also be used to optimize the performance of SPL Show NEO high-efficiency coaxial speakers, the perfect partners for SP 4.900.</p> <p> </p> <h2>General Specs</h2> <table border=

Channels 4 - 3 - 2 Nominal power supply voltage 11 ÷ 15 VDC Pulse Operating voltage 6 ÷ 16 VDC Idling current 1.1 A Idling current when off 0.03 mA Consumption @ 14.4 VDC, MIN load impedance (Max Musical Power) 50 A Remote IN 6 ÷ 15 VDC (9 mA) DC-REM - Remote Turn on by SPK DC from OUTPUT BTL speakers 3.5 ÷ 7 VDC Distortion - THD @ 1 kHz, 4_, 70% Rated Power 0.02% Damping factor @ 1 kHz, 4_, 2 VRMS 200 Bandwidth @ -3 dB 10 Hz ÷35 kHz S/N ratio (A weighted @ 1 V Input) 105 dBA Pre-In sensitivity 0.6 ÷ 6 VRMS Speaker-In sensitivity 2.2 ÷ 22 VRMS Minimum load impedance: 7.5 / 16.53 @ 4Ch 2_ @ 3Ch 2_ + 2_ + 4_ @ 2Ch 4_ IP Rating IP55 Operating Temperature Range 0°C (32°F) to 55°C (131°F) Max size (mm/inch) 211.6 x 130 x 49 / 8.33 x 5.118 x 1.929 Weight (kg/lbs) 2.15 / 4.74 Adjustable Crossovers yes

Output Power

Output Nominal Power (RMS) @ 14.4 VDC, THD 1%:
4 Ch: 160 W x 4 (4_)
4 Ch: 250 W x 4 (2_)
3 Ch: 160 W x 2 (4_) + 500 W x 1 (4_)
3 Ch: 250 W x 2 (2_) + 500 W x 1 (4_)
2 Ch: 500 W x 2 (4_)
Total Power RMS 1000 W

INPUTS / FILTERS

INPUTS: Pre IN / Speaker IN
Ch 1-2
Full -
Hi-pass 50 ÷ 5k Hz @ 12 dB/Oct.
Lo-pass: 50 ÷ 5k Hz @ 12 dB/Oct.
Ch 3-4
Full -
Hi-pass 50 ÷ 5k Hz @ 12 dB/Oct.
Lo-pass 50 ÷ 5k Hz @ 12 dB/Oct.
Bass Boost 45Hz (adjustable) OUT 3 -4 (0 ÷ 8) dB [LP = ON only]
Hertz
SP4900
