. Bakkamera Interface til Audi - MMI3G(+) .
Bakkamera Interface til Audi - MMI3G(+)
search
  • Bakkamera Interface til Audi - MMI3G(+)
  • Bakkamera Interface til Audi - MMI3G(+)

Bakkamera Interface til Audi - MMI3G(+)

3.499,00 kr.
Inkl. moms
Antal
På fjernlager

Ref: NA-RL2MMI3GGW

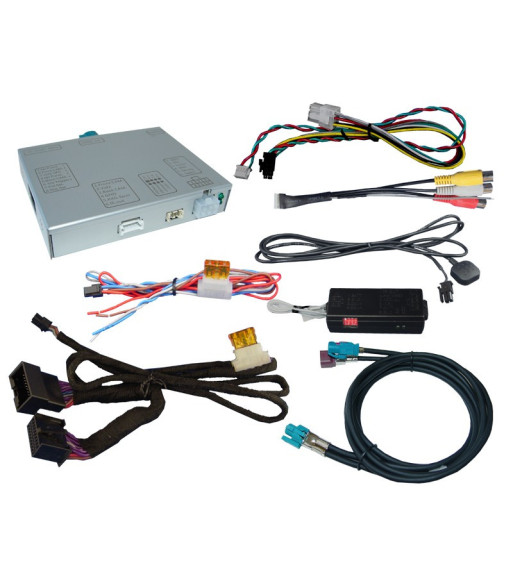

r.LiNK video inserter for rear-view camera and 2 video-sources. Compatible with Audi MMI 3G/3G+ basic/high or other units with 4-pin HSD LVDS connector and for VW with RNS850. NOT Q3.



Product features

  • Video-inserter for factory-infotainment systems
  • 1 CVBS rear-view camera video-input
  • 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
  • Automatic switching to rear-view camera input on engagement of the reverse gear
  • Activatable parking guide lines for rear-view camera (not available for all vehicles)
  • Video-in-motion (ONLY for connected video-sources)
  • Video-inputs PAL and NTSC compatible

Bemærk:

Fremtidige ændringer/opdateringer af køretøjets software kan forårsage funktionsfejl i interfacet.

Det kan muligvis klares ved en softwareopdatering af interfacet men det kan vi ikke garantere.

En evt. opdatering koster 500,- og interfacet skal indsendes for egen regning. Arbejdsomkostninger for og andre udgifter forbundet med softwareopdateringerne refunderes ikke.

Derfor anbefales det ikke at opdatere bilens multimedie system.

Bemærk, dette er en skaffe vare med forlænget leveringstid og der ydes ikke returret på bestillingsvarer/skaffevarer, dvs varer som ikke er lagervarer og som hjemtages specifikt til en ordre.

Derfor venligst sikre dig at det er den rigtige vare til din bil.

©au2Tek.dk2021

Compatibility

BrandModelNavigation
Audi A1 (8X) from 05/2010 til 10/2018,
A4 (8K) from 05/2009 til 08/2015,
A5 (8T) from 11/2008 til 06/2016,
A6 (4F) from 08/2008 til 03/2011,
A6 (4G) from 04/2011 til 09/2014,
A7 (4G) from 07/2010 til 05/2014,
A8 (4E) from 09/2008 til 03/2010,
A8 (4H) from 03/2010 til 10/2017,
Q5 (8R) from 11/2008 til 2017,
Q7 (4L) from 05/2009 til 03/2015		 MMI Navigation (Plus) 7" or 8"

MMI3G High and Basic, MMI3G+
A1 (8X) from 05/2010-,
A6 (4F) from 08/2008 til 03/2011,
A6 (4G) from 04/2011 til 05/2018,
A7 (4G) from 07/2010 til 01/2018,
Q7 (4L) from 05/2009 til 03/2015		 MMI Radio
MMI Radio Plus
MMI Navigation 6.5"

RMC/RMC_Cnct_Plus/ RMC_Cnct_Nav
VW Touareg model year from 2011 til 06/2018 RNS850




Limitations

Video only The interface inserts ONLY video into the infotainment. For sound use the possibly existing factory-audio-AUX-input, a FM-modulator or the AUX-in interface AUX-110.
Factory OPS Display of an optical park display (OPS) is not possible if an after-market rear-view camera is connected and reverse gear is engaged. Acoustic signals are still existing.
Guidelines If the video interface does not receive the required information from the vehicle CAN-bus, guide-lines will not be supported.
Factory rear-view camera Automatic switch-back from inserted video to factory rear-view camera only while reverse gear is engaged. To delay the switch-back time, additional electronics is required.



ATTENTION! Interface is not compatible with Audi Q3 vehicles. Therefor RL2-MMI3G-Q3 interface has to be used.




Connectors

  • Video-insertion: 4-pin HSD
  • Power and CAN-bus: Plug & play (vehicle specific)
  • Video-input (2x): RCA female connector
  • Rear-view camera-input: RCA female connector



Specifications

Operating voltage 12V DC (7~25V)
Standby current 45mA
Current consumption 220mA
Video input 0.7~1V
Video input formats PAL/NTSC
Operating temperature -40°C to +85°C
Dimensions video-box 113 x 22 x 115mm (W x H x D)
Dimensions CAN-box 73 x 22 x 30mm (W x H x D)
NA-RL2MMI3GGW

Specifikke referencer

16 andre varer i den samme kategori:

LD Systems IMA 60 Installation Mixing Amplifier 65W @ 4 Ohms / 100 V / 70 V
search

LD Systems IMA 60...

  • Line input for emergency signal with contact closure
  • 2 microphone/line input sockets with microphone/line switch and switchable 24 V phantom power
  • Switchable chime feature in Mic/Line 1 channel
  • 2 line inputs with RCA sockets and Bluetooth 4.0 interface (mono summed)
  • 65W Class-D Amplifier with Lo-Z / Hi-Z selector switch and 4 Ohm / 100V / 70V outputs
  • Balanced AUX line output with Music-Mix switch, for controlling external amplifiers, active subwoofers or music-on-hold systems
  • 4 priority levels for comprehensive integration options
  • Switchable auto standby mode for reduction of energy consumption
  • Intuitive control panel design for operation with capacitive controls for selecting music source and Bluetooth pairing
  • Universal wide-range switching power supply
Pris 4.499,00 kr.

På fjernlager

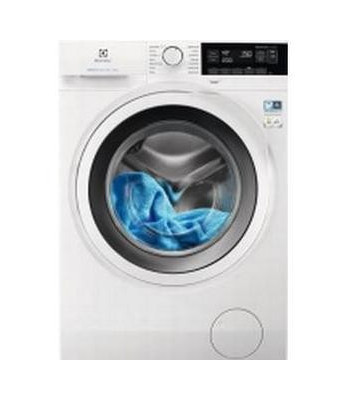

ELECTROLUX EW7F6548E4
