. Bakkamera Interface til Alfa Romeo, Fiat, Jeep .
Bakkamera Interface til Alfa Romeo
search
  • Bakkamera Interface til Alfa Romeo
  • Fiat

Bakkamera Interface til Alfa Romeo, Fiat, Jeep

3.499,00 kr.
Inkl. moms
Antal
På fjernlager

Ref: NA-RL5UCON65

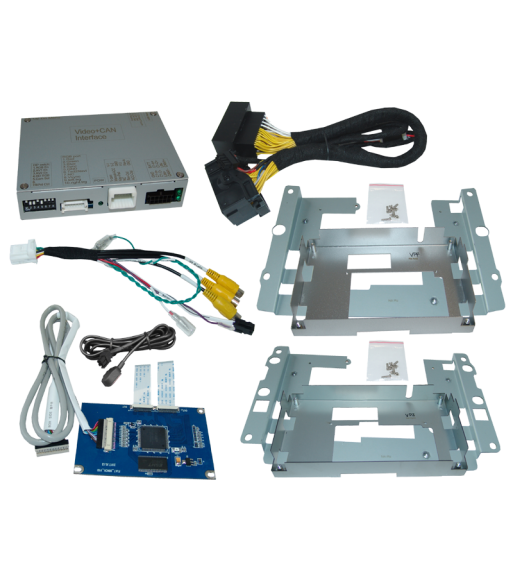

r.LiNK video inserter for rear-view camera and 2 video-sources. Compatible with Fiat 500, 500X, 500L, Jeep Renegade and Alfa Romeo Giulietta with Uconnect VP3/4 with 6.5inch monitor. Replaces the RL5-UCON65.



The r.LiNK interface allows to insert a rear-view camera and two different video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer.



Product features

  • Video-inserter for factory-infotainment systems
  • 1 CVBS rear-view camera video-input
  • 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
  • Automatic switching to rear-view camera input on engagement of the reverse gear
  • Video-in-motion (ONLY for connected video-sources)
  • Video-inputs NTSC and PAL compatible

Bemærk:

Fremtidige ændringer/opdateringer af køretøjets software kan forårsage funktionsfejl i interfacet.

Det kan muligvis klares ved en softwareopdatering af interfacet men det kan vi ikke garantere.

En evt. opdatering koster 500,- og interfacet skal indsendes for egen regning. Arbejdsomkostninger for og andre udgifter forbundet med softwareopdateringerne refunderes ikke.

Derfor anbefales det ikke at opdatere bilens multimedie system.

Bemærk, dette er en skaffe vare med forlænget leveringstid og der ydes ikke returret på bestillingsvarer/skaffevarer, dvs varer som ikke er lagervarer og som hjemtages specifikt til en ordre.

Derfor venligst sikre dig at det er den rigtige vare til din bil.

©au2Tek.dk2021

Compatibility

BrandModelNavigation
Alfa Romeo Giulietta model years from 2016 Uconnect VP4, 6.5inch monitor
Fiat 500,
500L,
500X		 Uconnect VP3 + VP4, 6.5inch monitor
Jeep Renegade Modelljahre ab 2015 bis 2018 Uconnect VP4, 6.5inch monitor




Limitations

Video only The interface inserts ONLY video signals into the infotainment. For audio insertion factory-audio-AUX-input or a FM-modulator is required.
Factory rear-view camera Automatic switch to factory rear-view camera only while reverse gear is engaged. To delay the switch reset, additional electronics is required.
Alfa Romeo The original housing must be adapted by hand, as the enclosed exchange metal sheets do not fit Alfa Romeo. Make sure that the ground springs of the PCBs are still in contact with the housing!



NOTICE: The interface have to be installed in the monitor panel (the cover needs to be opened)!




Connectors

  • Video-insertion: ribbon cable
  • Power and CAN-bus: Plug & play (vehicle specific)
  • Video-inputs (2x): RCA female connector
  • Rear-view camera-input: RCA female connector



Specifications

Operating voltage 12V DC (7~25V)
Standby current 10mA
Current consumption 150mA
Video input 0.7~1V
Video input formats NTSC/PAL
Operating temperature -40°C to +85°C
Dimensions video-box 118 x 25 x 86mm (W x H x D)
NA-RL5UCON65
