. Dynacord C1800FDi *** Udstillingsmodel *** .
  • På tilbud!
  • -2.440,00 kr.
Dynacord C1800FDi
search
  • Dynacord C1800FDi
  • Dynacord C1800FDi

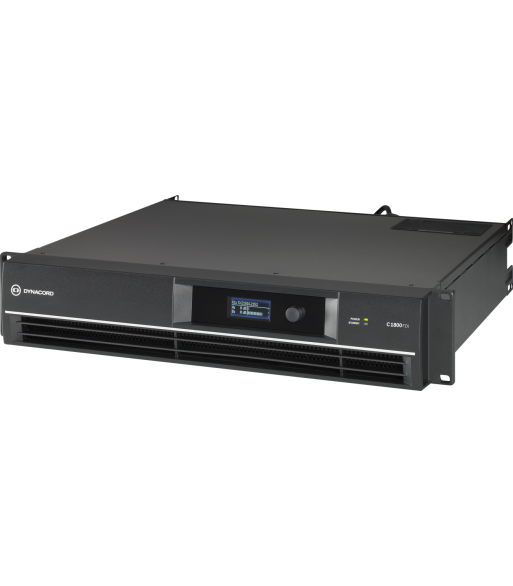

Dynacord C1800FDi *** Udstillingsmodel ***

10.440,00 kr.
8.000,00 kr. Spar 2.440,00 kr.
Inkl. moms

DSP 2 x 950 W Power Amplifier for fixed install applications

  • Professionall Installation DSP amplifier
  • Fully integrated professional speaker processing with FIR Drive technology
  • Market leading acoustic performance and rock solid reliability
  • Intuitive system control software, makes setup and control easy

DYNACORD C Series amplifiers are dedicated installation DSP amplifiers optimized for 24/7 operation. Integrated digital signal procesing provides access to professional speaker processing with FIR Drive technology. C Series amplifier utilize Class A/B resp. Class H topologies, which provide market leading acoustic performance and reliability. The connectivity is optimized for the needs of fixed install applications. For low cost of ownership a power saving standby mode is available. A front panel LC display allows local control and supervision of the amplifier. An intuitive system control software allows fast system setup, flexible system control and comprehensive supervision.

Antal
Sidste elementer på lager

Ref: C1800FDi

Load Impedance 2 _ 2.6 _ 4 _ 8 _
Maximum Output Power, Single Channel 1600 W 1300 W 950 W 480 W
Maximum Output Power, Dual Channel 1400 W 1200 W 850 W 450 W
Maximum Output Power, Bridged - - 2800 W 1700 W
Direct Drive
Load Capability
Dual Channel Bridged		 70 V Operation
2 x 1250 W (-1.5 dB)
Not recommended1		 100 V Operation
Not available2
1 x 1250 W (-1.5 dB)
Maximum RMS Voltage Swing THD = 1%, 1 kHz 65.1 V
Voltage Gain Ref.1 kHz 32.0 dB
THD at 600 W/4 _MBW = 80 kHz, 1kHz < 0.05%
IMD-SMPTE, 60 Hz, 7 kHz < 0.1%
DIM30, 3.15 kHz, 15 kHz < 0.05%
Maximum Input Level +21 dBu
Crosstalk ref. 1 kHz, at 100W/4 _ < -80 dB
Frequency Response, ref. 1 kHz Frequency Response, ref. 1 kHz
Frequency Response, ref. 1 kHz 20 k _
Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power@ 8 _ >105 dB
Output Noise, A-weighted < -68 dBu
Output Stage Topology Class AB
Power Requirements 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
Power Consumption _ Maximum Output Power @ 4 _ 700 W
Mains Fuse 240 V/230 V: T12AH; 120 V/100 V: T25AH
Protection Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, In rush current limiters, Turn on delay
Cooling Front-to-rear, 3-stage-fans
Ambient Temperature Limits +5°C to +40°C (40°F to +105°F)
Safety Class I
Color Black
Dimensions (W x H x D), mm 483 x 88 x 462.4
Weight 15.2 kg (33.5 lb)
Remote Power ON/GPIO Power remote via switch, delay time selectable Floating relay contacts (show protect mode) Inputs for preset selection
Signal Processing FIR Filters, Audio Limiters Output delay per channel, 31 band GEQ per channel, PEQ per channel, Load impedance
Accessories RMK15 (rear rack mount kit), Multi AmplifierRemote Control (MARC) software
C1800FDi
1 Enhed

Specifikke referencer
