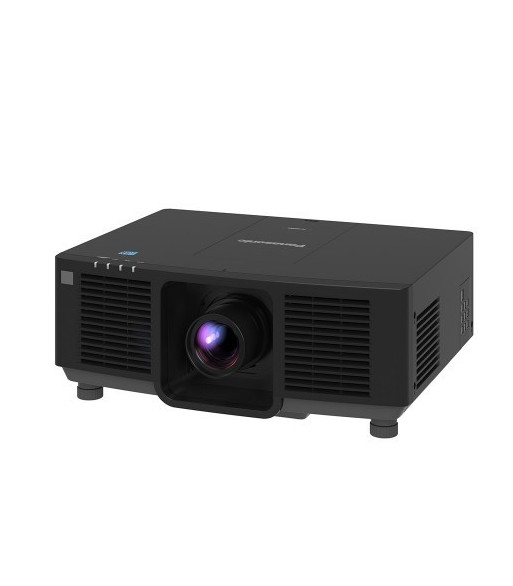

Panasonic PT-MZ780BEJ

42.500,00 kr.

Inkl. moms

3 LCD Laser projektor
7000 Ansi lumen
WUXGA opløsning 1920x1200
3 x HDMI indgange
HDCP 2.3, Deep Color, 4K/60p signal input, CEC supported
1 x VGA indgang
1 x VGA monitor out
Audio IN
Audio Out
1 x Digital Link indgang/ LAN + 1 x LAN

Styring via RS232 og LAN
Leveres inkl. standard objektiv

Antal

På fjernlager

Ref: PT-MZ780BEJ

Beskrivelse
Produktoplysninger

Projector type	LCD projectors
LCD panel \| Panel size (mm)	19.3 mm diagonal (16:10 aspect ratio)
LCD panel \| Panel size (inch)	0.76 inch diagonal (16:10 aspect ratio)
LCD Panel \| Display Method	Transparent LCD panel (x 3, R/G/B)
LCD Panel \| Drive Method	Active matrix
LCD Panel \| Pixels	2,304,000 ( Pixels 1920 x 1200) pixels x 3
Light Source	Laser diodes
Light Output1 2	7,000 lm
Resolution	WUXGA (1920 x 1200 pixels)
Contrast Ratio*1	3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1] or [2]. HDMI signal input)
Screen size (diagonal) (mm)	1.02_10.16 m (40_400 in), 1.52_10.16 m (60_400 in) with the ET-ELW22, 2.54_10.16 m (100_400 in) with the ET-ELU20, 16:10 aspect ratio
Screen size (diagonal) (inch)	1.02_10.16 m (40_400 in), 1.52_10.16 m (60_400 in) with the ET-ELW22, 2.54_10.16 m (100_400 in) with the ET-ELU20, 16:10 aspect ratio
Center-to-corner zone ratio*1	85 %
Lens	Powered zoom (throw ratio 1.61_2.76:1), powered focus F = 1.7_2.3, f = 26.8_45.5 mm (for supplied lens; optional lenses also available)
Lens shift \| Vertical(From the origin point of the lens mounter)	±67 % (powered) (for supplied lens; optional lenses also available*4)
Lens shift \| Horizontal(From the origin point of the lens mounter)	±35 % (powered) (for supplied lens; optional lenses also available*4)
Keystone Correction Range	Vertical: ±25 °, Horizontal: ±30 ° (for supplied lens; optional lenses also available*4)
Installation	Ceiling/floor, front/rear, free 360-degree installation
Terminals \| HDMI In	HDMI 19-pin x 3 (Compatible with HDCP 2.3, Deep Color, 4K/60p*5 signal input), CEC supported
Terminals \| Computer In	D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
Terminals \| Monitor Out	D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
Terminals \| Serial / Multi Sync In	D-sub 9-pin (female) x 1 for external control/link control (RS-232C compliant)
Terminals \| Multi Sync Out	D-sub 9-pin (male) x 1 for link control
Terminals \| REMOTE 1 IN	M3 stereo mini-jack x 1 for wired remote control
Terminals \| Remote 2 In	D-sub 9-pin (female) x 1 for external control (parallel)
Terminals \| Audio In	M3 stereo mini-jack x 1
Terminals \| Audio Out	M3 stereo mini-jack x 1
Terminals \| DIGITAL LINK	RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT_ compliant), 100Base-TX (Compatible with PJLink_ [Class 2], Art-Net, HDCP 2.3, Deep Color,4K/60p5 6 signal input)
Terminals \| LAN	RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink_ [Class 2], Art-Net)
Terminals \| DC Out	USB Connector (Type A) x 1 (Output 5 V/2 A)
Power Supply	AC 100_240 V, 50/60 Hz
Power Consumption*7 \| Maximum power consumption	435 W (4.8_2.3 A) (460 VA)(Power consumption is 415 W at 200_240 V)
Power Consumption*7 \| On-mode power consumption (Light power)	[NORMAL]: 395 W (100_120 V), 375 W (200_240 V)[ECO]: 285 W (100_120 V), 275 W (200_240 V)[QUIET]: 280 W (100_120 V), 270 W (200_240 V)
Cabinet Materials	Molded plastic
Filter	Included (Estimated maintenance time: approx. 20,000 hours)
Operation noise*1	32 dB (NORMAL/ECO), 26 dB (QUIET)
Dimensions (W × H*8 × D)	561 x 224 x 439 mm (22 3/32_ x 8 13/16_ x 17 9/32_ ) (with supplied lens)
Weight*9	Approx. 18.6 kg (41.0 lbs) (with supplied lens)
Operating Environment	Operating temperature: 0_45 °C (32_113 °F)*10, operating humidity: 20_80 % (no condensation)
Applicable software/application	Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Smart Projector Control for iOS/Android_, Geometry Manager Pro*11
Note	1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped. 2 When [PICTURE MODE] is set to [DYNAMIC] and [LIGHT POWER] is set to [NORMAL]. 3 Around this time, light outputwill have decreased to approximately 50 % of its original level ([PICTURE MODE]: [DYNAMIC], [DYNAMIC CONTRAST] set to [2]). Estimated time until light output declines to 50 % varies depending on environment. 4 Lens-shift range and keystone correction range may vary depending on lens.5 4K signals are converted to the projector's resolution (1920 x 1200 pixels) upon projection. 6 YPBPR4:2:0 format only for 4K/60p signals input via DIGITAL LINK. 7 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards.On-mode power consumption measured at 25 °C (77 °F) operating temperature at an altitude of 700 m (2,297 ft).8 With legs at shortest position.9 Average value. May differ depending on the actual unit. 10 Note that the projector cannot be used at altitudes 2,700 m (8,858 ft) or higher abovesea level. In the following operating environments, light output may be reduced to protect the projector: when the projector is used at altitudes below 700 m (2,297 ft) and ambient temperature is 38 °C (100 °F) or higher; when the projector is used at altitudes between 700 m (2,297 ft) and1,400 m (4,593 ft) exclusive and ambient temperature is 36 °C (97 °F) or higher; when the projector is used at altitudes between 1,400 m (4,593 ft) and 2,100 m (6,890 ft) exclusive and ambient temperature is 34 °C (93 °F) or higher; and when the projector is used at altitudes between2,100 m (6,890 ft) and 2,700 m (8,858 ft) exclusive and ambient temperature is 32 °C (90 °F) or higher. *11 Some functions available in Geo Pro software are not supported by the PT-MZ880 Series.

Mærker Panasonic

Reference PT-MZ780BEJ

Specifikke referencer
