Bakkamera Interface til Mercedes - NTG6

3.999,00 kr.
Inkl. moms
Antal
På fjernlager

Ref: NA-RL4MBN6

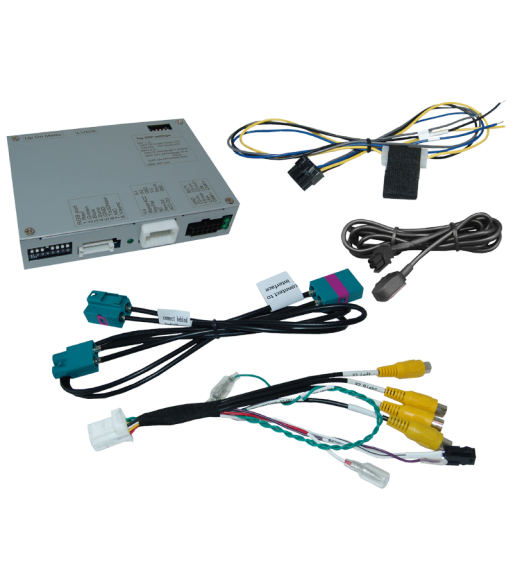

r.LiNK video inserter for rear-view camera, front camera with auto switching and 2 video-sources. Compatible with Mercedes Benz MBUX NTG6 systems with 7inch or 10.25inch monitor.



The r.LiNK interface allows to insert a rear-view camera, a front camera with auto switching and two different video sources (e.g. USB-player, DVB-T2 tuner, ...) to the factory-infotainment system of the vehicle manufacturer.



Product features

  • Video-inserter for factory-infotainment systems
  • 1 CVBS rear-view camera video-input
  • 1 CVBS front camera video-input
  • 2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner, ...)
  • Automatic switching to rear-view camera input on engagement of the reverse gear
  • Automatic front camera switching after reverse gear for 10 seconds
  • Activatable parking guide lines for rear-view camera (not available for all vehicles)
  • Video-in-motion (ONLY for connected video-sources)
  • Video-inputs PAL and NTSC compatible

Bemærk:

Fremtidige ændringer/opdateringer af køretøjets software kan forårsage funktionsfejl i interfacet.

Det kan muligvis klares ved en softwareopdatering af interfacet men det kan vi ikke garantere.

En evt. opdatering koster 500,- og interfacet skal indsendes for egen regning. Arbejdsomkostninger for og andre udgifter forbundet med softwareopdateringerne refunderes ikke.

Derfor anbefales det ikke at opdatere bilens multimedie system.

Compatibility

BrandModelNavigation
MB A-class (W177) from 05/2018,
B-class (W247) from 12/2018,
CLA coupe (C118) from 03/2019,
CLA shooting B (X118) from 07/2019,
GLB (X247) from 09/2019,

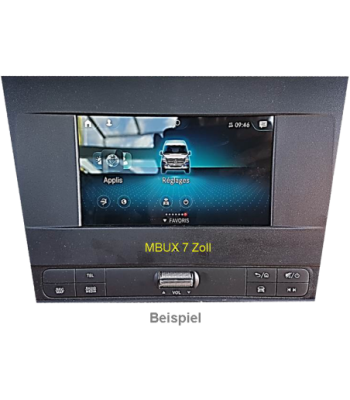

GLC (X253) from 2019		 Comand Online NTG6 - MBUX with 7inch monitor
A-class (W177) from 05/2018,
B-class (W247) from 12/2018,
CLA coupe (C118) from 03/2019,
CLA shooting B (X118) from 07/2019,
EQC (N293) from 2019,
GLB (X247) from 09/2019,
GLC (X253) model year from 2019,
GLE coupe (C167) model year from 2019,
GLE SUV (W167) model year from 2019,
GLS-class (X166) model year from 2019,
V-class (W447) from about 03/2020
Citan (W420) from 2021 - MBUX  with 7inch monitor		 Comand Online NTG6 - MBUX with 10.25inch monitor
Sprinter (W907/910) model year from 2018 Comand Online NTG6 - MBUX with 7inch or 10.25inch monitor




Limitations

Video only The interface inserts ONLY video signals into the infotainment. For inserting audio signals either the possibly existing factory audio-AUX-input or a FM-modulator can be used. If 2 audio sources shall be connected to the infotainment, an additional electronic is necessary to switch them.
Factory rear-view camera Automatically switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back an additional electronic part is required.
After market front camera The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad.
Guide lines Available only for vehicles with 7inch monitor, not for 10inch monitor. If the interface does not receive the required information from the vehicle CAN-bus, guide lines wonâ__t be supported.
Factory OBD socket The permanent connection of an OBD dongle product, e.g. for a tank app or an electronic driver"s logbook, may result in partial failure of switching to the rear view camera. If the switching signal is obtained from the CAN bus. In this case an external switching signal from the reverse gear light and an ordinary open relay or filter are required for the installation of a rear-view camera.




Connectors

  • Video-insertion: double Fakra
  • Power and CAN-bus: open cable ends
  • Video-input (2x): RCA female connector
  • Rear-view camera-input: RCA female connector
  • Front camera-input: RCA female connector



Specifications

Operating voltage 12V DC (7~25V)
Standby current 10mA
Current consumption 270mA
Video input 0.7~1V
Video input formats PAL/NTSC
Operating temperature -40°C to +85°C
Dimensions video-box 119 x 24 x 100mm (W x H x D)
NA-RL4MBN6
