. Panasonic PT-VX615NEJ .

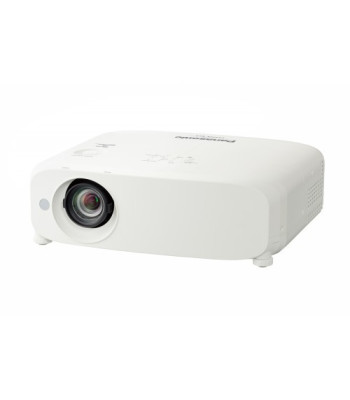

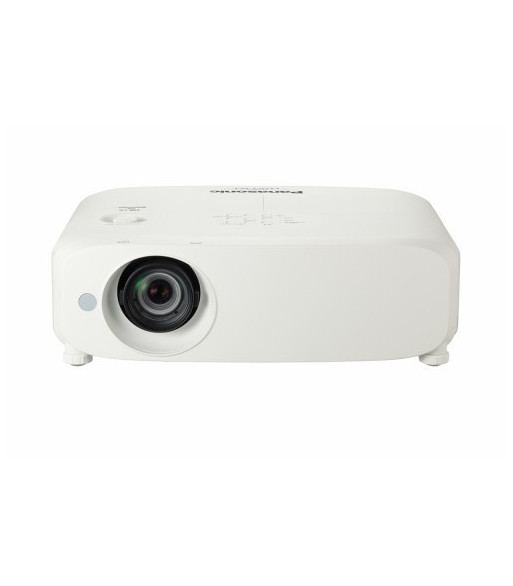

Panasonic PT-VX615NEJ
search
  • Panasonic PT-VX615NEJ
  • Panasonic PT-VX615NEJ

Panasonic PT-VX615NEJ

14.162,50 kr.
Inkl. moms

3 LCD

XGA (1024x768)

5500 Ansilumen

Digital Link

USB Memory Wiewer

Wifi Certified Miracast

Antal
På fjernlager

Ref: PT-VX615NEJ

Power Supply AC 100-240 V, 50/60 Hz
Power Consumption *1 385 W (North America), 400 W (other countries) When [STANDBY MODE] is set to [ECO] : approx. 0.3 W (North America, Taiwan), approx. 0.5 W (Other countries) When [STANDBY MODE] is set to [NORMAL] and [IN STANDBY MODE] of [AUDIO SETTING] is set to [OFF]: approx. 12 W
BTU Value 1,314 BTU (North America), 1,365 BTU (Other countries)
LCD Panel | Panel Size 16.3 mm (0.64 inches) diagonal (16:10 aspect ratio)
LCD Panel | Display Method Transparent LCD panel (x 3, R/G/B)
LCD Panel | Drive Method Active matrix method
LCD Panel | Pixels 2,304,000 (1920 x 1200) x 3, total of 6,912,000 pixels
Lens Manual zoom (1.6x), manual focus, F 1.6- 1.9, f 15.31 - 24.64 mm
Lens | Throw Ratio 1.17-1.90:1
Lamp 280 W UHM lamp
Projection Size 0.76-7.62 m (30-300 inches) diagonally, 16:10 aspect ratio
Colors Full color (16,777,216 colors)
Light Output *2 5,500 lumens (Lamp power: Normal, Dynamic mode, Iris off, Daylight View:off, Auto Power Save:off)
Center-to-Corner Uniformity 85%
Contrast Ratio*2 16,000:1(all white/all black, Image mode:Dynamic, Lamp power: Normal, Iris: On)
Resolution 1024 x 768 pixels (Input signals that exceed this resolution will be converted to 1024 x 768 pixels.)
Lamp Replacement Cycle Normal: 5,000 hours, Eco1: 6,000 hours, Eco2: 7,000 hours
Filter Replacement Cycle 7,000 hours (Period varies depending on usage environment. It can be washed and reused up to 2 times.)
Scanning Frequency | HDMI/DIGITAL LINK _Moving image signal resolution: 480i (525i)*3, 576i (625i)*3, 480p (525p), 576p (625p), 720 (750)/60p, 720 (750)/50p, 1080 (1125)/60i, 1080 (1125)/50i, 1080 (1125)/25p, 1080 (1125)/24p, 1080 (1125)/24sF, 1080 (1125)/30p, 1080 (1125)/60p, 1080 (1125)/50p Still image signal resolution: 640 x 400 to 1920 x 1200 (non-interlace) _Dot clock frequency: 25 MHz to 162 MHz
Scanning Frequency | RGB fH: 15- 91kHz, fV: 24 - 100Hz, dot clock: 162 MHz or less
Scanning Frequency | YPBPR (YCBCR) 480i (525i): fH 15.73 kHz; fV 59.94 Hz, 576i (625i): fH 15.63 kHz; fV 50 Hz, 480p (525p): fH 31.47 kHz; fV 59.94 Hz, 576p (625p): fH 31.25 kHz; fV 50 Hz, 720 (750)/60p: fH 45.00 kHz; fV 60 Hz, 720 (750)/50p: fH 37.50 kHz; fV 50 Hz, 1080 (1125)/60i: fH 33.75 kHz; fV 60 Hz, 1080 (1125)/50i: fH 28.13 kHz; fV 50 Hz, 1080 (1125)/25p: fH 28.13 kHz; fV 25 Hz, 1080 (1125)/24p: fH 27.00 kHz; fV 24 Hz, 1080 (1125)/24sF: fH 27.00 kHz; fV 48 Hz, 1080 (1125)/30p: fH 33.75 kHz; fV 30 Hz, 1080 (1125)/60p: fH 67.50 kHz; fV 60 Hz, 1080 (1125)/50p: fH 56.25 kHz; fV 50 Hz
Scanning Frequency | Video fH: 15.73 kHz / 15.63 kHz fV: 59.94 Hz / 50 Hz [NTSC/NTSC4.43/PAL/PAL60/PAL-N/PAL-M/SECAM]
Installation CEILING/DESK/AUTO, FRONT/REAR
Speaker 4.0 cm round-type x 1
Maximum Usable Volume Output 10 W (monaural)
Optical Axis Shift Vertical 0 - +40% from center of screen (manual) U/D ratio 9:1 (when on top end)
Terminals | Computer 1 In high-density D-Sub 15 p (female) [RGB signal] R: 0.7 Vp-p ,75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G) , 75 ohms, B: 0.7 Vp-p ,75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic [YPBPR signal] Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms
Terminals | Computer 2 In/1 Out high-density D-Sub 15 p (female) [RGB signal] R: 0.7 Vp-p ,75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G) , 75 ohms, B: 0.7 Vp-p ,75 ohms HD, VD/SYNC: TTL, high impedance, positive/negative automatic [YPBPR signal] Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms
Terminals | Video In Pin jack 1.0 Vp-p, 75 ohms
Terminals | HDMI 1 In HDMI 19 pin, HDCP and Deep color compatible Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz)
Terminals | HDMI 2 In HDMI 19 pin, HDCP and Deep color compatible Audio signals : Linear PCM (Sample frequency : 48 kHz/44.1 kHz/32 kHz)
Terminals | Audio In 1 M3 stereo mini jack, 0.5 V[rms], input imedance 22 k ohms and more
Terminals | Audio In 2 M3 stereo mini jack, 0.5 V[rms], input imedance 22 k ohms and more
Terminals | Audio In 3 Pin jack x 2(L-R), 0.5 V[rms], input imedance 22 k ohms and more
Terminals | Variable Audio Out M3 stereo mini jack, 0 V[rms] to 2.0 V[rms] variable, output imedance 2.2 k ohms and less
Terminals | USB A (Viewer/Pairing) USB connector (type A)
Terminals | USB B (Diplay) USB connector (type B)
Terminals | Serial In D-sub 9 pin, RS-232C compliant, for computer control use
Terminals | DIGITAL LINK/LAN RJ-45, for network, DIGITAL LINK connection, PJLink_ compatible, 100Base-TX
Power Cord Length 3.0 m(9 ft 10 in)(India), 2.0 m(6 ft 7 in)(Other countries )
Cabinet Materials Molded plastic
Dimensions (W x H x D) 389 x 125*4x 332mm (15-5/16 x 4-29/32*4x 13-1/16inches)
Weight *5 Approx. 4 .9 k g (10.8 lbs)
Noise Level *2 37dB (LAMP POWER: NORMAL/ECO1), 29dB (LAMP POWER: ECO2)
Operating Environment | Temperature*6 0°C (32°F) to 40°C (104°F) (Elevation: below 1,200 m (3,937')) 0°C (32°F) to 30°C (86°F) (Elevation: 1,200 m (3,937') - 2,700m (8,858') )
Operating Environment | Humidity 20% to 80% (no condensation)
Note Weights and dimensions shown are approximate. Specifications subject to change without notice. *1 When the Standby mode is set to Eco, network functions such as power on over the LAN network will not operate. Also, only certain commands can be received for external control using the serial terminal. *2 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards. *3 Only compatible with dot clock frequency of 27 MHz (pixel repetition signal) for 480i (525i) and 576i (625i) *4 When adjustable feet shortened. *5 Average value. May differ depending on models. *6 If [LAMP POWER] set to [NORMAL], [LAMP MODE] will be switched to [ECO1] automatically when the operating environment temperature is 35°C (95°F) to 40°C (104°F).
Brightness 5500 lumens
Technology LCD
Panasonic
PT-VX615NEJ
