Dette kamera interface giver dig mulighed for at tilføje et front- og/eller bagkamera til den eksisterende OEM-skærm.
Passer til BMW-biler med NBT Navigation eller NBT EVO ID4 Navigation på en 6,5", 8,8" eller 10,25" OEM-skærm.
Passer på (NBT EVO ID4 Navigation):
BMW - 1 Series (F20/F21) (2011 - 2019)
BMW - 2 Series (F22/F45/F46) (2014 >)
BMW - 3 Series (F30/F31/F34) (2012 - 2019)
BMW - 6 series (F06/F12/F13) (2011 - 2018)
BMW - X3 (F25) (2011 -2017)
Passer på (NBT Navigation):
BMW - 1 Series (F20/F21) (2011 - 2019)
BMW - 2 Series (F22/F45/F46) (2014 >)
BMW - 3 Series (F30/F31/F34) (2012 - 2019)
BMW - 5 Series (F10/F11) (2010 - 2016)
BMW - 6 series (F06/F12/F13) (2011 - 2018)
BMW - 7 series (F01/F02) (2008 - 2015)
BMW - X3 (F25) (2011 -2017)
BMW - X5 (F15) (2013 - 2018)
Mini - Countryman 1st Gen (R60) (2010 - 2016)

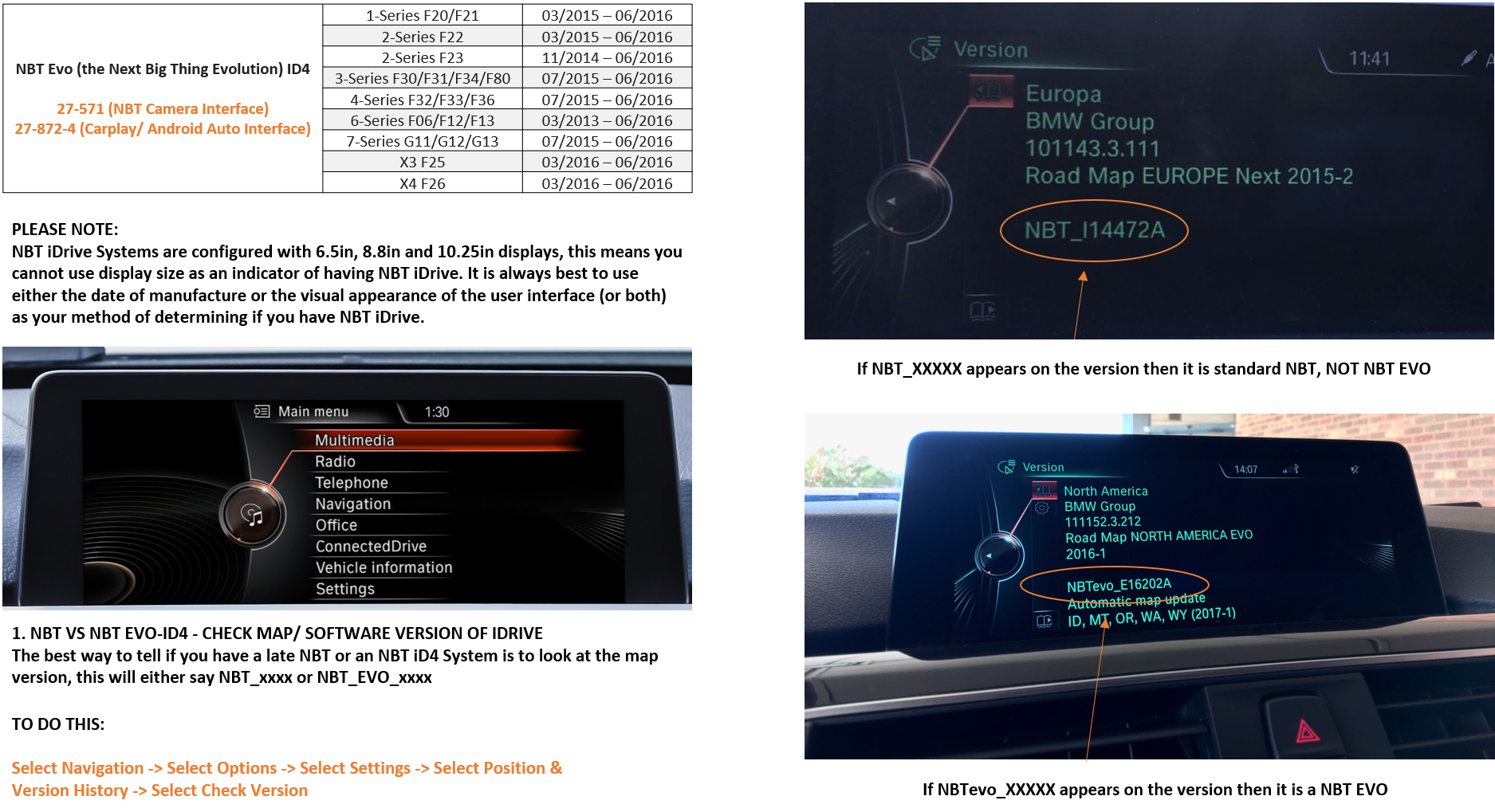

NBT EVO ID4

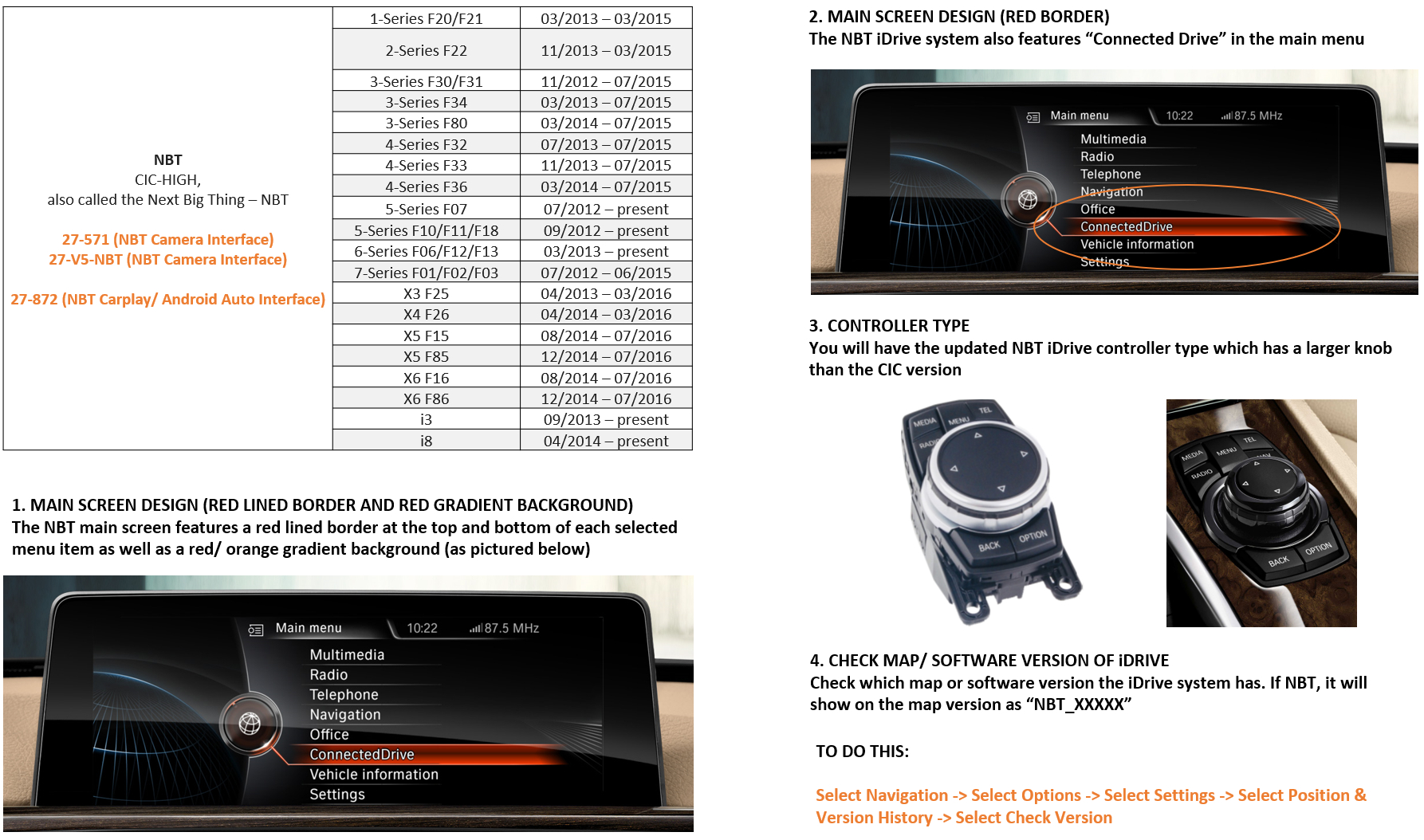

NBT and NBT EVO ID4 look very similiar, they both have the same appearance and functionality. Please check which software version you have before purchasing. This can be achieved by reading below:
NBT Navigation System
The NBT (Next Big Thing or CIC-HIGH was a further update to BMW's CIC iDrive system and was introduced in late 2012. Changes from the previous system include extensive hardware and software changes including cosmetic enhancements, faster processor, more memory, detailed 3D maps and improved routing.

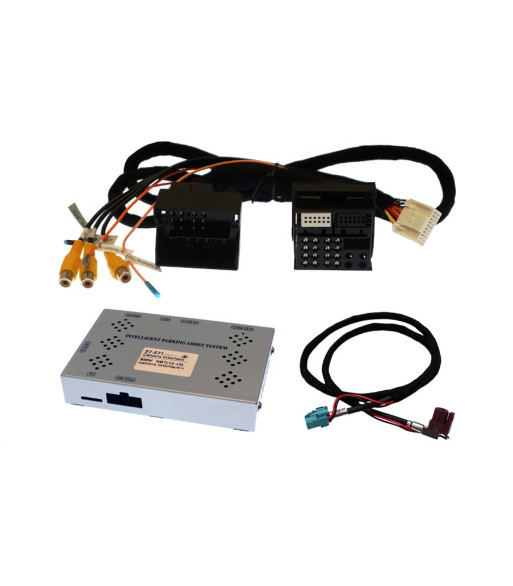

Interface Features
- Plug and Play interface
- Front view camera input (CVBS)
- CVBS Rear view camera input (Or 360 panoramic input with IPAS,PDC)
- CVBS video input for DVR/ digital TV or mirrorlink
- Supports Intelligent parking assist system including PDC (Parking Distance Control) and FPG (Flexible Parking Guidelines)
- Adjust FPG position for 8.8 and 10.25 inch screen
- Supports power supply for rear view camera
- Power supply for DVR device
- PAL/ NTSC camera compatible
- Further software update available via TF card
