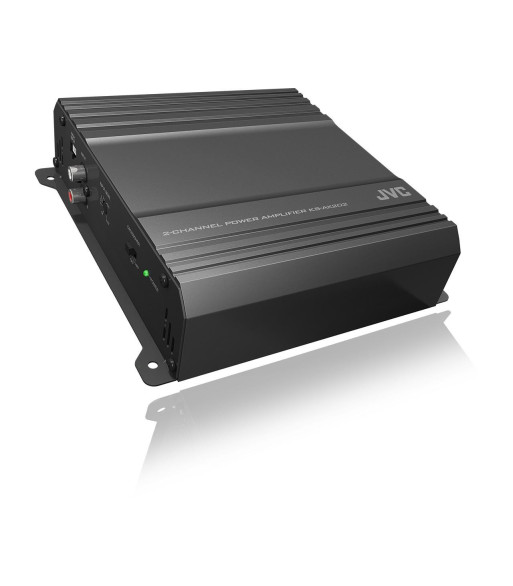

JVC Forstærker KS-AX202
search
  • JVC Forstærker KS-AX202

JVC Forstærker KS-AX202

899,00 kr.
749,00 kr. Spar 150,00 kr.
Inkl. moms

Features

  • Max. Power Output of 300W
  • RMS Power Output: 40W x 2 at 4 ohms, 60W x 2 at 2 ohms, 120W x 1 at 4 ohms, Bridged
  • Class-AB Circuit
  • MOS-FET Power Supply
  • Frequency Response: 5 - 50,000Hz (-3dB)
  • S/N: 80dBA at 2Vrms
  • THD: < 0.06%
  • HPF (150Hz, -12dB)
  • LPF (80Hz, -12dB)
  • High Level Input :L/R
Antal
På fjernlager

Ref: KS-AX202

KS-AX202 - Amplifier

Amplifier
Maximum Power Output
300W
RMS Power Output (4 ohm) [ 1% THD 14.4V]
40W x 2 (20 - 20,000Hz)
RMS Power Output (2 ohm) [ 1% THD 14.4V]
60W x 2 (20 - 20,000Hz)
RMS Power Output (Bridged 4 ohm) [ 1% THD 14.4V]
120W x 1 (1,000Hz)
Class
Class-AB
Frequency Response (+0, -3dB)
5 - 50,000Hz
Total Hamonic Distortion
< 0.06%
Signal-to-Noise Ratio (reference: 1W into 4 ohms), CEA-2006 Compliant
> 80dB
Load Impedance Allowance
2 - 8 ohms
HPF
150Hz (12dB)
LPF
80Hz (12dB)
RCA Input
L/R
High Level Input
Yes
Input Sensitivity
0.2 - 15V
Protection Circuitry (Thermal / Short Circuit / Overload / DC Offset)
Yes
Anti-Pop Circuit
Yes
Dimensions (W x H x D)
187 x 49.5 x 185mm (7-3/8" x 2" x7-5/16 ")
Weight
1.2kg (2.7lbs)
KS-AX202
