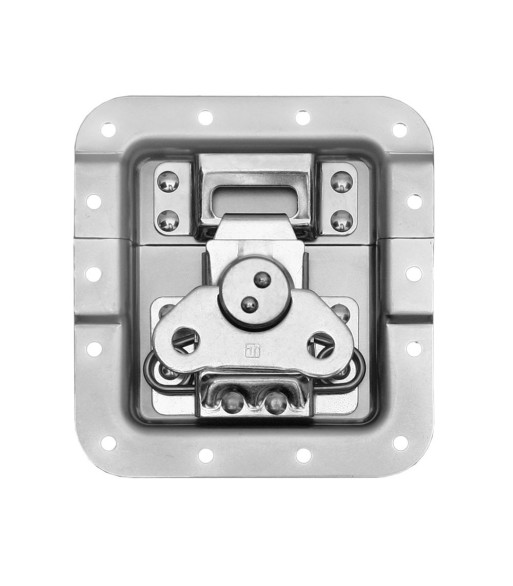

Butterfly Latch V3 short cranked 14 mm deep
search
  • Butterfly Latch V3 short cranked 14 mm deep

Butterfly Latch V3 short cranked 14 mm deep

169,00 kr.
Inkl. moms
172531

The same Large Butterfly "V3" with "push-down" function as in the 172511 but in a shorter dish. The entire mechanism is identical thereby having the same strength and loading capabilities. The dish is shorter giving a chunky look and easier use in smaller cases and flatter lids.

Our V3, V4 and V5 Butterflies have a patented ´push-down` mechanism that lifts the hook out of the keeper plate on opening and leads it back into the dish on closing. This offers an ideal handling and minimises risk of injury and damage.

Antal
På fjernlager

Ref: 172531

Product typeCatches
TypeButterfly Latches
MaterialSteel
Surfacegalvanized
Mounting hole diameter5.1 mm
LockableNo
Dish typecranked
Dish sizeshort
Dish depth14 mm
Rivet protection designNo
With push-out springNo
Push-flat functionYes
Weight0,438 kg
Adam Hall Hardware
172531

Specifikke referencer
