. RIGGATEC Halfcoupler Small, Silver, max. 75 kg (32 - 35 mm) .

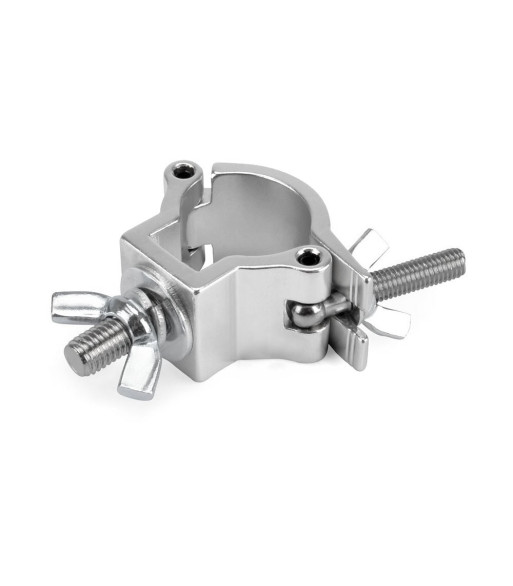

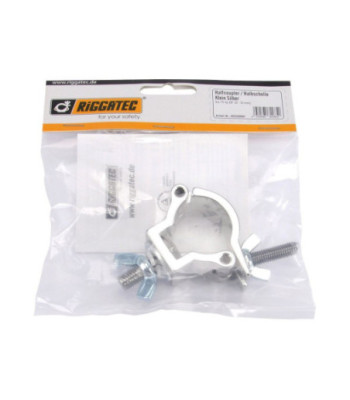

RIGGATEC Halfcoupler Small
search
  • RIGGATEC Halfcoupler Small
  • Silver
  • max. 75 kg (32 - 35 mm)

RIGGATEC Halfcoupler Small, Silver, max. 75 kg (32 - 35 mm)

69,00 kr.
Inkl. moms
400200960
  • TUV approved (certificate can be sent on request)
  • Incl. device screw M10 zinc coated, retaining ring, grommet and wing nut

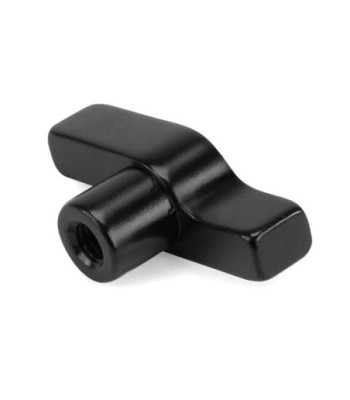

  • Lock screw M8 zinc coated with grommet and wing nut
Antal
På fjernlager

Ref: RIG400200960

Product typeTruss Accessories
Suitable for tube diameter32 - 35 mm
Tensile load75 kg
Shear load max.30 kg
MaterialAluminium
Clamp width30 mm
Length64 mm
Width30 mm
Height66 mm
Weight0,13 kg
RIGGATEC
RIG400200960

Specifikke referencer

16 andre varer i den samme kategori:

RIGGATEC Halfcoupler Slim Black up to 750 kg MKII (48 - 51 mm)
search

RIGGATEC Halfcoupler Slim...

400200073
  • For 48 - 51 mm pipe diameter
  • Resilient up to 750 kg (tensile load)
  • TUV approved (certificate can be sent on request)
  • Clamp width: 30 mm
  • Maximum shearing load: 100 kg
  • Material: Aluminum 6061 T6, black
  • Incl. device screw M12 black, retaining ring, grommet and wing nut
  • Lock screw M8 zinc coated with grommet and wing nut
  • Outer dimensions: 113 x 30 x 81 mm (length x width x height without device screw)
  • Weight: 0.48 kg
Pris 119,00 kr.

På fjernlager

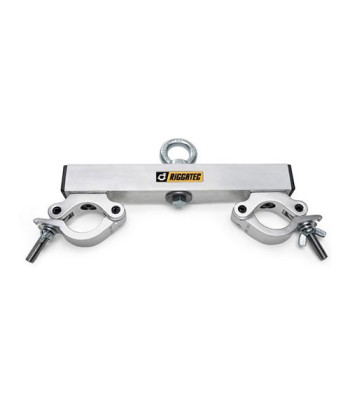

RIGGATEC Hanging Point for 290 mm Trusses up to 170 kg
search

RIGGATEC Hanging Point for...

RIG 400 201 100
  • For safe and compliant suspension of 3-point trusses
  • For traverses with a pipe diameter of ca. 48 - 51 mm
  • Suitable for operation over people
  • The permissible vertical load capacity for use above persons is 170 kg.
  • Statically tested
  • For applications in the field of exhibition stand construction, shopfitting, event technology

Statically tested according to:

  • DIN 4113 Aluminium in building construction (02/1958, 05/1980 Part 1, A109/2002, 09/2002 Part 2)
  • BGV C1: BG regulation - event and production facilities for scenic performances (04/1998)
Pris 1.049,00 kr.

På fjernlager

RIGGATEC Halfcoupler Small
search

RIGGATEC Halfcoupler Small,...

400200086
  • Incl. device screw M10 black coated and M10 ring eye C15E coated
  • Lock screw M12 zinc coated with retaining ring, grommet and wing nut
Pris 159,00 kr.

På fjernlager

RIGGATEC Hanging Points for 220 mm Traverses up to 75 kg
search

RIGGATEC Hanging Points for...

400200685
  • For safe and proper suspension of 3-point trusses
  • For traverses with a diameter of about 32-35 mm
  • Suitable for use on people
  • The permissible vertical load capacity for use above persons is 75 kg
  • Statically checked
  • For use in exhibition stand construction, retail, event technology

Statically tested according to:

  • DIN 4113 Aluminium in building construction (02/1958, 05/1980 Part 1, A109/2002, 09/2002 Part 2)
  • BGV C1: BG regulation - event and production facilities for scenic performances (04/1998)
Pris 919,00 kr.

På fjernlager

RIGGATEC Swivel Coupler Heavy Black max. Load 750 kg MKII (48 - 51 mm)
search

RIGGATEC Swivel Coupler...

400200083
  • For 48 - 51 mm pipe diameter
  • 360° turnable
  • TUV approved (certificate can be sent on request)
  • Resilient up to 750 kg (tensile load)
  • Clamp width: 51 mm
  • Maximum shearing load: 100 kg
  • Material: Aluminum 6061 T6, black
  • Linked with bolt
  • Lock screw M12 zinc coated with retaining ring, grommet and wing nut
  • Outer dimensions: 113 x 51 x 162 mm (length x width x height)
  • Weight: 1,33 kg
Pris 309,00 kr.

På fjernlager

RIGGATEC Halfcoupler Heavy max. Load 750 kg (60 mm)
search

RIGGATEC Halfcoupler Heavy...

400200036
  • TUV approved (certificate can be sent on request)
  • Incl. device screw M12 black, retaining ring, grommet and wing nut
  • Lock screw M8 zinc coated with grommet and wing nut
Pris 219,00 kr.

På fjernlager

16 mm Bolt with M10 Internal Thread for SCP710B
search

16 mm Bolt with M10...

SS 019

The SS019 is a 16 mm bolt with M10 thread designed for the SCP710B universal clamp. It is made of stainless steel with a thread depth of 25 mm.

Pris 49,00 kr.

På lager

Universal Hook Clamp with Toggle black
search

Universal Hook Clamp with...

SUPER CLAMP
  • Perfect for lighting and multimedia applications
  • Adjustable clamping lever - can be operated in any position
  • Full metal (stainless steel and die-cast aluminium alloy)
  • For mounting on round and square tubes as well as on flat objects
  • Clamping range: 13 _ 55 mm
  • 5/8" (16 mm) hexagonal or circular pin insert
  • 1 x M6 and 2 x M5 thread
  • TÜV certified
  • Max. load capacity: 20 kg
  • Not oxidising
  • Various mounting bolts available as an option
Pris 249,00 kr.

På lager

RIGGATEC Halfcoupler Small
search

RIGGATEC Halfcoupler Small,...

400200968
  • All screws and fasteners are made of stainless steel
  • Incl. device screw M10 stainless Steel, retaining ring, grommet and wing nut
  • Lock screw M8 stainless Steel with grommet and wing nut
Pris 119,00 kr.

På fjernlager

RIGGATEC Halfcoupler Small black max. 75kg (32 - 35 mm) stainless steel
search

RIGGATEC Halfcoupler Small...

400200970
  • TUV approved (certificate can be sent on request)
  • Incl. device screw M10 zinc coated, retaining ring, grommet and wing nut
  • Lock screw M8 zinc coated with grommet and wing nut
Pris 69,00 kr.

På fjernlager

Universal Hook Clamp with Clamping Lever MK2 + SS018 Bolt
search

Universal Hook Clamp with...

SUPER CLAMP MK2 SET 1

When you face challenges like mounting lighting equipment, positioning cameras or loudspeakers at the proper angle, hanging Molton and backdrops, or mounting other equipment safely on a truss, you need just the right companion you can trust in.

The new Super Clamp now offers you the possibility to fix heavy objects such as lighting equipment easily with one click. The "One-Click Auto-Lock", snaps the fixing bolt directly into place.

Whether working as a photographer, a YouTuber in a home studio, or as a lighting technician attaching lights to a truss, the Super Clamp gives your creativity the freedom it requires.

As well as having an impressive load capacity, the rugged Super Clamp can be used in practically any situation and on any surface - curved or flat. Your new clamping companion can support up to 20 kg and enjoys German TÜV certification.

See for yourself how quick and easy it is to mount your equipment securely using the Super Clamp.

Pris 329,00 kr.

På fjernlager

RIGGATEC Universal Projector Mount for Mounting on a Truss
search

RIGGATEC Universal...

608153380
  • Compatible with all standard projectors manufacturers
  • Wide range of accessories including Riggatec Halfcoupler,small silver(diameter 48-51mm)
  • Easy installation
  • Rotates 360° + tilt adjustment
  • Also suitable for sloping surfaces
  • max. loading capacity 13,50kg
  • The illustrated Beamer is not included
Pris 819,00 kr.
