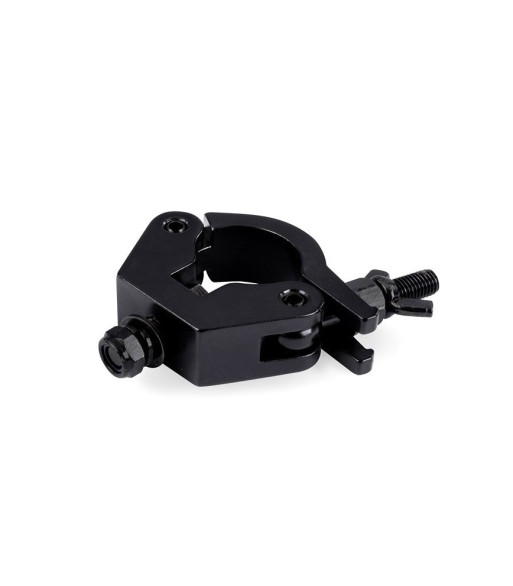

RIGGATEC Halfcoupler Slim Black up to 750 kg MKII (48 - 51 mm)
search
  • RIGGATEC Halfcoupler Slim Black up to 750 kg MKII (48 - 51 mm)

RIGGATEC Halfcoupler Slim Black up to 750 kg MKII (48 - 51 mm)

119,00 kr.
Inkl. moms
400200073
  • For 48 - 51 mm pipe diameter
  • Resilient up to 750 kg (tensile load)
  • TUV approved (certificate can be sent on request)
  • Clamp width: 30 mm
  • Maximum shearing load: 100 kg
  • Material: Aluminum 6061 T6, black
  • Incl. device screw M12 black, retaining ring, grommet and wing nut
  • Lock screw M8 zinc coated with grommet and wing nut
  • Outer dimensions: 113 x 30 x 81 mm (length x width x height without device screw)
  • Weight: 0.48 kg
Antal
På fjernlager

Ref: RIG400200073

Product typeTruss Accessories
Suitable for tube diameter48 - 51 mm
Tensile load750 kg
Shear load max.100 kg
ColorBlack
MaterialAluminium
Clamp width30 mm
Length113 mm
Width30 mm
Height81 mm
CertificationTÜV-certified
Weight0,46 kg
RIGGATEC
RIG400200073

Specifikke referencer
