. RIGGATEC LCD / Plasma Truss Mount 37-65", max 45 kg for FD 31 - HD 44 .
RIGGATEC LCD / Plasma Truss Mount 37-65"
search
  • RIGGATEC LCD / Plasma Truss Mount 37-65"
  • max 45 kg for FD 31 - HD 44
  • RIGGATEC LCD / Plasma Truss Mount 37-65"

RIGGATEC LCD / Plasma Truss Mount 37-65", max 45 kg for FD 31 - HD 44

1.229,00 kr.
Inkl. moms
608154495

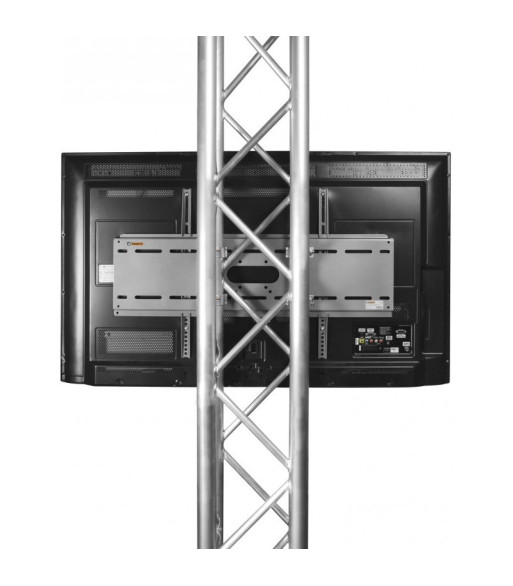

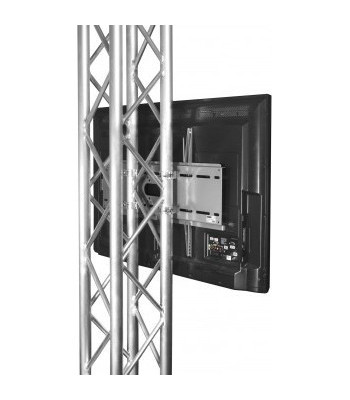

The Riggatec LCD / Plasma TV Truss mount provides professional support for monitors and TVs up to 65 "for use on e.g. fairs and events. The included clamps and the easy-to-install anti-theft protection does not only make it easy to mount devices onto trusses, but also secures them with a padlock (not included) problem-free.

Antal
På fjernlager

Ref: RIG608154495

  • Capacity: 45kg
  • Compatible with all 37 "- 65" devices
  • Anti-theft protection
  • Supports all VESA standards up to 700 x 400 mm
  • Padlock not included
  • Incl. Assembly instructions and mounting material
  • Incl. 4 x Riggatec Half Clamp - Halfcoupler small silver up to 100 kg (48 - 51 mm)
  • Compatibility: VESA standards up to 700 x 400 mm and 37" - 65" devices

Product typeTruss Systems Accessories
TypeHolder
Tensile load45 kg
MaterialAluminium
MaterialSteel
Clamp fixing diameter48 - 51 mm

Mounting plate

Length820 mm
Width220 mm
Height70 mm
Weight4,5 kg
RIGGATEC
RIG608154495

Specifikke referencer

16 andre varer i den samme kategori:

Universal Hook Clamp with Toggle black
search

Universal Hook Clamp with...

SUPER CLAMP
  • Perfect for lighting and multimedia applications
  • Adjustable clamping lever - can be operated in any position
  • Full metal (stainless steel and die-cast aluminium alloy)
  • For mounting on round and square tubes as well as on flat objects
  • Clamping range: 13 _ 55 mm
  • 5/8" (16 mm) hexagonal or circular pin insert
  • 1 x M6 and 2 x M5 thread
  • TÜV certified
  • Max. load capacity: 20 kg
  • Not oxidising
  • Various mounting bolts available as an option
Pris 249,00 kr.

På lager

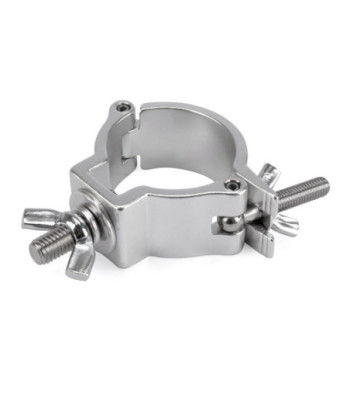

RIGGATEC Halfcoupler Small max. 100 kg (48 - 51 mm) Stainless Steel
search

RIGGATEC Halfcoupler Small...

400200002
  • All screws and fasteners are made from stainless steel
  • Incl. device screw M10 stainless steel, retaining ring, grommet and wing nut
  • Lock screw M8 stainless steel with grommet and wing nut
Pris 119,00 kr.

På fjernlager

RIGGATEC Halfcoupler Heavy
search

RIGGATEC Halfcoupler Heavy,...

400200010
  • TUV approved (certificate can be sent on request)
  • Incl. device screw M10 zinc coated, retaining ring, grommet and wing nut
  • Lock screw M12 zinc coated with retaining ring, grommet and wing nut
Pris 159,00 kr.

På fjernlager

RIGGATEC Halfcoupler Small black max. 75kg (32 - 35 mm) stainless steel
search

RIGGATEC Halfcoupler Small...

400200970
  • TUV approved (certificate can be sent on request)
  • Incl. device screw M10 zinc coated, retaining ring, grommet and wing nut
  • Lock screw M8 zinc coated with grommet and wing nut
Pris 69,00 kr.

På fjernlager

RIGGATEC Hanging Points for 220 mm Traverses up to 75 kg
search

RIGGATEC Hanging Points for...

400200685
  • For safe and proper suspension of 3-point trusses
  • For traverses with a diameter of about 32-35 mm
  • Suitable for use on people
  • The permissible vertical load capacity for use above persons is 75 kg
  • Statically checked
  • For use in exhibition stand construction, retail, event technology

Statically tested according to:

  • DIN 4113 Aluminium in building construction (02/1958, 05/1980 Part 1, A109/2002, 09/2002 Part 2)
  • BGV C1: BG regulation - event and production facilities for scenic performances (04/1998)
Pris 919,00 kr.

På fjernlager

RIGGATEC Halfcoupler Heavy Black max. Load 500 kg (48 - 51 mm)
search

RIGGATEC Halfcoupler Heavy...

400200065
  • TUV approved (certificate can be sent on request)
  • Incl. device screw M10 zinc coated, retaining ring, grommet and wing nut
  • Lock screw M12 zinc coated with retaining ring, grommet and wing nut
Pris 159,00 kr.

På fjernlager

RIGGATEC Halfcoupler Small
search

RIGGATEC Halfcoupler Small,...

400200086
  • Incl. device screw M10 black coated and M10 ring eye C15E coated
  • Lock screw M12 zinc coated with retaining ring, grommet and wing nut
Pris 159,00 kr.

På fjernlager

RIGGATEC Half Clamp for Corner Bracing Sleeve (48 - 51 mm)
search

RIGGATEC Half Clamp for...

400200012
  • For bracing angles
  • Cornerbrake sleeve = 41.5 mm
  • For aluminium tubes with a tube diameter of approx. 50 x 4 mm
Pris 729,00 kr.

På fjernlager

Truss Stacker Interface Eurotrussing plastic
search

Truss Stacker Interface...

38210 P

The TrussStacker system allows trussing to be easily and securely loaded onto castor boards and stacked together using notched interfaces for safe transport.

Note: the plastic variant is not suitable for 3-point truss systems.

Pris 189,00 kr.

På fjernlager

RIGGATEC Halfcoupler Slim Black up to 750 kg MKII (48 - 51 mm)
search

RIGGATEC Halfcoupler Slim...

400200073
  • For 48 - 51 mm pipe diameter
  • Resilient up to 750 kg (tensile load)
  • TUV approved (certificate can be sent on request)
  • Clamp width: 30 mm
  • Maximum shearing load: 100 kg
  • Material: Aluminum 6061 T6, black
  • Incl. device screw M12 black, retaining ring, grommet and wing nut
  • Lock screw M8 zinc coated with grommet and wing nut
  • Outer dimensions: 113 x 30 x 81 mm (length x width x height without device screw)
  • Weight: 0.48 kg
Pris 119,00 kr.

På fjernlager

RIGGATEC LD Systems Installation Kit with Half Clamp up to 250 kg (48 - 51 mm) + Mounting Accessories
search

RIGGATEC LD Systems...

400205801

For safe and certifiable installation of loudspeakers of the STINGER series incl. universal mounting accessories according to BGV C1

Installation accessories:

  • 1 pc. Half-clamp hook, up to 250 kg (48_51 mm), black, TÜV certified (RIG400200070)
  • 1 pc. M12 locknut
  • 1 pc. M8 × 35 DIN 912 Allen screw
  • 1 pc. M10 × 35 DIN 912 Allen screw
  • 1 pc. serrated lock washer for M8 cylinder-head screws
  • 1 pc. serrated lock washer for M10 cylinder-head screws
  • 1 pc. M8 × 80 eyebolt, certified according to EN 10204-3.1

Compatible with STINGER 8 G3, STINGER 8 A G3, STINGER 10 G3, STINGER 10 A G3, STINGER 12 G3, STINGER 12 A G3, STINGER 15 G3, STINGER 15 A G3, STINGER 28 G3, STINGER 28 A G3

Pris 399,00 kr.

På fjernlager

RIGGATEC Swivel Coupler Slim max. Load 750kg MKII (48 - 51 mm)
search

RIGGATEC Swivel Coupler...

400200052
  • For 48 - 51 mm pipe diameter
  • 360° turnable
  • TUV approved (certificate can be sent on request)
  • Resilient up to 750 kg (tensile load)
  • Clamp width: 30 mm
  • Maximum shearing load: 100 kg
  • Material: Aluminum 6061 T6
  • Linked with bolt
  • Lock screw M12 zinc coated with retaining ring, grommet and wing nut
  • Outer dimensions: 113 x 30 x 162 mm (length x width x height)
  • Weight: 0,89 kg
Pris 219,00 kr.

På fjernlager
