LD Systems Wireless Microphone System with Bodypack, Headset and Dynamic Handheld Microphone, 584 - 608 MHz

4.189,00 kr.
Inkl. moms
U305 HBH 2

Developed in Germany, the UHF diversity wireless systems from the U300® series deliver excellent audio performance. They achieve a range of 100 metres in ideal conditions and are available in five frequency bands: 584_608 MHz, 655_679 MHz, 823_832 MHz + 863_865 MHz, 470_490 MHz or 514_542 MHz. Up to six U300® systems can be used simultaneously in each frequency band. Convenient one-touch synchronisation via infrared ensures fast, problem-free wireless connection between the transmitter and receiver, while a squelch with pilot tone ensures disruption-free operation.

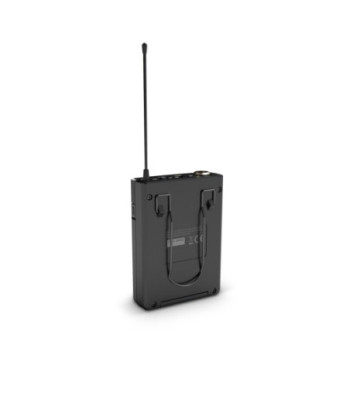

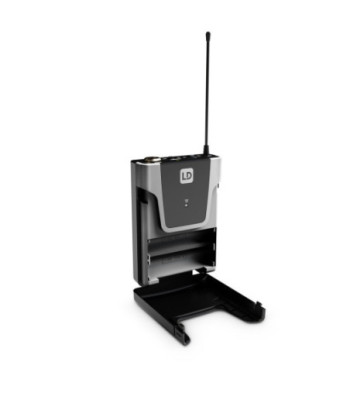

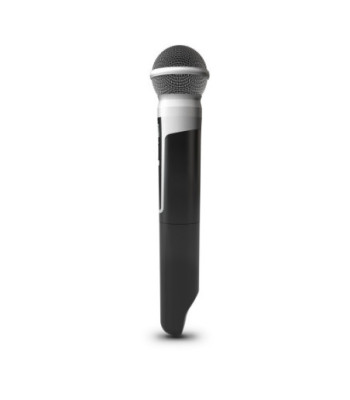

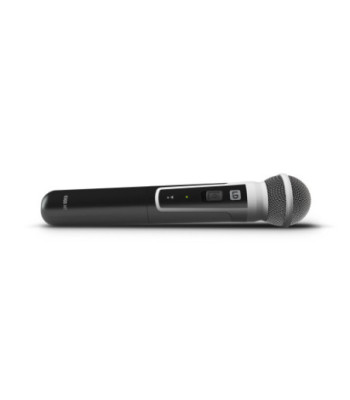

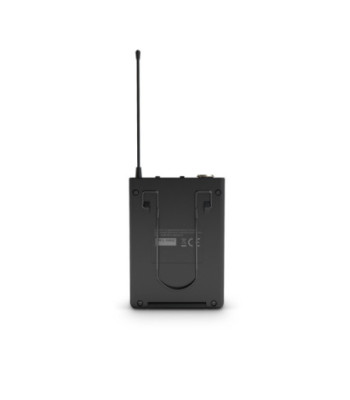

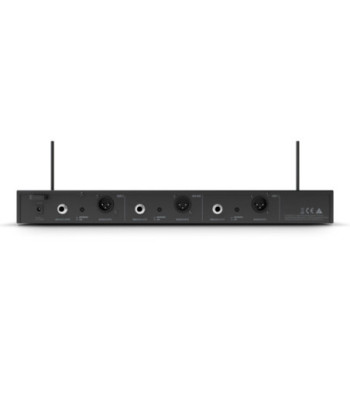

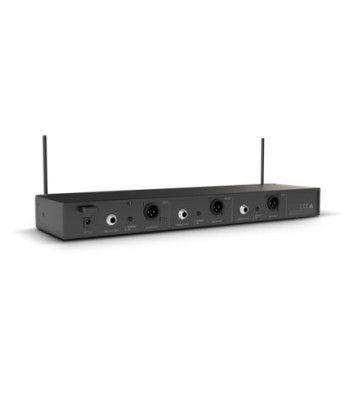

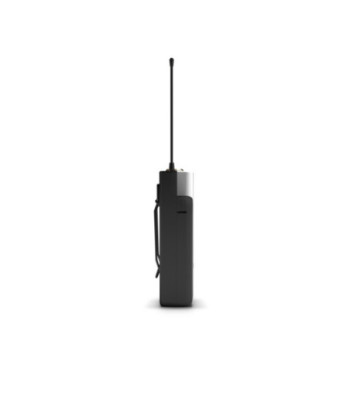

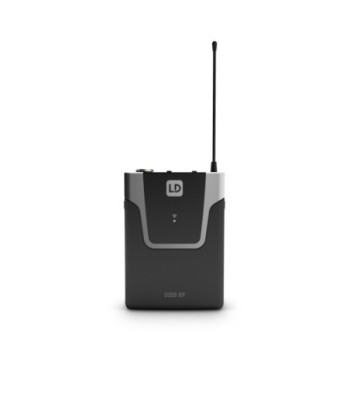

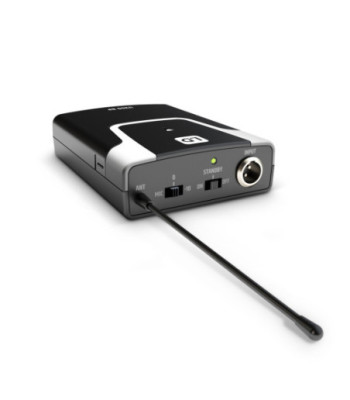

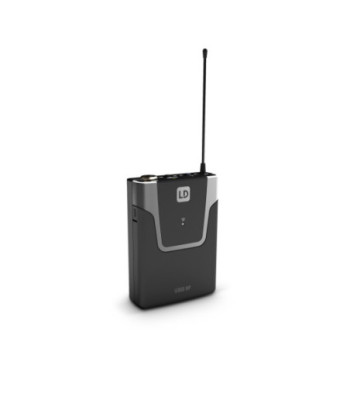

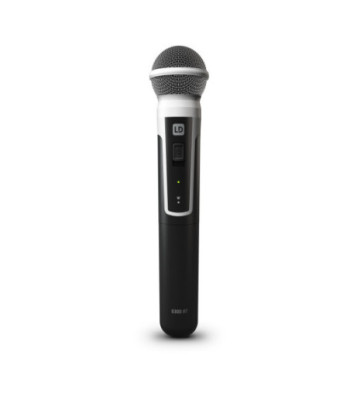

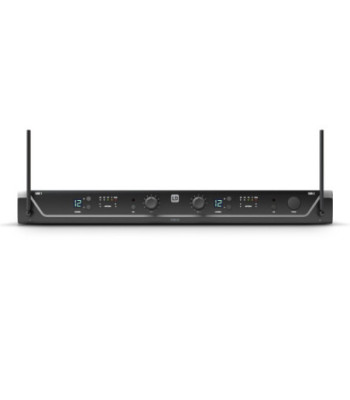

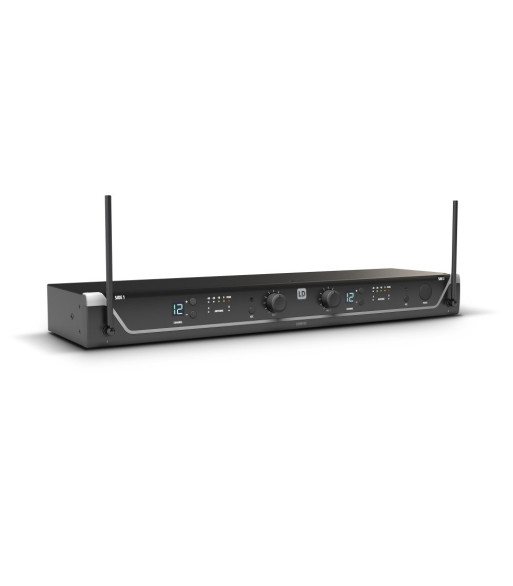

U300® transmitters have a 10 mW output and an operating time of 10 hours on two AA batteries. The handheld microphone_s frequency response ranges from 55 Hz to 16 KHz. With a lower cut-off frequency of 25 Hz, the bodypack is also suitable for transmitting 5-string bass guitars with a deep H string. The bodypack_s input level can be adjusted to both active and passive guitars and basses over three levels. The power switch features a handy standby mode for temporary muting. The U300® receiver is fitted with a bright LCD channel display, an LED chain for displaying audio signal strength and both two balanced XLR and two unbalanced 6.35 mm audio outputs. The audio output can also be switched to instrument level for directly connecting to guitar and bass amplifiers.

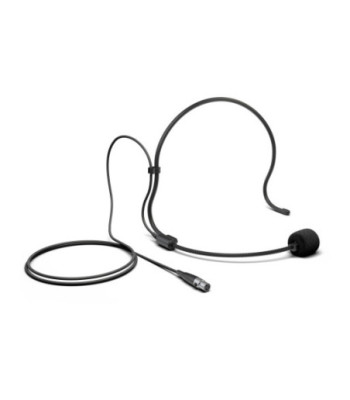

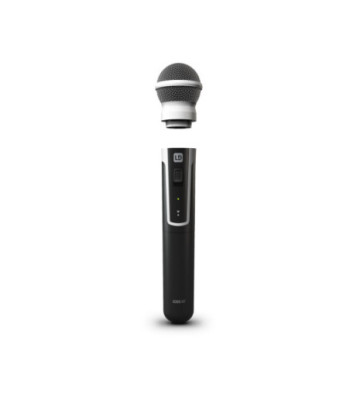

The U300® Series wireless systems have a fresh, modern look and are available with receivers and two cardioid dynamic handheld microphones (HHD2) or with two bodypacks and two headsets (BPH2). The microphone characteristic can be changed using U500®-series replaceable heads.

Antal
På fjernlager

Ref: LDU305HBH2

  • UHF diversity wireless system with FM technology
  • 12 selectable channels
  • 100 metre range under ideal conditions
  • Up to 6 systems can be used simultaneously
  • ASC infrared synchronisation between transmitter and receiver
  • Squelch with pilot tone
  • 10-hour transmitter operating time with two AA batteries
  • Receiver in sturdy metal housing
  • Rack mounting kit included

Product typeWireless Microphone System Accessories
Product typeWireless Microphone System Accessories
Product typeWireless Microphone System Accessories
Product typeWireless Microphone System Accessories
Product typeWireless Microphone Systems
TypeHeadsets
TypeMicrophones
Transmission frequency range584 - 608 MHz
TypeBodypack
TypeReceivers
TypeSet
Transmission frequency range584 - 608 MHz
Modulation TypeFM
Transmission frequency range584 - 608 MHz
Frequency response20 - 20.000
Transmission frequency range584 - 608 MHz
Channels12
Groups1
Channels12
DirectivityCardioid
Channels12
Weight1,5 kg
Groups1
Groups1
Microphone typeDynamic
InputsMini-XLR (Phantom Powered Low-Z / High-Z Instrument)
Antenna inputs2 x fixed
Nominal impedance680 Ohm(s)
Frequency response25 - 16,000
DirectivityCardioid
Frequency response55 - 16000
Signal-to-noise ratio104 dB
Frequency response35 - 16000
Noise reductionSquelch
Signal-to-noise ratio104 dB
Rated HF output power10 mW
Transmission optimizationPilot tone
Total Harmonic Distortion (THD)< 0.3 %
Signal-to-noise ratio104 dB
Rated HF output power10 mW
ControlsGain (3-way switch)
ControlsPower On/Off
ControlsPower On/Off
IndicatorsASC IR Sync (Green/Amber Blinking LED)
IndicatorsBattery (low battery: red)
IndicatorsPower LED (Power ON: green)
Audio output, balanced3 x XLR
Phantom power requierements5 V
Microphone inputMini-XLR (3-pin, female)
Audio output, unbalanced6.3 mm jack
Audio output, unbalancedswitchable unbalanced output level ( Line/Instrument )
IndicatorsASC IR Sync (Green/Amber Blinking LED)
IndicatorsBattery (low battery: red)
IndicatorsPower LED (Power ON: green)
Power supply2 x AA battery
Operating time>10 h
Power supply2 x AA battery
Audio mix output, balancedXLR
Audio mix output, unbalanced6.3 mm jack
Accessories (included)Foam windscreen
Operating time>10 h
Width65 mm
Weight0,049 kg
Max. output level+10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu
Height91 mm
Length257 mm
Diameter50 mm
Depth25 mm
Weight0,235 kg
Other featuresIR frequency synchronisation
Other featuresPilot tone
Controls2 x Volume
ControlsChannel down
ControlsChannel up
ControlsLine/Instrument Level
ControlsPower On/Off
Weight0,085 kg
Other featuresBelt clip
Other featuresIR frequency synchronisation
Other featuresPilot tone
Indicators5-LED VU-Meter
IndicatorsAntenna A/B
IndicatorsLC display
Operating voltage12 V DC, 500 mA
Width410 mm
Height43 mm
Depth120 mm
Weight1,265 kg
Accessories (included)2 x AA batteries
Accessories (included)Power supply
Other featuresIR frequency synchronisation
Other featuresPilot tone
