. LD Systems 10" active Stage Monitor .
LD Systems 10" active Stage Monitor
search
  • LD Systems 10" active Stage Monitor
  • LD Systems 10" active Stage Monitor
  • LD Systems 10" active Stage Monitor
  • LD Systems 10" active Stage Monitor

LD Systems 10" active Stage Monitor

2.979,00 kr.
Inkl. moms
MON 101 A G2LD Systems Stinger MON101AG2

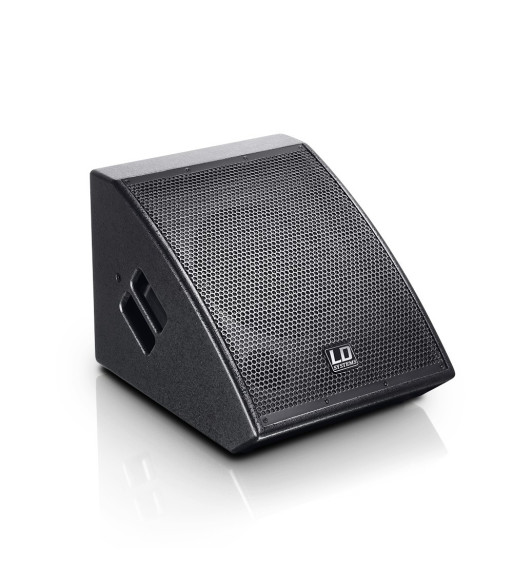

The LD Stinger MON101AG2 is an especially compact active monitor with broad frequency response and a maximum sound-level pressure of 121dB for versatile use on stage.

The 10" coaxial speaker with an integral 1" HF driver attains a dispersion angle of 75°x75°, which is beneficial in multifaceted applications as a stage monitor. The coaxial configuration results in a very homogenous sound in the entire dispersion area plus very low susceptibility to feedback. The active monitor is driven by a Class AB power amplifier with an output of 600W Peak. Short-circuit protection and a limiter ensure dependable operation.

The rear connector panel offers an XLR-jack combo input and XLR output for looping through the signal; other features include a volume control, IEC power socket and switch, and LED indicators for power, signal, and limiter.

The elegant bass-reflex housing made of 15mm multiplex is finished with a durable coating and has ergonomically milled handles and a metal grille to protect the speaker. The monitor angle is 35°.

Antal
På fjernlager

Ref: LDMON101AG2

Product typePA loudspeaker
TypePowered
Low/mid Woofer dimensions10 "
Woofer dimensions (mm)254 mm
Woofer typeCoaxial loudspeaker
Woofer magnetFerrite
Woofer brandCustom-made
Woofer voice coil2 "
Woofer voice coil (mm)50.8 mm
HF driver dimensions1 "
HF driver dimention (mm)25.4 mm
HF driver magnetFerrite
HF driver brandCustom-made
HF driver voice coil1 "
HF driver voice coil25.4 mm
AmplifierClass A/B
Dispersion (H x V)75 x 75 °
System Power (RMS)150 W
Peak power600 W
Frequency response90 - 20000
Crossover frequency3300 Hz
SPL (1W/1m)99 dB
Max. SPL (continuous)113 dB
Max. SPL (Peak)121 dB
Protection circuitslimiter
Protection circuitsShort circuit
ControlsOn / Off
Controlsvolume
IndicatorsLimit
IndicatorsPower
IndicatorsSignal
Line Inputs1
Line input connectors6.3 mm jack
Line input connectorsXLR
Line Outputs1
Line output connectorsXLR
Power supplytransformer
Operating voltage230 V AC / 50-60 Hz
Cabinet material15 mm Plywood
Cabinet constructionBass Reflex
Monitor angle35 °
Width380 mm
Depth335 mm
Height466 mm
Weight15,3 kg
Featuresergonomically shaped insert handles
LD Systems
LDMON101AG2
