. Faital Pro 12" Coaxial Neodymium Loudspeaker 250 W 8 Ohms .

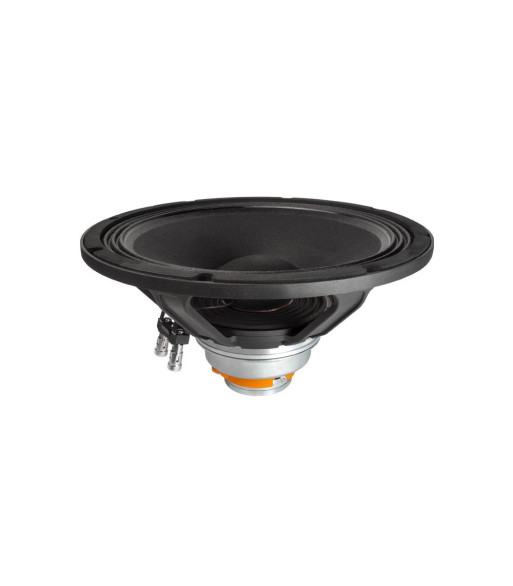

Faital Pro 12" Coaxial Neodymium Loudspeaker 250 W 8 Ohms
search
  • Faital Pro 12" Coaxial Neodymium Loudspeaker 250 W 8 Ohms

Faital Pro 12" Coaxial Neodymium Loudspeaker 250 W 8 Ohms

4.949,00 kr.
Inkl. moms
12 HX 240 A

12" Coaxial Neodym Loudspreaker 250 W 8 Ohms

Antal
På fjernlager

Ref: FP12HX240A

Product typeLoudspeaker Chassis
TypePA
Loudspeaker dimensions12 "
Loudspeaker dimensions (mm)300 mm
Overall diameter316 mm
Pitch Circle Diameter298.5 mm
Cut- out Measurement280 mm
Mounting holes4
Diameter of fixing holes5.2 mm
Total depth162 mm
Weight4,3 kg
Nominal impedance8 Ohm(s)
RMS500 W
Sensitivity (1 W / 1 m)97 dB
Frequency response55 - 5000 Hz

Woofer characteristics

Woofer voice coil2.56 "
Woofer voice coil (mm)65 mm
Voice Coil Material WooferAluminium
Woofer magnetNeodymium
Magnetic gap depth Woofer8 mm

Thiele & Small Parameter

Fs (Resonance Frequency)56 Hz
Re (DC resistance)5.5 Ohm(s)
Qms (mechanical quality)8.14
Le (inductance of the voice coil)0.54 mH
Qes (electrical quality)0.41
Qts (overall quality)0.39
Vas (equivalent volume)68.4 l
Mms (moving mass)47.9 g
BL (power factor)15.2 T/m
Xmax (maximum displacement)7.37 mm
Cms (elasticity of the suspension)0.17 mm/N
Sd (membrane area)539 cm²
Rms (mechanical loss resistance)2.1 kg/s

HF Driver characteristics

HF driver voice coil1.46 "
HF driver voice coil37 mm
Nominal Impedance HF driver8 Ohm(s)
Nominal Load HF driver30 W
Maximum Load HF driver60 W
Sensitivity HF driver (1 W / 1 m)107 dB
Frequency range HF driver1500 - 20000 Hz
Voice Coil Carrier HF driverKapton
Diaphragm material HF driverKetone Polymer
HF driver magnetNeodymium
Faital Pro
FP12HX240A
