Palmer Splitter for Guitars

1.299,00 kr.
Inkl. moms
GA 03

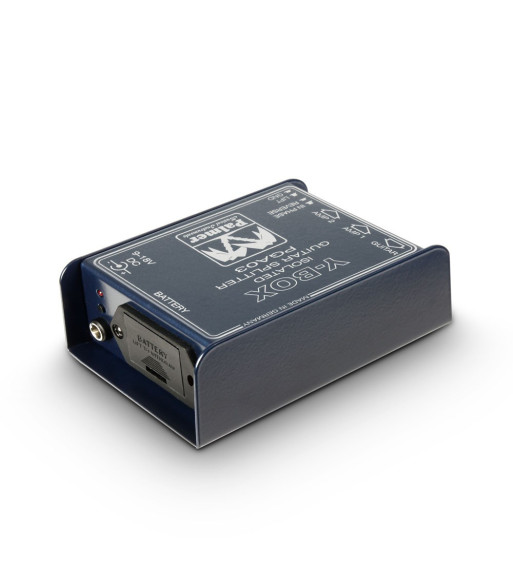

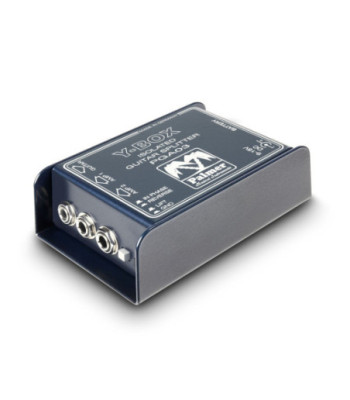

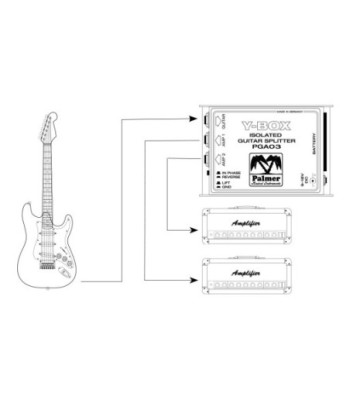

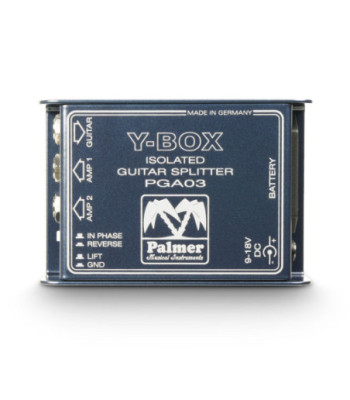

"When I run my guitar into two amps simultaneously, I always get a loud hum". This is a rather common problem, often discussed in the technology section of relevant industry magazines. The Palmer Y box is the solution. Converting the hi-Z guitar signal, the FET input circuitry also drives a transformer which routes the ungrounded signal to the output to eliminate ground loop hum. 9V battery operation is recommended.

The PGA03 Y-box can also be used as a line driver for long cable runs. Also, the PGA03 features a phase reverse switch for the AMP 2 output when using pre-amps or amps that are out of phase.

Antal
På fjernlager

Ref: PGA03

Product typeSplitters
Split type1 in 2
Inputs1

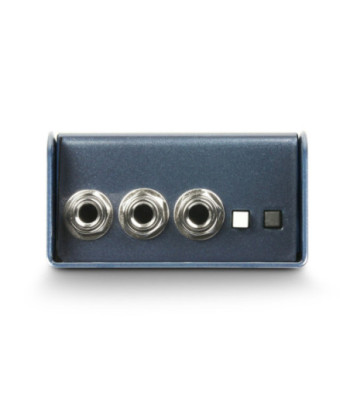

Input connectors6.3 mm jack
Adjustable inputNo
Number of split-outputs per canal1
Output connectors6.3 mm jack
THRU outputs/channel1
Transformer isolated outputsYes
Adjustable outputNo
Controlsground lift
Controlsphase
IndicatorsPower

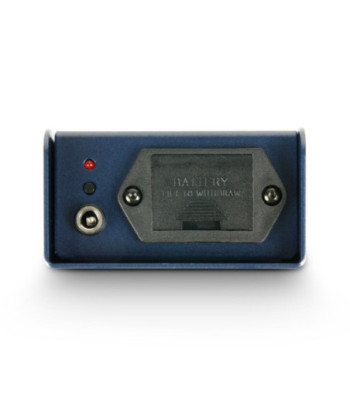

Power supply9 V block
Power supply9 V DC power supply
Width125 mm
Depth80 mm
Height45 mm
Cabinet materialsheet steel
Cabinet surfacePowder coated
Weight0,528 kg
Palmer
PGA03

Specifikke referencer

6 andre varer i den samme kategori:

Palmer Switching System 2 Guitar Amplifiers to 1 Cabinet with Remote Input
search

Palmer Switching System 2...

TINO SYSTEMThe Palmer TINO SYSTEM - The clever solution for switching two amps to 1 cabinet

Ambitious guitarists often use two amplifiers in order to obtain different basic sounds. However, transport, space restrictions and the decrease in output associated with PA speakers can be very inconvenient. This is where TINO S promises to help. The switcher system allows you to use two amplifiers with only one box as an alternative. Regardless of whether you use tube amplifiers that require getting a load, or transistor models. Even a mixed combination is possible without any problems.

The switch-over between the amplifiers can be operated via a pressure switch on the device or via an optional standard foot switch or switching system. If the switch cannot be done with a switching system, a standard foot switch can be connected to the corresponding 6.3 mm jack. (Requires a switch, not push-buttons!)

TINOS routes the guitar signal to the chosen amplifier, while the second unused amplifier is turned off to prevent unwanted interference. (As if the potentiometer on the guitar was switched off). The gain from the instrument input to output is one (Unity Gain). The built-in buffer only converts the impedance, so that a high-impedance guitar becomes less prone to interference. When the guitar signal is switched, the speaker is switched simultaneously, while the speaker output from the mute amplifier is connected to a load (Dummy Load). Therefore, tube amplifiers are absolutely safe from dangerous idling.

If you connect two amplifiers with one another, a heavy buzzing sound often overlays the guitar signal. This undesirable effect is known as ground loop and occurs between mains-operated devices because of double grounding. The TWO IN ONE prevents this from happening by decoupling the outputs to the amplifiers using high-quality isolating repeaters.A smooth switching between the amplifiers also ensures that the process takes place without crackling in the loudspeaker. The power supply is provided via the supplied 9V power adapter.

Pris 3.109,00 kr.

På fjernlager

Palmer Passive Cabinet Merger
search

Palmer Passive Cabinet Merger

CAB M

The concept behind Palmer's Cab Merger may be very simple, but the unit fills an important gap! Have you ever wanted to connect two guitar cabinets to just one amplifier output? It's quite simple with the PCABM!

In addition, you can choose parallel or series wiring. For instance, two 8 ohm cabinets can be connected for a total load of 4 ohms (parallel) or 16 ohms (in series). The device is entirely passive and does not affect tone in any way.

Pris 359,00 kr.

På fjernlager

Palmer Balanced Line Output Switch
search

Palmer Balanced Line Output...

ABO

Palmer PEABO is a Balanced Line Output Switch with one input and two outputs. Thus, it is the perfect choice for routing a signal to either one of two possible inputs.

Switch your vocal mic between the FOH and monitor mixing desk to communicate with the monitor mixer or the band on stage.

Two different sound configurations: to switch between different effects or sounds on your microphone, e.g. a "telephone effect" or more levels of reverb. Run the outputs of the PEABO into two channels of the mixing desk, that you can configure differently. Now you can freely toggle between them on-stage at any time.

You can also use the PEABO to route the signal to two rooms or zones and select either one.

Switching is controlled by a sturdy foot switch; the selected output is indicated by a red LED. Slide switches select 15 dB of attenuation for output A and 6, 15 or 21 dB for output B. A ground lift switch eliminates earth loop hum. The PEABO is housed in a solid metal case with extended edges for optimum protection of the input and outputs. Pre-drilled holes permit simple and secure mounting in a rack or on a pedalboard.

The PEABO's circuitry is all-passive. A 9V block battery is required to power the LED.

Pris 779,00 kr.

På fjernlager

Palmer Nano Mixer for Guitars and Line Signals
search

Palmer Nano Mixer for...

DUETTO

The Palmer DUETTO is a small format active mixer. Input sensitivity and impedance are optimised for electric guitar applications but the unit also works well with other instruments and devices with line level signals.

The DUETTO allows two active sources to be mixed to a single amplifier input. Each input has a volume controller for level adjustment. The DUETTO is typically used when guitar teachers want to practise with their students through a single input amp. The DUETTO is however very versatile and can also be used, for example, as cable driver, mono merger and recording preamp.

Due to its low power consumption, the DUETTO can be powered by a 9V battery permitting extended operation. A DC input is provided for use with a power adapter.

Pris 889,00 kr.

På fjernlager

Palmer Balanced Line Input Switcher
search

Palmer Balanced Line Input...

ABI

The Palmer PEABI is more than a simple switcher for two sources, it also provides level adjustment of microphone or line signals. Whether microphone or line signal, the PEABI toggles silently between the two inputs permitting fast and simple signal comparison and the connection of two sources to one input. Three slide switches select 15 dB of attenuation for input A and 6, 15 or 21 dB for input B. A ground lift switch eliminates earth loop hum. The PEABI is housed in a solid metal case with extended edges for optimum protection of the inputs and output. A red LED clearly indicates which input is active.

Pre-drilled holes permit simple and secure mounting in a rack or on a pedalboard.

The PEABI's circuitry is all-passive. A 9 V block battery is required to power the LED.

Pris 789,00 kr.

På fjernlager

Palmer 24-Channel Loudspeaker Switching System
search

Palmer 24-Channel...

Grand Audition MKIIWhen tasting wine, it is important that a comparison is as neutral as possible. The same applies to selecting loudspeakers.To accurately judge sound characteristics, it is essential to listen to different loudspeakers under the same conditions.

Comfortable loudspeaker routing with variable level control for an uncompromising comparison on the sales floor, along with multi-monitor and multi-room applications, are just some of the ways the GrandAudition MK2 can be effectively put to use.

GrandAudition MKII lets you connect 16 individual loudspeakers or eight loudspeaker pairs and up to eight subwoofers - all with balanced line-level XLR connectors and housed in two 19" rack units. Depending on how you want to use GrandAudition MK2, the outputs can be selected either individually or as stereo pairs via an intuitive browser-based app or from the unit itself.

Thereby you can choose to just switch between loudspeakers or freely configure any output combination you want, making it not only the ideal solution for a loudspeaker presentation, but also an excellent choice as a central-control-unit for trade fairs, in laboratories and for multi-room sound distribution.

Source material is supplied from a mixer, CD player or digital audio workstation through two balanced XLR inputs - with volume control, of course. But that's not all. GrandAudition MKII is also equipped with a built-in USB media player on which reference titles can be accessed in WAV, AIF, FLAC, MP3 and OGG data formats.

Highlight of GrandAudition MKII

The browser-based remote can be controlled on a tablet or laptop, offering maximum operating convenience. Ethernet and WLAN-capable devices can be used for complete configuration and control of the unit, including channel naming, media player, and other practical functions.

The ability to individually adjust the level for each output and its quick and noiseless switching mechanism, makes it possible to accurately compare loudspeakers and help you reliably guide your customers to select the right loudspeaker. Routing applications that use different levels for each output can also be set up, and a fully analogue signal path with the highest quality is also of course guaranteed with Palmer.

If necessary, you can cascade units to triple the impressive number of 16 channels plus 8 outputs and thus manage even the largest routing scenarios for monitors, such as in presentation areas. You can also use the subwoofer outputs to connect additional loudspeakers without experiencing any technical drawbacks.

In addition to powered loudspeakers, passive loudspeakers can be incorporated with power amps. Signals can also be distributed over multiple line outputs for other applications, for example, by connecting as many as 24 headphone amplifiers to one source signal - an invaluable aid in conference technology and at trade fairs. And to top it all off, Grand Audition MKII performs remarkably well in measuring laboratories.

In short, GrandAudition MKII, with its clearly arranged features and ease of use, offers comfortable loudspeaker routing with professional sound neutrality.

Pris 9.909,00 kr.

På fjernlager
