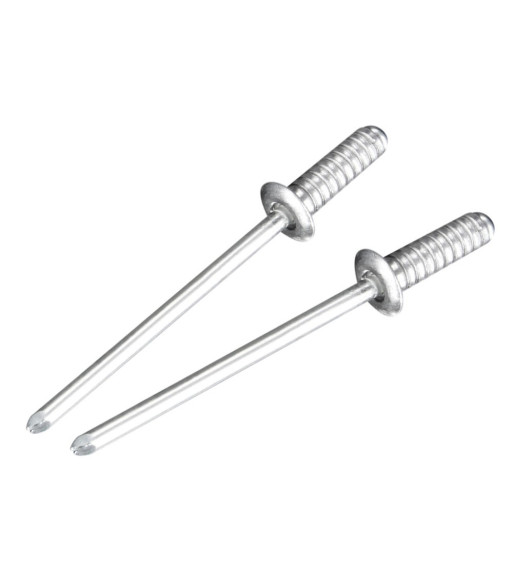

Bralo Grooved blind rivet made of aluminium / steel 3.2 x10 mm - 500 stk.
search
  • Bralo Grooved blind rivet made of aluminium / steel 3.2 x10 mm - 500 stk.
  • Bralo Grooved blind rivet made of aluminium / steel 3.2 x10 mm - 500 stk.

Bralo Grooved blind rivet made of aluminium / steel 3.2 x10 mm - 500 stk.

209,00 kr.
Inkl. moms
5596

Durable and secure fixing element made of aluminium alloy, particularly suitable for blind holes.

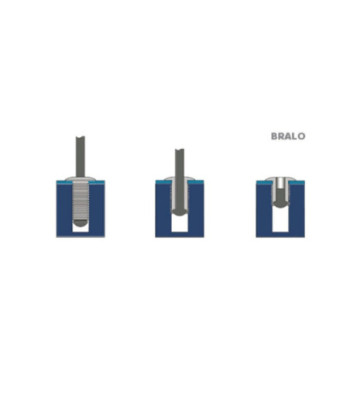

The grooved rivet from Bralo provides a secure and effective method for fixing metal to soft and fibrous surfaces. This rivet connection does not require a through-drill hole. The expansion of the rivet within the material forms a kind of "clamp", which creates a robust connection with the drill hole. A break mandrel blind rivet is also often used in furniture manufacturing and the construction industry to securely attach metal fittings to the carcass.

The grooved rivet from Bralo provides a consistent, high quality and long-lasting fixing that is extremely resistant to corrosion, vibration and expansion. The blind rivet is a fixing system used to connect two parts of the same or different materials, of which, however, only one side needs to be accessible. BRALO blind rivets provide a robust and secure solution for numerous requirements. They have been designed to fulfil the highest quality standards and to be resistant to demanding ambient conditions. Other rivet versions for individual applications and requirements are available in the shop.

Antal
På fjernlager

Ref: 5596

  • Single-sided application (blind rivet principle)
  • Secure connection in blind holes
  • Numerous grooves provide the right grip
  • Facilitates connection of different materials (including pressed materials, wood, concrete)
  • No surface damage after riveting
  • Good resistance to temperature fluctuations
  • No loosening due to dynamic influences (vibration-resistant) and [---] very high tensile strength
  • High quality, simple and quick installation
  • Ecological riveting process: no smoke, steam or sparks
  • Simple and quick handling

Product typeFittings
TypeRivets
Rivet diameter3.2 mm
Rivet length10 mm
Head diameter6.5 mm
Head height0.8 mm
Mandrel diameter1.8 mm
Clamping width6 mm
Load capacity (sheering strain)600 N
Tensile load800 N
Rivet materialAluminium
Rivet alloyAIMg 3.5
Mandrel materialSteel
Mandrel surfacegalvanized
Weight0,0011495 kg
