. Neutrik Neutrik powerCON® white PowerOut Large .

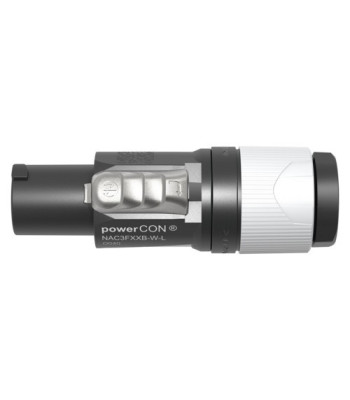

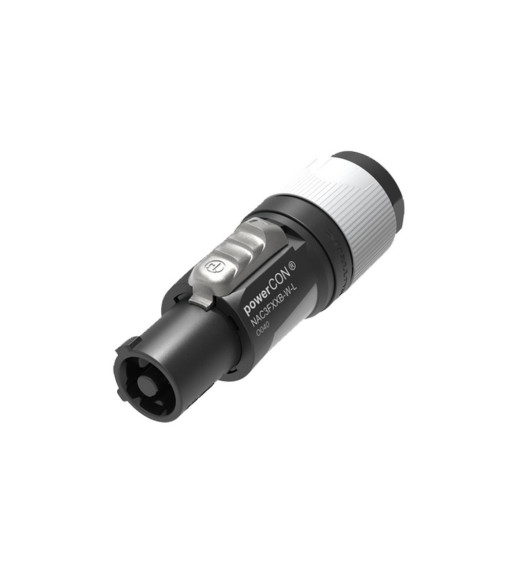

Neutrik Neutrik powerCON® white PowerOut Large
search
  • Neutrik Neutrik powerCON® white PowerOut Large
  • Neutrik Neutrik powerCON® white PowerOut Large

Neutrik Neutrik powerCON® white PowerOut Large

99,00 kr.
Inkl. moms
NAC3FXXB-W-L

Locking AC mains cable connector, keyed and color coded (grey) for power-out, screw terminal assembly, for cable diameters 10 - 16 mm.

The powerCON FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles.

It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.

Antal
På fjernlager

Ref: NAC3FXXBWL

  • IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1
  • Power-in (blue) and power-out (grey) versions with di?erent keying to avoid the possibility of intermating
  • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
  • Easy and reliable twist lock system
  • Ergonomic design with slip-proof two-component molded housing
  • Unique NEUTRIK locking bushing and strain relief for cable diameters 10 mm to 16 mm
  • Superior NEUTRIK quality standard, extremely robust and reliable
  • Improved kink protection by two-component bushing

Product typePlugs and Connectors
Poles3
Gendermale
Cable diameter10 - 16 mm
Contactscopper
Housingpolyamide
Weight0,044 kg
NEUTRIK
NAC3FXXBWL
