Palmer Phantom Power Supply 2 Channel
search
  • Palmer Phantom Power Supply 2 Channel
  • Palmer Phantom Power Supply 2 Channel

Palmer Phantom Power Supply 2 Channel

1.789,00 kr.
Inkl. moms
PAN 48

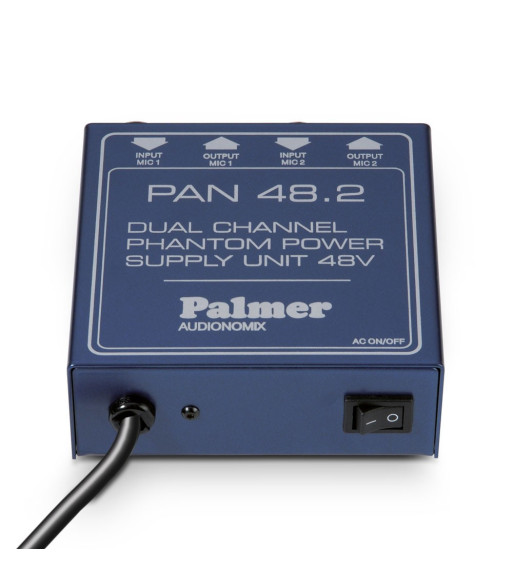

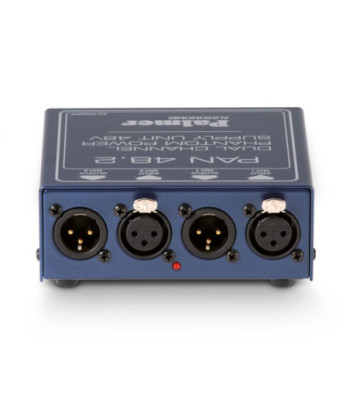

Palmer Pan 48 is a unit for the external power supply of phantom powered appliances. Due to the high current level of a maximum of 20mA, the application is not just limited to condenser microphones. PAN 48 is excellent for supplying phantom powered active DI-boxes. The box has two channels. Specifications: 2 channels, each channel: Microphone input: XLR/f Pin 2 & 3 +48VDC, Pin 1 Ground Output: XLR/m no DC voltage Ground lift switch Phantom power stabilized ±5%. Low ripple, low noise Max. current 20mA totally. LED control. Metal casing

Antal
På fjernlager

Ref: PAN48

Product typeMicrophone Accessories
Type48 V
Input connectorXLR (3-pin)
Gender of input connectorfemale
Output connectorXLR (3-pin)
Gender of output connectormale
MaterialMetal
Power supplyfixed power cord
Operating voltage90 V AC - 240 V AC, 50 - 60 Hz
Controlsmains switch (on/off)
ControlsSwitches
IndicatorsPower
Width120 mm
Height115 mm
Depth45 mm
Weight0,68 kg
Accessories (included)Power supply
Palmer
PAN48
