LD Systems Ultra-Portable Column PA System with Mixer and Bluetooth

4.939,00 kr.
Inkl. moms
MAUI 5

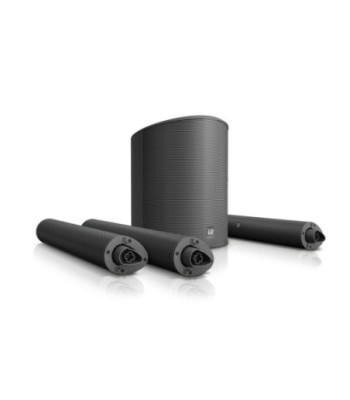

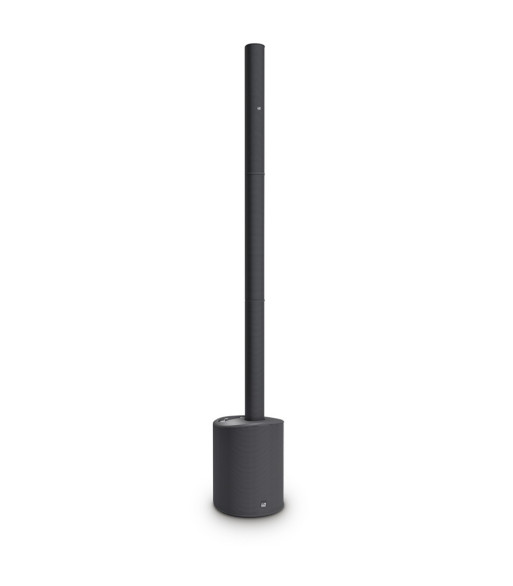

The MAUI 5 is an ultra-compact PA and monitor system in one that comes in at just under 11 kg to supply 800 watts peak performance and a maximum sound pressure of 120 dB. The smallest member of the MAUI family is assembled in a matter of seconds thanks to specially developed multi-pin connectors and only four components. It also boasts extensive sound dispersion and high feedback resistance. The MAUI 5 is easy to carry and fits on any car seat.

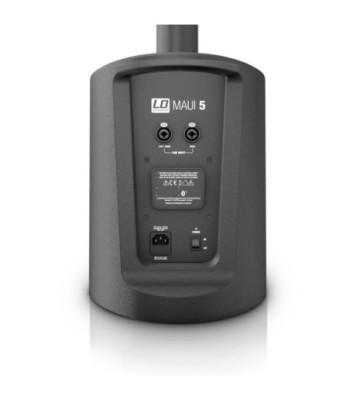

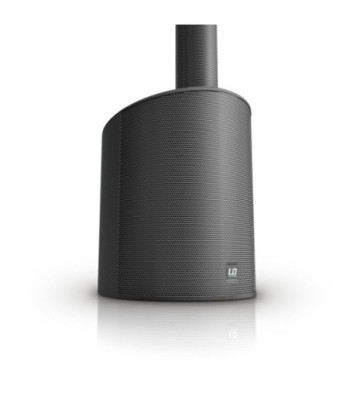

The bass reflex cabinet of the 8" subwoofer base also houses the system_s class-D amplifier unit with protection circuits against overcurrent, overheating and short-circuiting, LD Systems LECC digital signal processing, and a 4-channel mixer. Thanks to built-in Bluetooth© technology for wireless streaming alongside use of the microphone, line and high-impedance inputs, a wide variety of sound sources can be connected to the MAUI 5, including playback devices and instruments, such as keyboards or guitars. Separate level controllers, subwoofer and system volume controllers, and a high-shelf filter for adjusting treble to room acoustics ensure perfectly tuned performances. The MAUI 5 is also available in white (LDMAUI5W).

Antal
På fjernlager

Ref: LDMAUI5

  • Ultra-compact column PA
  • PA and Monitor System in one
  • 800 watts peak power
  • Extensive and wide sound dispersion
  • LECC digital signal processing for controlled, dynamic operation
  • Integrated 4-channel mixer with Bluetooth
  • Wide range of connection options
  • Wireless assembly within seconds
  • Extremely easy to transport

Weight11,3 kg
Product typePA Complete Systems
ColorBlack
Max. SPL (continuous)114 dB
Max. SPL (Peak)120 dB
Frequency response50 - 20000
Dispersion (H x V)120° x 20 °
Overall height1985 mm
Other features4 channel mixer
Other featuresBluetooth
Other featuresDSP-based signal processing

Woofer characteristics

Low/mid Woofer dimensions8 "
Woofer dimensions (mm)203.2 mm
Woofer magnetFerrite
Woofer brandCustom-made
Woofer voice coil2 "
Woofer voice coil (mm)50.8 mm
Cabinet constructionBass Reflex
Cabinet materialABS plastic
Subwoofer width305 mm
Subwoofer height405 mm
Subwoofer depth395 mm

Mid/Hi System

Midrange dimensions4 x 3 "
Midrange dimensions (mm)4 x 76.2 mm
Midrange magnetNeodymium
Midrange brandCustom-made
Midrange voice coil1 "
Midrange voice coil25.4 mm
Mid/Hi system impedance4 Ohm(s)
Loudspeaker inputs1
Speaker input connectionsCustom-made multipin
Cabinet construction mid/highClosed
Mid/Hi system cabinet materialABS plastic
Mid/Hi system width82 mm
Mid/Hi system height535 mm
Mid/Hi system depth105 mm

Amplifier module (integrated in subwoofer)

AmplifierClass D
Amplifier output system (RMS)200 W
Amplifier output system (peak)800 W
Protection circuitsDSP-based multiband limiter
Protection circuitsover-current
Protection circuitsShort circuit
Protection circuitsthermal overload
CoolingConvection

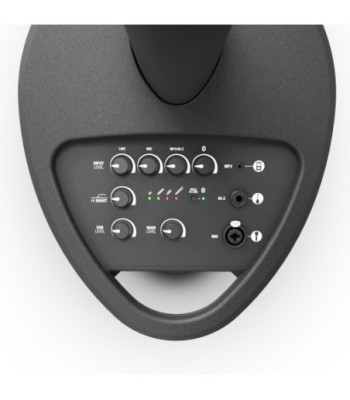

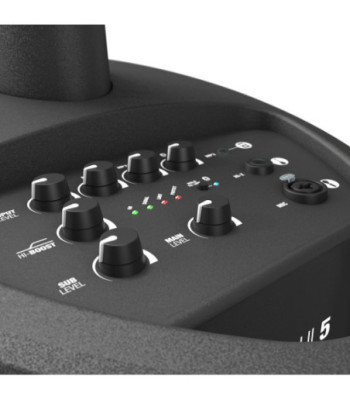

ControlsBT level
ControlsBT pairing
Controlslimiter
ControlsLine level
ControlsMain level
ControlsMic level
ControlsMP3 / Hi-Z level
ControlsOn
ControlsProtect (protection circuit engaged)
ControlsSignal
ControlsSub level
IndicatorsLimit
IndicatorsOn
IndicatorsProtect (protection circuit engaged)
IndicatorsSignal
Power supplySwitching power supply
Operating voltage100 V AC - 120 V AC, 50 - 60 Hz
Operating voltage200 V AC - 240 V AC, 50 - 60 Hz (Automatic conversion)
Line inputs2 x stereo
Line input connectors6.3 mm jack
Line input connectorsXLR
Mic inputs1
Mic inputs6.3 mm jack
Mic inputsXLR
MP3 inputs1
MP3 input connectors3.5 mm jack
Hi-Z inputs1
Hi-Z input connectors6.3 mm jack
Loudspeaker outputs1
Speaker output connectionsCustom-made multipin

DSP characteristics

Bit depth AD/DA converter24 / 24 bit
Internal sampling frequency48 kHz
