LD Systems 2-Way Passive 8_ Bass Reflex PA Loudspeaker

2.799,00 kr.
Inkl. moms
STINGER 8 G3

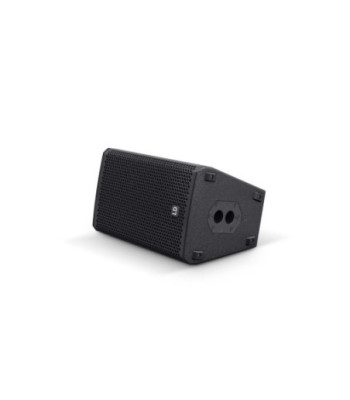

This highly professional 2-way loudspeaker is designed for absolute, long-term reliability. With its multifunctional bass reflex cabinet as a full range speaker, satellite and ground monitor, it is suited to mobile and fixed PA systems. The STINGER® 8 G3 provides 250 watts of continuous power; the maximum sound pressure level is 118 dB. Its specially developed 8" woofer and the BMS HF driver achieve a powerful bass reproduction and fresh natural highs. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves a controlled and homogeneous dispersion. The STINGER® 8 G3 is designed as a real all-round workhorse. The cabinet is made from robust birch plywood and offers exceptional stability and durability thanks to its extremely durable polyurea coating. The features include a steel grille, a Dual-Tilt stand attachment, flight points and ergonomic handles. The STINGER® 8 G3 is an affordable solution for professional PA applications; extensive accessories support use on stage and in fixed installations.

Antal
På fjernlager

Ref: LDEB82G3

  • 2-way passive 8_ bass reflex PA speaker
  • 250 watts RMS power handling
  • 119 dB maximum SPL
  • 8_ custom woofer and BMS compression driver
  • BEM optimized HF waveguide for uniform coverage
  • Birch ply cabinet with ultra rugged polyurea finish and M10 suspension points
  • Shock-resistant front grill provides maximum speaker protection

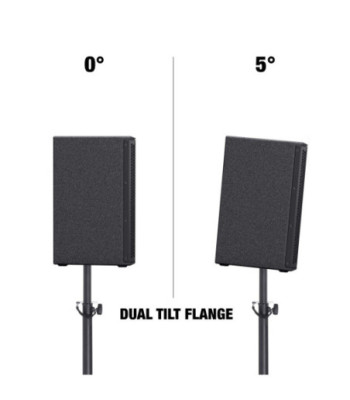

  • 36 mm Dual-Tilt pole receptacle for 0° or 5° mounting angles
  • Large selection of smart installation and transport accessories

Product typePA loudspeaker
TypePassive
Low/mid Woofer dimensions8 "
Woofer dimensions (mm)203.2 mm
Woofer magnetFerrite
Woofer brandCustom-made
Woofer voice coil2 "
Woofer voice coil (mm)50.8 mm
HornBEM optimized CD Horn
HF driver dimensions1 "
HF driver dimention (mm)25.4 mm
HF driver magnetFerrite
HF driver brandBMS
HF driver voice coil1 "
HF driver voice coil25.4 mm
Dispersion (H x V)90 x 50 °
Load rating (RMS)250 W
Peak power500 W
Frequency response70 - 20000
SPL (1W/1m)95 dB
Max. SPL119 dB
Impedance8 Ohm(s)
Protection circuitsHF Driver
Loudspeaker inputs1

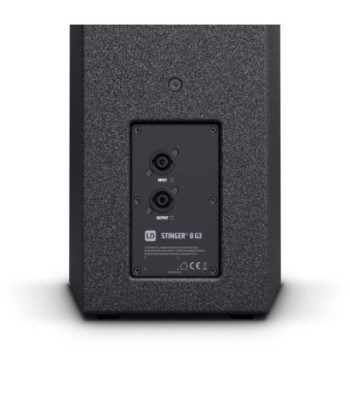

Speaker input connectionsSpeakon compatible
Loudspeaker outputs1
Speaker output connectionsSpeakon compatible
Speakers per amplifier channel (DSP44/45K)4
Cabinet material12 mm Plywood
Cabinet surfacePolyurea
Cabinet constructionBass Reflex
Width270 mm
Height457 mm
Depth290 mm
Featuresergonomically shaped insert handles

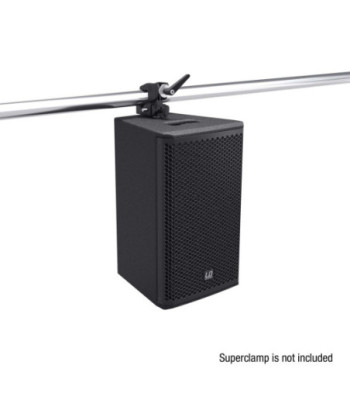

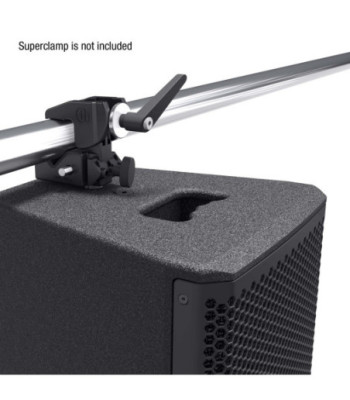

FeaturesM10 Thread for SuperClamp
Weight9,9 kg
LD Systems
LDEB82G3
