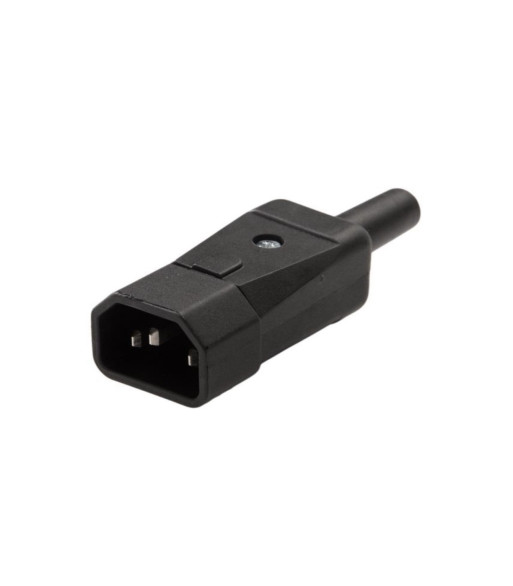

IECC Power Plug male

79,00 kr.
Inkl. moms
3 STAR C PC14

Rewireable, for supply line H05RR-F or H05VV-F 3G0,75 mm² to 3G1,0 mm², for lengths over 2 meters minimum 3G1,0 mm²

Antal
På fjernlager

Ref: 8102C

Product typePlugs and Connectors
TypePower Connectors
Poles3
ConnectorsScrew terminals
ContactsCuZn39
Gendermale
Max. current6 A
Rated Voltage250 V
Nominal Impedance10 A
Cabinet materialPlastic
Cabinet constructionDIN EN 60320-1
Cabinet constructionDIN EN 60320-3
ColorBlack

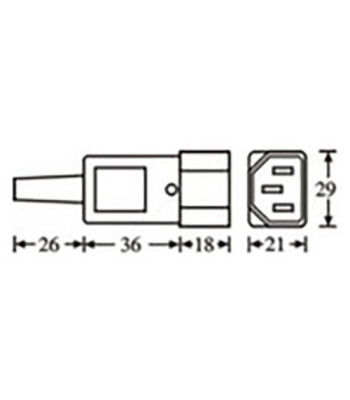

Height21 mm
Width28.5 mm
Depth85 mm
Ambient temperature (operating)-5 - 40 °C
Protection class IPIP20
Weight0,025 kg
Adam Hall Connectors
8102C
