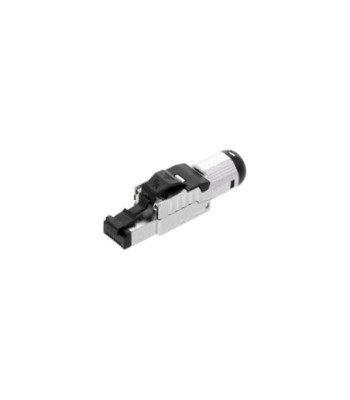

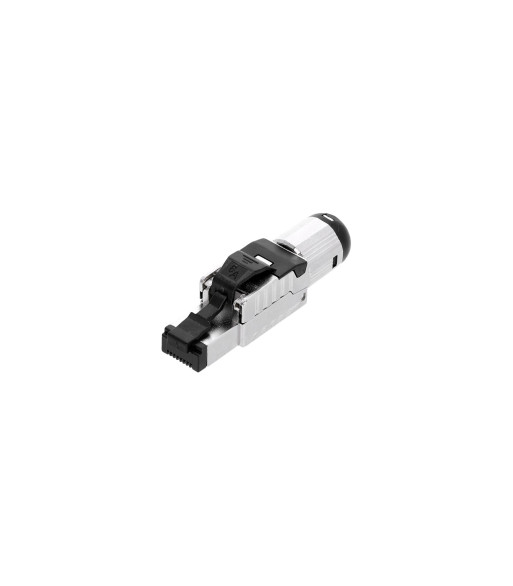

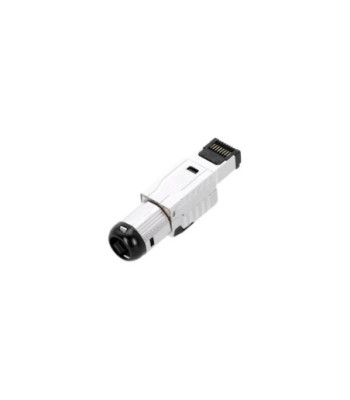

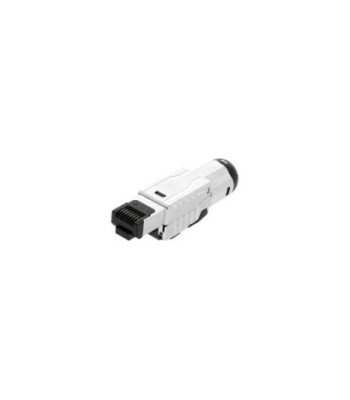

Network plug - Cat.6a

119,00 kr.
Inkl. moms
4 STAR C CAT6

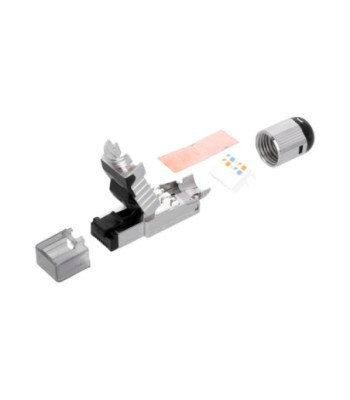

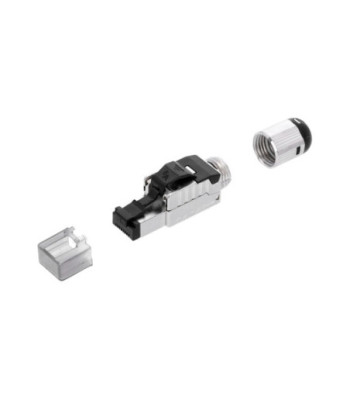

  • Professional Cat.6a connector with screwable grommet
  • Fully shielded against electrical interference thanks to metal housing and integrated copper fleece
  • Contacts coated with 50µm gold
  • For cable diameters from 7 - 8.5 mm
  • IDC clamp for perfect fixation of the individual wires in the connector
  • with IP20 protection cap
Antal
På fjernlager

Ref: K4CCAT6

Product typePlugs and Connectors
TypeOther Plugs and Connectors
applicationRJ45 Cat.6a
Gendermale
ContactsBronze
Contacts Coating50µm Gold
HousingDie casting zinc alloy
Conductor diameter1.2 - 1,65 mm
Cable diameter7 - 8,5 mm
Width14 mm
Height14 mm
Depth55.9 mm
Weight0,0235 kg
Adam Hall Connectors
K4CCAT6
